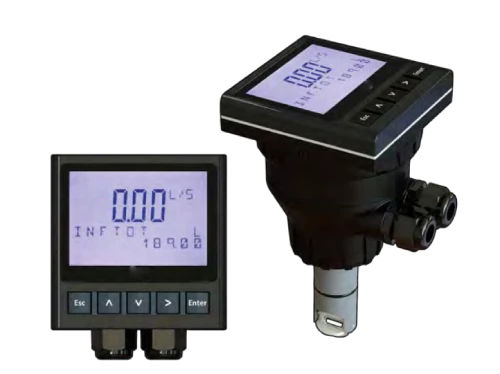

2-Wires Flow Monitor & Transmitter – FLS M9.00
The new FLS M9.00 is a powerful flow monitor and transmitter based on 2-wire technology designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.00 is equipped with a wide 4” display which shows measured values clearly. Moreover, the standard backlight improves further the display visibility.
The first procedure will grant an easy set up of main parameters. A flow rate reference can be used for a recalibration or alignment through a intuitive “in-line calibration”.
A 2 wires 4–20mA output combined with a solid state relay allow to remote instant flow rate as well as an alarm. M9.00 is equipped with a USB port which allows easy updating of instrument software by customer.
2-Wires Flow Monitor & Transmitter – FLS M9.00
Key Features Of 2-Wires Flow Monitor & Transmitter – FLS M9.00
- Wide display
- Bright backlight
- Installation flexibility
- Solid State Relays for programmable alarms
- Multilanguage menu
- USB port for software updating
Technical Details of 2-Wires Flow Monitor & Transmitter – FLS M9.00
| Feature | Details |
|---|---|
| Compatible Sensors | FLS Hall-effect (FlowX3), electromagnetic (F6.60) |
| Input Range | 0–1500 Hz, ±0.5% accuracy |
| Display | 4” graphic LCD, color backlight, 1s update rate |
| Outputs | 1 × 4–20 mA; 2 × SSR; 1 × SPDT mechanical relay |
| Power | 12–24 VDC ±10%, typical < 200 mA |
| Sensor Power | 5 VDC, < 20 mA, optically isolated |
| Temperature Range | –20 to +70°C (operate), –30 to +80°C (storage); humidity up to 95% |
| Enclosure Protection | IP65 front |
| Mounting Options | Field, Panel, Wall |
| Wetted-material Options | PVC, PVDF, SS316L with EPDM / FPM gasket |
| Certifications | ISO 9001, ISO 14001, CE, RoHS, EAC |
| Part No. | Description / Name | Power supply | Wire power Technology | Sensor Input | Output | Length | Main Wetted Materials | Weight (gr.) |
|---|---|---|---|---|---|---|---|---|
| M9.00.01 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | C-PVCEPDM | 550 |
| M9.00.02 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | C-PVC/FPM | 550 |
| M9.00.03 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | C-PVC/EPDM | 550 |
| M9.00.04 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | C-PVC/FPM | 550 |
| M9.00.05 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | PVDF/EPDM | 550 |
| M9.00.06 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | PVDF/FPM | 550 |
| M9.00.07 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | PVDF/EPDM | 550 |
| M9.00.08 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | PVDF/FPM | 550 |
| M9.00.09 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | SS316L/EPDM | 600 |
| M9.00.10 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L0 | SS316L/FPM | 600 |
| M9.00.11 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | SS316L/EPDM | 600 |
| M9.00.12 | Field mount Flow Monitor | 12 - 24 VDC | 2 wire | Flow (Frequency) | 1*(4-20mA), 1*(S.S.R.) | L1 | SS316L/FPM | 600 |
2-Wires Flow Monitor & Transmitter – FLS M9.00
Technical Specifications of 2-Wires Flow Monitor & Transmitter – FLS M9.00
