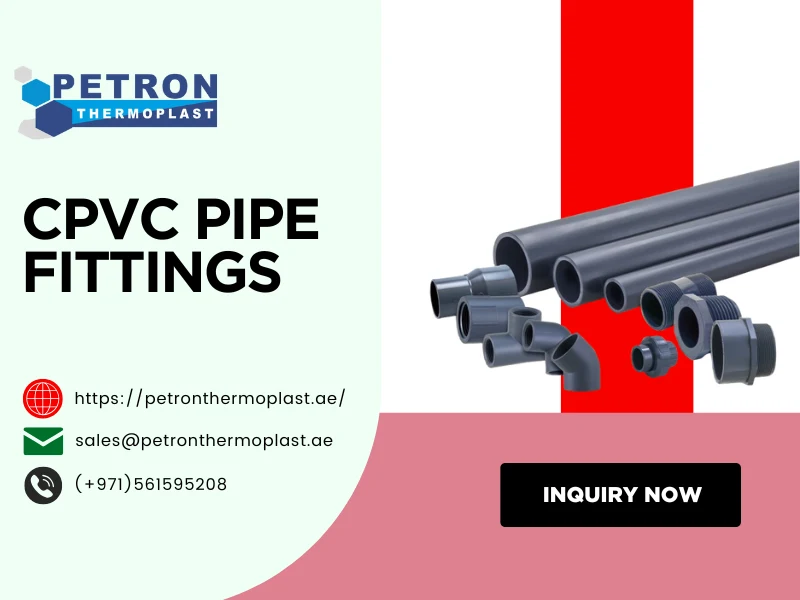

CPVC Pipe Fittings
Petron Thermoplast FZ LLC is a leading CPVC Pipe Fittings Supplier in the UAE, offering a complete range of premium-quality CPVC fittings for industrial, commercial, and residential piping systems. Our CPVC (Chlorinated Polyvinyl Chloride) fittings are engineered for hot and cold water supply, chemical handling, and industrial process applications, ensuring superior thermal resistance, corrosion protection, and long-term performance.
With ready stock, fast delivery, and export services across the UAE, GCC, and international markets, we have become the preferred partner for engineers, contractors, and distributors seeking reliable and cost-effective CPVC solutions.
Petron Thermoplast FZ LLC
More About
CPVC (Chlorinated Polyvinyl Chloride) is a thermoplastic material derived from PVC through a chlorination process, increasing its temperature and chemical resistance. It combines the corrosion resistance of PVC with enhanced heat tolerance, making it suitable for hot water, chemical, and industrial process applications. CPVC maintains structural integrity even at temperatures up to 90°C, making it a preferred choice in industrial fluid handling systems.
Additional Details
| Property | Specification / Description |
|---|---|
| Material | Chlorinated Polyvinyl Chloride (CPVC) |
| Color | Light Cream / Beige |
| Density | 1.55 g/cm³ |
| Temperature Range | -10°C to +90°C |
| Maximum Pressure Rating | Up to 28 bar (varies by size & class) |
| Tensile Strength | 55–60 MPa |
| Thermal Conductivity | 0.16 W/m·K |
| Flammability | Self-extinguishing |
| Joining Method | Solvent Cement / Threaded / Flanged |
| Standards | ASTM D2846, ASTM F441, ISO 15877, BS 3501 |
Comparision Table
| Property | CPVC | UPVC | PP (Polypropylene) | PVDF |
|---|---|---|---|---|
| Max Temperature | 90°C | 60°C | 100°C | 140°C |
| Chemical Resistance | Excellent | Good | Good | Excellent |
| Pressure Rating | High | Medium | Medium | High |
| Cost | Moderate | Low | Moderate | High |
| Weight | Light | Light | Light | Medium |
| UV Resistance | Moderate | Moderate | Poor | Excellent |
| Ideal Applications | Hot/Cold Water, Chemicals | Water, Irrigation | Acidic/Industrial | Corrosive, Semiconductor |
| Lifespan | 25+ years | 20–25 years | 20 years | 25+ years |
Additional Details
| Nominal Size (mm) | Outside Diameter (mm) | Wall Thickness (mm) | Pressure Rating (Bar) |
|---|---|---|---|
| 15 | 21.3 | 1.6 | 28 |
| 20 | 26.7 | 1.9 | 25 |
| 25 | 33.4 | 2.4 | 22 |
| 32 | 42.2 | 2.7 | 20 |
| 40 | 48.3 | 3.2 | 18 |
| 50 | 60.3 | 3.9 | 16 |
| 63 | 75.0 | 4.5 | 14 |
| 75 | 88.9 | 5.4 | 12 |
| 90 | 114.3 | 6.6 | 10 |
Features of CPVC
High Chemical Resistance
Ideal for aggressive chemicals used in water treatment and chemical industries.
Thermal Durability
Withstands temperatures up to 93°C, perfect for hot water and steam systems.
Corrosion-Free
Unlike metal fittings, CPVC doesn’t rust, scale, or corrode
Leak-Proof Sealing
Tight, secure connections reduce maintenance and downtime
Lightweight & Easy Installation
Reduces labor time and cost, suitable for both retrofit and new installations.
Low Thermal Conductivity
Minimizes heat loss in fluid systems.
Fire Retardant Properties
CPVC is self-extinguishing and has a high Limiting Oxygen Index (LOI).
Various Applications
CPVC Pipe Fittings are widely used across industrial, commercial, and residential systems due to their superior heat resistance, corrosion protection, and long service life. At Petron Thermoplast FZ LLC, our CPVC fittings are designed to deliver reliable performance even under high temperature and pressure conditions, making them suitable for a wide range of fluid handling and process applications.
Below are the most common and critical applications of CPVC pipe fittings in various industries:
1. Hot and Cold Water Plumbing Systems
CPVC is the preferred choice for domestic and commercial plumbing networks because it can handle both hot and cold water without degradation.
- Ideal for residential buildings, hotels, and hospitals
- Retains strength and shape up to 90°C
- 100% safe and hygienic for potable water
2. Chemical Processing Plants
CPVC fittings are used extensively in chemical industries for transferring corrosive and high-temperature fluids.
- Excellent resistance to acids, alkalis, and solvents
- Ensures non-reactive, leak-proof fluid conveyance
- Commonly used in chemical dosing, acid pickling, and plating lines
3. Industrial Fluid Handling Systems
In industrial operations, CPVC fittings play a key role in process fluid management.
- Suitable for industrial water supply, chemical feed, and recirculation systems
- Withstand high pressures and temperatures in harsh environments
- Reduce downtime and maintenance costs
4. Water Treatment and RO (Reverse Osmosis) Plants
CPVC’s chemical and temperature resistance makes it perfect for RO, desalination, and wastewater systems.
- Handles chlorine-based and cleaning agents effectively
- Maintains purity of treated water
- Long service life in continuous operation
5. HVAC and Cooling Systems
Used in cooling water pipelines and HVAC systems, CPVC fittings ensure stable performance under varying temperatures.
- Prevent scaling, rust, and condensation
- Ideal for chilled water and cooling tower applications
6. Fire Protection & Utility Networks
CPVC fittings are increasingly being used in fire sprinkler and utility water systems, due to their flame-retardant and high-pressure characteristics.
- UL-listed CPVC systems are suitable for indoor fire suppression
- Lightweight and corrosion-free alternative to metal piping
7. Food & Beverage Industry
In processing units where hygiene and safety are crucial, CPVC fittings are used for clean water and utility systems.
- Non-toxic and free from bacterial growth
- Does not contaminate or affect taste or odor of fluids
8. Marine and Offshore Installations
CPVC fittings are resistant to saltwater and harsh marine conditions, making them ideal for offshore platforms and ship piping.
- Excellent corrosion resistance
- Lightweight for easy handling and installation in tight spaces
9. Agricultural Irrigation Systems
Used for hot water distribution and chemical-based irrigation systems, CPVC fittings offer:
- Compatibility with fertilizers and pesticides
- High durability under outdoor temperature variations
10. Pharmaceutical and Healthcare Systems
In clean environments like pharmaceutical plants and laboratories, CPVC fittings ensure safe and pure fluid transfer.
- Non-contaminating and chemically stable
- Ideal for cleanroom and process water piping
Advantages
Excellent mechanical strength and pressure-bearing capacity
High temperature tolerance compared to UPVC and PP
Resistant to corrosion, scaling, and microbial growth
Leak-proof joints ensure maintenance-free operation
Safe for potable water and food-grade systems
Cost-effective alternative to metal and stainless-steel piping
Smooth inner bore ensures consistent flow with minimal energy loss
Easy solvent welding for rapid and secure installations
Why Choose us
ISO-Certified Products
Competitive Pricing for Bulk Order
Custom Sizing and Machining
On-Time Delivery Across UAE
Experienced Technical Support Team
Genuine Products with Full Traceability
Customization & Processing Options
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
Quality Standards
Every CPVC pipe fitting supplied by Petron Thermoplast is tested under strict quality control parameters to ensure durability and compliance.
Dimensional and Visual Inspection
Hydrostatic Pressure Testing
Thermal Aging and Impact Resistance
Solvent Cement Joint Integrity
Compliance Verification – ASTM D2846 / F441 / ISO 15877
Material Traceability Certificates provided with every batch
Industries
At Petron Thermoplast FZ LLC, we take pride in being one of the leading suppliers of CPVC Pipe Fittings in the UAE, serving a wide spectrum of industries that require high performance, chemical resistance, and long-lasting reliability. Our CPVC fittings are engineered to perform flawlessly under high temperatures and aggressive chemical conditions, making them the preferred choice for industrial, commercial, and institutional applications across the GCC and beyond.
Below is an overview of the key industries we serve with our world-class CPVC pipe fittings:
1. Plumbing & Building Construction
We supply CPVC pipe fittings for residential, commercial, and institutional plumbing systems that handle hot and cold water distribution.
- Perfect for apartments, hotels, hospitals, and schools
- Ensures safe, hygienic, and leak-proof water supply
- Long service life with minimal maintenance
2. Chemical & Process Industry
CPVC fittings are ideal for handling aggressive chemicals in processing, manufacturing, and storage facilities.
- Excellent resistance to acids, alkalis, and solvents
- Withstands continuous operating temperatures up to 90°C
- Used in chemical dosing, pickling lines, plating tanks, and process pipelines
3. Water Treatment & Desalination Plants
In RO and wastewater treatment systems, CPVC fittings deliver superior corrosion resistance and dimensional stability.
- Compatible with chlorinated and treated water
- Used in RO skid assemblies, demineralization plants, and filtration systems
- Provides long-term reliability in corrosive environments
4. Food & Beverage Industry
CPVC’s non-toxic and smooth interior surface makes it an ideal choice for food-grade water and process piping.
- Safe for potable water and beverage processing lines
- Resistant to biofilm formation and bacterial growth
- Meets industrial hygiene standards
5. Pharmaceutical & Healthcare Industry
We supply CPVC fittings for sterile and cleanroom environments, ensuring contamination-free fluid conveyance.
- Used in purified water and cleaning systems
- Maintains high purity and chemical compatibility
- Complies with industry safety and hygiene standards
6. HVAC & Fire Protection Systems
CPVC is increasingly used in HVAC systems and fire sprinkler networks due to its flame-retardant and pressure-resistant nature.
- UL-listed CPVC systems for indoor fire suppression
- Ideal for chilled and hot water circulation
- Corrosion-free and lightweight for quick installation
7. Marine & Offshore Industry
In shipbuilding and offshore facilities, CPVC fittings offer excellent corrosion and saltwater resistance.
- Used in utility water systems and cooling pipelines
- Non-metallic and lightweight—reduces installation time and maintenance costs
8. Agriculture & Irrigation
CPVC is increasingly used in HVAC systems and fire sprinkler networks due to its flame-retardant and pressure-resistant nature.
- UL-listed CPVC systems for indoor fire suppression
- Ideal for chilled and hot water circulation
- Corrosion-free and lightweight for quick installation
9. Power Generation & Industrial Utilities
For cooling water and utility piping in power plants and factories, CPVC offers superior temperature and pressure performance.
- Handles hot condensate and process water efficiently
- Prevents scaling, corrosion, and leakage
10. Manufacturing & Processing Plants
Industries like textile, paper, and electroplating rely on CPVC fittings for their chemical handling systems.
- Long-lasting and corrosion-proof
- Ensures operational reliability and reduced downtime
Serving All Emirates in the UAE
We supply and deliver PVDF material solutions to all major regions across the UAE, including:
- Dubai
- Abu Dhabi
- Sharjah
- Ajman
- Fujairah
- Ras Al Khaimah
- Umm Al Quwain
No matter your location or project size, we ensure on-time delivery and consistent product quality.
Conclusion
CPVC Pipe Fittings from Petron Thermoplast FZ LLC deliver unmatched durability, heat resistance, and chemical stability for both industrial and domestic applications. Designed for hot and cold water systems, chemical processing, and utility piping, they provide long-term, leak-proof, and maintenance-free performance.
As a leading CPVC fittings supplier in the UAE, we combine quality materials, technical expertise, and fast delivery to ensure seamless project execution. Choose Petron Thermoplast – where innovation meets reliability in every connection.
CPVC is Chlorinated PVC, offering higher heat resistance (up to 90°C) and improved chemical strength compared to PVC or UPVC.
Yes, CPVC fittings are ideal for hot water systems in both domestic and industrial applications.
Yes, they resist a wide range of acids, alkalis, and industrial fluids.
All fittings comply with ASTM D2846, ASTM F441, and ISO 15877 standards.
They are connected using solvent cement, threaded joints, or flanged couplings.
Typically over 25 years under normal operating conditions.
Yes, we offer custom sizes, pressure classes, and OEM solutions for industrial projects.
