Machining
CNC Turning
Petron Thermoplast FZ LLC is a leading provider of CNC Turning Services in UAE, specializing in the precision machining of engineering plastics and industrial polymers. Our advanced CNC turning centers deliver tight tolerances, smooth finishes, and high repeatability, ensuring that every component meets international quality and performance standards.
With decades of experience serving industries such as chemical processing, water treatment, oil & gas, and manufacturing, we offer cost-effective and high-precision CNC-turned parts tailored to your exact specifications.
More About

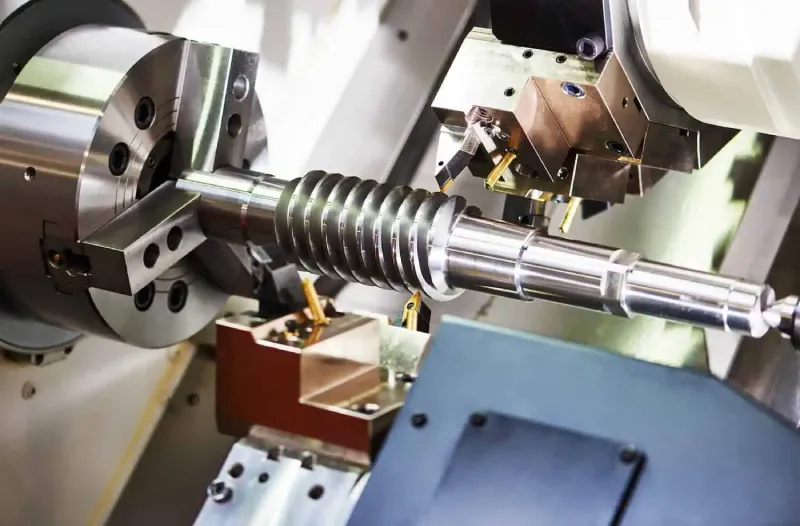

CNC Turning is a subtractive manufacturing process where a cutting tool removes material from a rotating plastic rod or billet to create precise cylindrical parts. It is widely used for producing components like bushings, connectors, valve seats, shafts, and threaded fittings from materials such as PP, HDPE, PVDF, POM, PTFE, and PPH.
CNC turning ensures exceptional dimensional accuracy, smooth surface finish, and high production efficiency, making it the ideal solution for complex, high-performance plastic components.
CnC Turning Range
At Petron Thermoplast, we provide a full range of CNC turning solutions designed for different project requirements:
| Project | Description |
|---|---|
| Straight Turning | For creating uniform cylindrical profiles with precision diameters. |
| Taper Turning | Produces conical parts used in pipe fittings and connectors. |
| Grooving and Parting | Used to cut precision grooves and separate components accurately. |
| Thread Cutting | For internal and external threads with exact pitches and dimensions. |
| Contour Turning | Enables complex shapes and curved profiles for custom components. |
| Boring and Reaming | Enhances hole precision and surface finish in plastic components. |
| Facing Operations | Produces smooth and flat surfaces perpendicular to the axis. |
| Drilling & Internal Machining | For precise internal bores, holes, and slots. |
| CNC Swiss Turning | High-speed micro-turning for small, intricate components. |
| Custom Precision Turning | Tailored solutions based on 3D CAD designs and material performance requirements. |
Additional Data
| Parameter | Specifications |
|---|---|
| Machining Type | CNC Precision Turning |
| Material Capability | PP, HDPE, POM, PVDF, PTFE, PVC, CPVC, PPH, Nylon, Acrylic |
| Maximum Diameter | Up to 500 mm |
| Maximum Length | Up to 1000 mm |
| Tolerance Accuracy | ±0.02 mm |
| Surface Finish | Ra 0.8 – 3.2 µm |
| Spindle Speed | Up to 4000 RPM |
| Machining Capacity | Prototype to Mass Production |
| Programming Interface | CAD/CAM (AutoCAD, SolidWorks, MasterCAM) |
| Inspection Method | Digital Vernier, CMM, and Micrometer Verification |
Comparision Table
| Feature | CNC Turning | CNC Milling |
|---|---|---|
| Primary Function | Rotating workpiece with stationary tool | Rotating tool with stationary workpiece |
| Ideal Shapes | Cylindrical, round, threaded components | Flat, angular, and complex 3D parts |
| Material Removal Rate | Faster for symmetric parts | Slower for round parts |
| Accuracy | Extremely precise for round features | High precision for angular features |
| Best For | Bushings, shafts, connectors, fittings | Plates, brackets, molds, housings |
Size & Thickness
| Material Type | Rod Diameter (mm) | Maximum Length (mm) |
|---|---|---|
| PP / HDPE | 10 – 400 | Up to 1000 |
| PVDF / PTFE | 15 – 300 | Up to 800 |
| POM / Nylon | 10 – 500 | Up to 1200 |
| PVC / CPVC | 15 – 250 | Up to 600 |
Key Feature
Key Features of CNC Turning
- High dimensional accuracy and repeatability
- Smooth and consistent surface finishes
- Compatible with a wide range of thermoplastics
- Efficient for both prototypes and high-volume runs
- Rapid setup with CAD/CAM integration
- Minimal material waste, reducing costs
- Ability to produce threaded, tapered, or grooved components
- Supports custom geometries and engineering tolerances
Industry We Serve
CNC Turning is an advanced machining process used to create precise cylindrical and symmetrical components from various materials, especially engineering-grade plastics like PPH, PVDF, PTFE, HDPE, POM, and PVC. At Petron Thermoplast FZ LLC, our CNC turning services deliver tight tolerances, superior surface finishes, and consistent part quality, making them ideal for industries that demand precision and performance.
Below are the major industrial applications of CNC turning services we offer:
1. Chemical & Petrochemical Industry
- Production of chemical-resistant components such as valve seats, connectors, and bushings.
- Fabrication of pipe fittings, adapters, and coupling elements for chemical flow systems.
- Used in manufacturing non-corrosive parts for acid and alkali handling systems.
2. Water & Wastewater Treatment
- Turning of HDPE and PP fittings, end caps, and flow regulators used in filtration systems.
- Precision components for RO plants, desalination units, and water recycling systems.
- Ideal for pressure-resistant and leak-proof pipe systems.
3. Oil & Gas Industry
- Machining of durable plastic valves, seals, and manifolds for fluid control.
- Used for non-metallic, corrosion-resistant connectors and housings.
- Ensures reliability under high temperature and pressure conditions.
4. Pharmaceutical & Medical Sector
- CNC turned hygienic and contamination-free parts like tube fittings, adaptors, and manifolds.
- Components used in biotech equipment, laboratory apparatus, and cleanroom systems.
- Manufactured with FDA-approved plastic materials suitable for sterile environments.
5. Food & Beverage Processing
- Production of non-toxic, food-grade plastic parts for automation and dispensing systems.
- Used in filling machines, mixing units, and pipeline assemblies.
- Resistant to chemicals and easy to clean for hygienic operations.
6. Automotive & Engineering
- Turning of precision bushings, rollers, gears, and spacers.
- Creation of lightweight and corrosion-resistant plastic alternatives to metal components.
- Perfect for prototype and small-batch automotive production.
7. Electrical & Electronics
- Machined insulating spacers, terminals, housings, and connectors.
- Plastic materials ensure excellent dielectric strength and heat resistance.
- Used in electrical enclosures, panels, and device assemblies.
8. Marine & Offshore
- Fabrication of UV and saltwater-resistant components like flanges, couplings, and valves.
- Used in pumping systems, filtration units, and navigation equipment.
- Prevents corrosion in harsh marine conditions.
9. Industrial Machinery
- Machining of custom plastic fittings, valve parts, seals, and bearings.
- Applied in automation systems, pumps, and material handling equipment.
- Ensures smooth performance and low friction in dynamic machine parts.
10. Custom Engineering & Prototyping
- CNC turning is ideal for custom-designed parts with complex geometries.
- Supports low-volume production, prototyping, and product development.
- Flexible design and quick turnaround for R&D applications.
Why CNC Turning Best
Consistent production of complex geometries
Faster turnaround compared to manual machining
Lower operational costs for bulk manufacturing
Improved surface finish with minimal post-processing
Suitable for lightweight, corrosion-resistant plastic parts
Tight tolerances ideal for high-performance applications
Comparision Table
We are a leading industrial plastics supplier in the UAE, committed to delivering excellence in product quality and customer satisfaction.
Wide range of metal
Custom cut-to-size
and fabrication services
Certified quality
ISO and FDA-approved materials
Ready stock available
for quick supply
On-time delivery
across UAE, GCC, and Africa
Expert technical support
for material selection
Customization & Processing Options
Petron Thermoplast LLC offers full customization options to suit your exact project needs
- Custom dimensions and geometries
- Multi-step machining and threading
- Polishing, drilling, and surface finishing
- Special-grade plastic materials (FDA, conductive, UV-resistant)
- Tight tolerance control as per DIN / ASTM standards
- Logo engraving and part numbering (optional)
Comparision Table
All components undergo stringent quality assurance tests in accordance with ASTM, DIN, ISO, and BS standards.
Our quality control includes:
Dimensional and tolerance inspection
Visual and surface finish verification
Pressure and leakage testing (for fittings)
Material traceability and certification
Comparision Table
Chemical & Petrochemical
Water & Wastewater Treatment
Food & Beverage
Pharmaceutical & Biotechnology
Marine & Offshore
Automotive & Aerospace
Oil & Gas
Electrical & Electronics
Industrial Machinery Manufacturing
Serving All Emirates in the UAE
We supply and deliver PVDF material solutions to all major regions across the UAE, including:
- Dubai
- Abu Dhabi
- Sharjah
- Ajman
- Fujairah
- Ras Al Khaimah
- Umm Al Quwain
No matter your location or project size, we ensure on-time delivery and consistent product quality.
Conclusion
CNC Turning is the foundation of high-precision manufacturing for plastic engineering components. With Petron Thermoplast FZ LLC, you benefit from advanced machining capabilities, reliable performance, and on-time delivery. We combine state-of-the-art CNC technology with deep industry expertise to produce components that meet the most stringent quality standards. Trust Petron Thermoplast FZ LLC — the UAE’s most reliable partner for CNC Turned Plastic Components and custom machining solutions.
We specialize in PP, PVDF, PTFE, POM, PPH, Nylon, Acrylic, PVC, and CPVC for both standard and custom components.
We can machine parts up to 500 mm diameter and 1000 mm length, depending on material type.
Yes, we handle one-off prototypes as well as mass production runs with equal precision.
Absolutely — our team can review CAD drawings, recommend design optimizations, and ensure manufacturability.
Yes, we export globally with fast shipping to GCC, Middle East, and African markets.
