Engineering Plastic

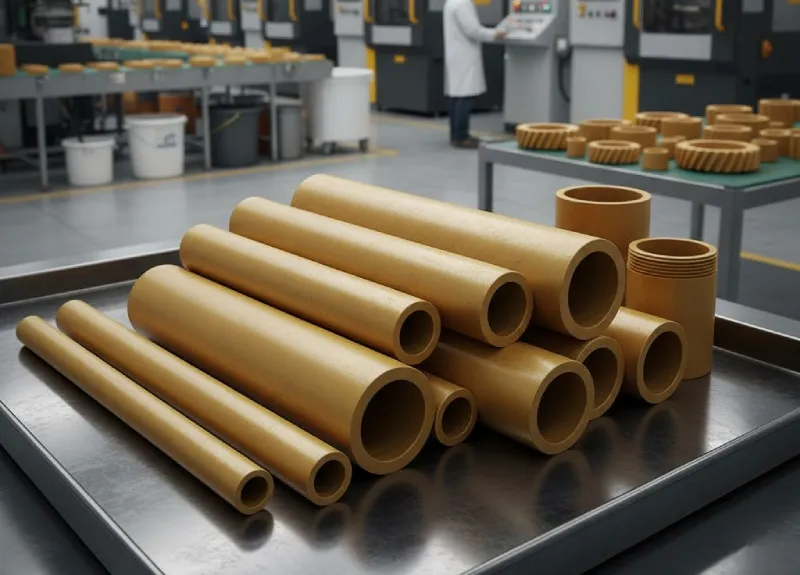

Vespel Tubes
Petron Thermoplast LLC is a trusted supplier and distributor of Vespel Tubes in the UAE, providing premium-quality polyimide tubing designed for high-temperature, high-load, and demanding engineering environments. As one of the most advanced thermoplastic materials, Vespel (polyimide) combines exceptional thermal stability, mechanical strength, and chemical resistance, making it ideal for aerospace, semiconductor, and precision mechanical applications.
At Petron Thermoplast LLC, we stock Vespel SP-1, SP-21, SP-22, and SP-211 tubes in a range of sizes, thicknesses, and grades, all sourced from reliable global manufacturers.
More About
Vespel is a DuPont-engineered polyimide resin, renowned for its ability to maintain dimensional stability and mechanical integrity even at extreme temperatures up to 300°C. A Vespel Tube is a hollow cylindrical component used in high-performance mechanical, electrical, and thermal applications where standard plastics or metals fail.
It combines lightweight performance with strength and resistance to wear, creep, and chemicals, making it ideal for bushings, spacers, insulators, and seals in aerospace, automotive, and electronic systems.
Range of Products
| Type / Grade | Filler / Additive | Key Characteristics | Applications |
|---|---|---|---|
| Vespel SP-1 | Unfilled Polyimide | Highest purity and dielectric strength; excellent thermal and wear resistance. | Semiconductor, vacuum, and electrical insulation. |
| Vespel SP-21 | 15% Graphite | Lower friction and improved wear resistance; good for dry bearing applications. | Bearings, bushings, seals, and wear rings. |
| Vespel SP-22 | 40% Graphite | Enhanced self-lubrication for high-load, low-speed use. | Valve seats, washers, high-pressure seals. |
| Vespel SP-211 | 15% Graphite + 10% PTFE | Low friction with balanced strength and wear properties. | Automotive and aerospace components. |
| Vespel SCP-5000 | Advanced Polyimide | Improved oxidation resistance for prolonged high-heat service. | Turbine and jet engine components. |
Comparison Data
| Property | Vespel SP-1 | Vespel SP-21 | Vespel SP-22 | Vespel SP-211 |
|---|---|---|---|---|
| Filler Type | None | 15% Graphite | 40% Graphite | 15% Graphite + 10% PTFE |
| Density (g/cm³) | 1.43 | 1.50 | 1.64 | 1.55 |
| Tensile Strength (MPa) | 90 | 85 | 70 | 75 |
| Flexural Strength (MPa) | 160 | 150 | 130 | 120 |
| Coefficient of Friction (Dry) | 0.35 | 0.20 | 0.18 | 0.15 |
| Coefficient of Friction (Dry) | 0.35 | 0.20 | 0.18 | 0.15 |
| Continuous Use Temperature (°C) | 288 | 288 | 288 | 288 |
| Thermal Expansion (10⁻⁵/°C) | 3.2 | 3.0 | 2.9 | 2.8 |
| Electrical Resistivity (Ω·cm) | 10¹⁷ | 10¹³ | 10¹² | 10¹² |
| Wear Resistance | Excellent | Superior | Excellent | Superior |
Additional Data
| Outer Diameter (mm) | Inner Diameter (mm) | Wall Thickness (mm) | Length (mm) |
|---|---|---|---|
| 6 | 4 | 1 | 300 / 500 / 1000 |
| 10 | 6 | 2 | 300 / 500 / 1000 |
| 15 | 10 | 2.5 | 300 / 500 / 1000 |
| 20 | 15 | 2.5 | 300 / 500 / 1000 |
| 25 | 20 | 2.5 | 300 / 500 / 1000 |
| 30 | 25 | 2.5 | 300 / 500 / 1000 |
| 40 | 32 | 4 | 300 / 500 / 1000 |
| 50 | 40 | 5 | 300 / 500 / 1000 |
| 63 | 50 | 6.5 | 300 / 500 / 1000 |
| Custom Sizes | Available | Available | Upon Request |
Key Features of Vespel Tubes
- Outstanding thermal stability up to 300°C continuous use
- Excellent dimensional accuracy and low creep under load
- High strength-to-weight ratio for lightweight applications
- Exceptional wear and friction resistance (even without lubrication)
- Chemical resistance to solvents, fuels, and lubricants
- High dielectric strength and electrical insulation
- Low outgassing properties – ideal for vacuum applications
- Retains properties at cryogenic and high-temperature extremes
- No melting point – maintains rigidity and form
- Compatible with precision machining and finishing
Additional Data
Vespel Tubes from Petron Thermoplast LLC are used across a wide range of industries due to their strength, durability, and versatility.
Aerospace and Defense
Bushings, seals, insulators, and wear rings
Semiconductor Industry
Wafer handling, vacuum insulation, high-purity components
Automotive
Valve seats, bearings, transmission spacers
Oil & Gas
Seals, gaskets, and thermal barrier sleeves
Electrical & Electronics
Connectors, coil supports, and terminal insulators
Industrial Machinery
Bearings, pulleys, rollers, and wear guides
Medical Equipment
Precision mechanical and electrical insulators
High-Temperature Furnaces
Tubing, spacers, and structural supports
Advantages
Vespel Tubes are used in a wide range of industrial applications requiring mechanical precision, dimensional accuracy, and durability:
Maintains strength and shape under extreme heat
Excellent wear life in both dry and lubricated conditions
Superior dielectric properties for electrical applications
Lightweight alternative to metals and ceramics
No thermal degradation or embrittlement
Dimensional stability across wide temperature ranges
Chemically inert and non-corrosive
Low outgassing – suitable for vacuum use
Why CHoose Us
We are a leading industrial plastics supplier in the UAE, committed to delivering excellence in product quality and customer satisfaction.
Wide range of metal
Custom cut-to-size
and fabrication services
Certified quality
ISO and FDA-approved materials
Ready stock available
for quick supply
On-time delivery
across UAE, GCC, and Africa
Expert technical support
for material selection
Customization & Processing Options
Petron Thermoplast LLC offers full customization options to suit your exact project needs
- CNC machining and turning
- Laser cutting and routing
- Precision milling and drilling
- Thermoforming and bending
- Edge finishing and polishing
- Hybrid material fabrication (Vespel + PTFE / PEEK)
- Prototype and batch production services
Testing Standard
Every Vespel Tube supplied by Petron Thermoplast LLC undergoes strict testing to ensure performance, durability, and safety compliance.
| Property / Test | Standard / Method |
|---|---|
| Density | ASTM D792 |
| Tensile Strength | ASTM D638 |
| Flexural Modulus | ASTM D790 |
| Coefficient of Friction | ASTM D3702 |
| Thermal Conductivity | ASTM E1530 |
| Dielectric Strength | ASTM D149 |
| Dimensional Tolerance | ISO 2768 |
| Creep Resistance | ASTM D2990 |
| Outgassing Test | NASA SP-R-0022A |
| Flame Resistance | UL 94 V-0 |
Industries
Aerospace & Aviation
Semiconductor & Electronics
Automotive & Motorsport
Oil & Gas Processing
Medical & Pharmaceutical
Industrial Machinery
Defense & Research Labs
Renewable Energy Systems
Engineering & Manufacturing
Serving All Emirates in the UAE
We supply and deliver PVDF material solutions to all major regions across the UAE, including:
- Dubai
- Abu Dhabi
- Sharjah
- Ajman
- Fujairah
- Ras Al Khaimah
- Umm Al Quwain
No matter your location or project size, we ensure on-time delivery and consistent product quality.
Conclusion
Petron Thermoplast LLC is the leading supplier of Vespel Tubes in the UAE, delivering premium polyimide tubing solutions built for extreme environments and precision performance. With unmatched thermal resistance, strength, and wear characteristics, Vespel Tubes from Petron Thermoplast ensure long-term reliability in critical engineering applications.
Choose Petron Thermoplast LLC for your high-performance plastic tubing needs—we guarantee quality, precision, and timely delivery across the UAE and beyond. Petron Thermoplast LLC – Your Reliable Source for High-Performance Engineering Plastics in UAE
Vespel Tubes can operate continuously up to 288°C and intermittently up to 482°C, depending on grade.
We supply SP-1, SP-21, SP-22, SP-211, and SCP-5000 grades suitable for various mechanical and electrical applications.
Yes, they can be precisely machined using standard metalworking tools to tight tolerances.
Yes, it is resistant to fuels, solvents, lubricants, and most industrial chemicals.
Yes, we offer custom diameters, wall thicknesses, and machining services upon request.
Vespel performs better under extreme temperatures, with superior dimensional stability and wear resistance.
Yes, its low outgassing and high thermal stability make it ideal for vacuum, space, and aerospace environments.
Yes, we export across GCC, Africa, and Asia, offering complete export documentation and logistic support.
