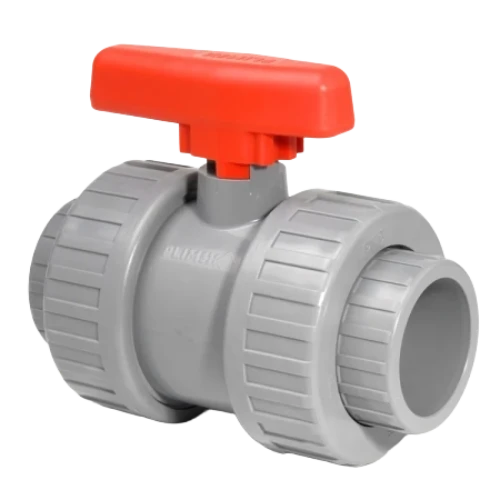

The CPVC Ball Valve is a durable and reliable flow control valve designed for on/off service in piping systems handling corrosive fluids. Made from Chlorinated Polyvinyl Chloride (CPVC), it is ideal for high-temperature and chemical-resistant applications across industries such as chemical processing, water treatment, and industrial piping. The valve features a spherical ball with a bore for controlling fluid flow, providing tight shutoff and minimal pressure drop. Available in various sizes and connection types, it offers ease of operation and long service life even in demanding environments.
CPVC Ball Valve
Key Features Of CPVC Ball Valve
- Chemical-Resistant CPVC Body: Ensures compatibility with a wide range of aggressive chemicals.
- Full Bore Design: Allows unrestricted flow, reducing pressure loss.
- Smooth Lever Operation: Quarter-turn handle enables fast and easy flow control.
- Leak-Proof Sealing: Equipped with high-quality EPDM or FKM seals for secure shutoff.
- Corrosion-Free Construction: Resistant to rust and scale buildup.
- Lightweight and Compact: Easy to install and handle, even in tight spaces.
- Union End Option (Available): Facilitates easy maintenance without removing the entire valve.
- Long Service Life: Designed for durability under continuous service conditions.
CPVC Ball Valve
Technical Specifications of CPVC Ball Valve
| Parameter | Specification |
| Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Ball Material | CPVC |
| Seal Material | EPDM or FKM (Viton®) |
| Size Range | ½” to 4″ (15 mm to 110 mm) |
| Connection Types | Socket (solvent weld), Threaded (NPT/BSP), or Flanged |
| Operation | Manual (Quarter-turn handle) |
| Pressure Rating | Up to 150 PSI (10.3 bar) at 23°C |
| Temperature Range | 0°C to 93°C (32°F to 200°F) |
| Flow Path | Full bore |
| Applications | Chemical dosing, water treatment, industrial piping systems |
| Compliance Standards | ASTM D1784, NSF/ANSI 61 (optional) |
| Specification | Details |
|---|---|
| Product Name | PVDF Elbow 90° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 90 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (depends on size & type) |
| Connection Types | Socket weld, threaded, or flanged |
| Color | Natural White or Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 16 | 16 | 22 | 23 | 10 |
| 20 | 16 | 28 | 27 | 13 |
| 25 | 16 | 33 | 32 | 16 |
| 32 | 16 | 41 | 33 | 19 |
| 40 | 16 | 52 | 43 | 23 |
| 50 | 16 | 63 | 51 | 27 |
| 63 | 16 | 77 | 61 | 34 |
| 75 | 16 | 92 | 73 | 42 |
| 90 | 16 | 110 | 83 | 47 |
| 110 | 16 | 133 | 99 | 58 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
Dimensional graph
| Measurements | Technical Details | |||||
|---|---|---|---|---|---|---|
| d | PN | A | C | Z1 | Specification | Details |
| 16 | 16 | 22 | 23 | 10 | Product Name | PVDF Elbow 90° |
| 20 | 16 | 28 | 27 | 13 | Material | Polyvinylidene Fluoride (PVDF) |
| 25 | 16 | 33 | 32 | 16 | Angle | 90 Degrees |
| 32 | 16 | 41 | 33 | 19 | Size Range | 20mm to 315mm (custom sizes available) |
| 40 | 16 | 52 | 43 | 23 | Temperature Range | -40°C to +140°C |
| 50 | 16 | 63 | 51 | 27 | Pressure Rating | Up to 16 bar (depends on size & type) |
| 63 | 16 | 77 | 61 | 34 | Connection Types | Socket weld, threaded, or flanged |
| 75 | 16 | 92 | 73 | 42 | Color | Natural White or Translucent |
| 90 | 16 | 110 | 83 | 47 | Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| 110 | 16 | 133 | 99 | 58 | Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
