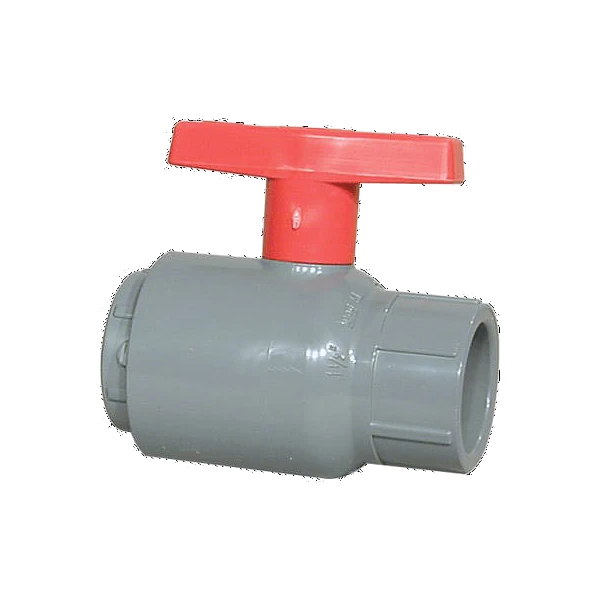

The CPVC Compact Ball Valve is a lightweight and space-saving flow control valve designed for on/off service in piping systems handling corrosive or high-temperature fluids. Manufactured from durable Chlorinated Polyvinyl Chloride (CPVC), this valve offers excellent chemical resistance and thermal stability. It features a full-port design for minimal flow restriction and is ideal for compact installations where space is limited. The simple quarter-turn operation ensures quick and reliable shutoff in industrial, chemical, and water treatment applications.
CPVC Compact Ball Valve
Key Features Of CPVC Compact Ball Valve
- Compact Design: Ideal for tight spaces without compromising performance.
- Durable CPVC Body: Excellent resistance to corrosion, chemicals, and high temperatures.
- Full-Port Flow Path: Ensures minimal pressure drop and unrestricted flow.
- Quarter-Turn Operation: Easy and reliable shutoff with ergonomic handle.
- Bubble-Tight Sealing: PTFE seats and elastomer seals ensure leak-free operation.
- Lightweight & Non-Metallic: Easy to install and corrosion-proof.
- Multiple Connection Types: Available in solvent weld (socket) and threaded ends.
- Low Maintenance: Simple construction for long-lasting performance.
CPVC Compact Ball Valve
Technical Specifications of CPVC Compact Ball Valve
| Parameter | Specification |
| Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Ball Material | CPVC |
| Seat Material | PTFE (Teflon®) |
| Seal Material | EPDM or FKM (Viton®) |
| Size Range | ½” to 2″ (15 mm to 50 mm) |
| End Connections | Socket (solvent weld), Threaded (NPT/BSP) |
| Operating Pressure | Up to 150 PSI (10.3 bar) at 23°C |
| Temperature Range | 0°C to 93°C (32°F to 200°F) |
| Operation Type | Manual (quarter-turn handle) |
| Flow Type | Full-port |
| Compliance Standards | ASTM D1784 (CPVC material), NSF/ANSI 61 (if applicable) |
| Applications | Chemical processing, water distribution, industrial systems |
| Specification | Details |
|---|---|
| Product Name | PVDF Elbow 90° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 90 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (depends on size & type) |
| Connection Types | Socket weld, threaded, or flanged |
| Color | Natural White or Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 16 | 16 | 22 | 23 | 10 |
| 20 | 16 | 28 | 27 | 13 |
| 25 | 16 | 33 | 32 | 16 |
| 32 | 16 | 41 | 33 | 19 |
| 40 | 16 | 52 | 43 | 23 |
| 50 | 16 | 63 | 51 | 27 |
| 63 | 16 | 77 | 61 | 34 |
| 75 | 16 | 92 | 73 | 42 |
| 90 | 16 | 110 | 83 | 47 |
| 110 | 16 | 133 | 99 | 58 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
Dimensional graph
| Measurements | Technical Details | |||||
|---|---|---|---|---|---|---|
| d | PN | A | C | Z1 | Specification | Details |
| 16 | 16 | 22 | 23 | 10 | Product Name | PVDF Elbow 90° |
| 20 | 16 | 28 | 27 | 13 | Material | Polyvinylidene Fluoride (PVDF) |
| 25 | 16 | 33 | 32 | 16 | Angle | 90 Degrees |
| 32 | 16 | 41 | 33 | 19 | Size Range | 20mm to 315mm (custom sizes available) |
| 40 | 16 | 52 | 43 | 23 | Temperature Range | -40°C to +140°C |
| 50 | 16 | 63 | 51 | 27 | Pressure Rating | Up to 16 bar (depends on size & type) |
| 63 | 16 | 77 | 61 | 34 | Connection Types | Socket weld, threaded, or flanged |
| 75 | 16 | 92 | 73 | 42 | Color | Natural White or Translucent |
| 90 | 16 | 110 | 83 | 47 | Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| 110 | 16 | 133 | 99 | 58 | Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
