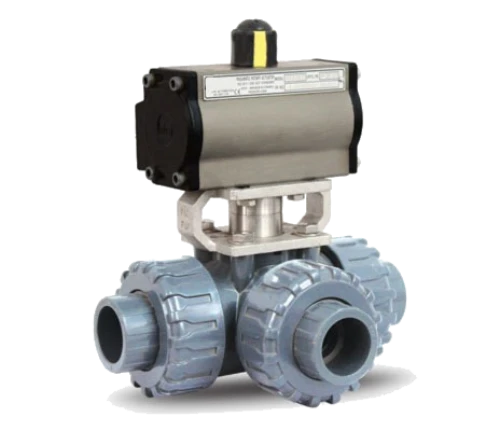

The CPVC Pneumatic Actuator 3 Way Ball Valve is a high-performance, automated valve designed for diverting or mixing flow in industrial piping systems. Constructed from corrosion-resistant Chlorinated Polyvinyl Chloride (CPVC), this valve ensures durability and chemical compatibility in aggressive fluid applications. Combined with a pneumatic actuator, it enables fast, reliable, and remote-controlled operation. Available in both L-Port and T-Port configurations, this valve is ideal for automated fluid routing in chemical processing, wastewater treatment, and industrial automation systems.
CPVC Pneumatic Actuator 3 Way Ball Valve Graphics
Key Features Of CPVC Pneumatic Actuator 3 Way Ball Valve Graphics
- Corrosion-Resistant CPVC Body and Ball: Suitable for handling acids, alkalis, and other aggressive chemicals.
- Pneumatic Actuation: Enables fast and reliable automated control with double-acting or spring-return operation.
- L-Port and T-Port Configurations: Supports flow diversion, mixing, or shutoff in multi-directional systems.
- Full Bore Design: Ensures maximum flow rate with minimal pressure drop.
- High Cycle Life: Engineered for long-lasting performance in repetitive operations.
- Manual Override (Optional): Allows emergency manual operation if needed.
- ISO Mounting Interface: Ensures compatibility with standard actuators and accessories.
- Control Accessories (Optional): Solenoid valves, limit switches, and positioners can be added for full automation.
CPVC Pneumatic Actuator 3 Way Ball Valve Graphics
Technical Specifications of CPVC Pneumatic Actuator 3 Way Ball Valve Graphics
| Parameter | Specification |
| Valve Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Ball Material | CPVC |
| Seat Material | EPDM or FKM (Viton®) |
| Port Configuration | L-Port or T-Port |
| Size Range | ½” to 4″ (15 mm to 110 mm) |
| End Connections | Socket (Solvent Weld), Threaded (NPT/BSP), or Flanged |
| Actuator Type | Pneumatic (Double-acting or Spring-return) |
| Air Supply Pressure | 80–120 PSI (5.5–8.3 bar) |
| Operating Pressure | Up to 150 PSI (10.3 bar) at 23°C |
| Temperature Range | 0°C to 93°C (32°F to 200°F) |
| Cycle Time | 1–5 seconds depending on actuator size and air pressure |
| Mounting Standard | ISO 5211 |
| Applications | Fluid routing, mixing, chemical dosing, process automation |
| Compliance Standards | ASTM D1784, ISO 5211, CE (actuator), RoHS |
| Specification | Details |
|---|---|
| Product Name | PVDF Elbow 90° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 90 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (depends on size & type) |
| Connection Types | Socket weld, threaded, or flanged |
| Color | Natural White or Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 16 | 16 | 22 | 23 | 10 |
| 20 | 16 | 28 | 27 | 13 |
| 25 | 16 | 33 | 32 | 16 |
| 32 | 16 | 41 | 33 | 19 |
| 40 | 16 | 52 | 43 | 23 |
| 50 | 16 | 63 | 51 | 27 |
| 63 | 16 | 77 | 61 | 34 |
| 75 | 16 | 92 | 73 | 42 |
| 90 | 16 | 110 | 83 | 47 |
| 110 | 16 | 133 | 99 | 58 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
Dimensional graph
| Measurements | Technical Details | |||||
|---|---|---|---|---|---|---|
| d | PN | A | C | Z1 | Specification | Details |
| 16 | 16 | 22 | 23 | 10 | Product Name | PVDF Elbow 90° |
| 20 | 16 | 28 | 27 | 13 | Material | Polyvinylidene Fluoride (PVDF) |
| 25 | 16 | 33 | 32 | 16 | Angle | 90 Degrees |
| 32 | 16 | 41 | 33 | 19 | Size Range | 20mm to 315mm (custom sizes available) |
| 40 | 16 | 52 | 43 | 23 | Temperature Range | -40°C to +140°C |
| 50 | 16 | 63 | 51 | 27 | Pressure Rating | Up to 16 bar (depends on size & type) |
| 63 | 16 | 77 | 61 | 34 | Connection Types | Socket weld, threaded, or flanged |
| 75 | 16 | 92 | 73 | 42 | Color | Natural White or Translucent |
| 90 | 16 | 110 | 83 | 47 | Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| 110 | 16 | 133 | 99 | 58 | Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
