CPVC Short Radius 90° Bend
CPVC Short Radius 90° Bend

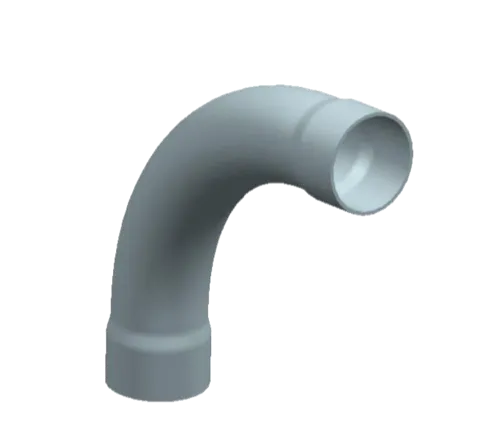

The CPVC Short Radius 90° Bend is a precision-engineered fitting designed to create a compact right-angle turn in CPVC piping systems. With a reduced radius compared to standard 90° elbows, this bend is ideal for installations with limited space where tighter bends are necessary. Made from high-performance Chlorinated Polyvinyl Chloride (CPVC), it delivers excellent thermal and chemical resistance, making it suitable for hot water distribution and aggressive fluid applications in industrial environments.
CPVC Short Radius 90° Bend
Key Features Of CPVC Short Radius 90° Bend
- Space-Saving Design: Short radius bend allows for tighter pipe routing in confined areas.
- High Heat Resistance: Withstands temperatures up to 93°C (200°F), suitable for hot water systems.
- Chemical Compatibility: Excellent resistance to corrosive chemicals, acids, and alkalis.
- Strong and Reliable: Rigid construction ensures durability and long-lasting performance.
- Corrosion-Free: Resists scaling, pitting, and rusting for clean fluid flow.
- Simple Installation: Compatible with solvent cement jointing for secure and leak-proof connections.
- Low Maintenance: Designed for long service life with minimal upkeep.
CPVC Short Radius 90° Bend
Technical Specifications of CPVC Short Radius 90° Bend
| Specification | Details |
| Product Name | CPVC Short Radius 90° Bend |
| Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Size Range | ½” to 4” (15 mm to 110 mm) |
| Bend Angle | 90 Degrees |
| Radius Type | Short Radius |
| Pressure Rating | SCH 80 / PN10 / PN16 (depending on standard and size) |
| Temperature Range | Up to 93°C (200°F) |
| Jointing Method | Solvent Weld |
| Standard Compliance | ASTM D2846 / ASTM F441 / DIN / ISO |
| Color | Light Grey / Cream |
| Applications | Industrial piping, hot & cold water systems, chemical lines, HVAC systems |
| Specification | Details |
|---|---|
| Product Name | PVDF Elbow 90° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 90 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (depends on size & type) |
| Connection Types | Socket weld, threaded, or flanged |
| Color | Natural White or Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 16 | 16 | 22 | 23 | 10 |
| 20 | 16 | 28 | 27 | 13 |
| 25 | 16 | 33 | 32 | 16 |
| 32 | 16 | 41 | 33 | 19 |
| 40 | 16 | 52 | 43 | 23 |
| 50 | 16 | 63 | 51 | 27 |
| 63 | 16 | 77 | 61 | 34 |
| 75 | 16 | 92 | 73 | 42 |
| 90 | 16 | 110 | 83 | 47 |
| 110 | 16 | 133 | 99 | 58 |

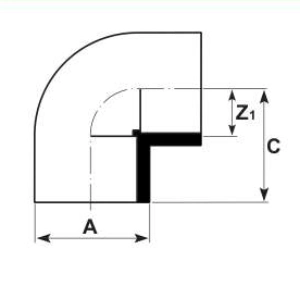

- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
Dimensional graph
| Measurements | Technical Details | |||||
|---|---|---|---|---|---|---|
| d | PN | A | C | Z1 | Specification | Details |
| 16 | 16 | 22 | 23 | 10 | Product Name | PVDF Elbow 90° |
| 20 | 16 | 28 | 27 | 13 | Material | Polyvinylidene Fluoride (PVDF) |
| 25 | 16 | 33 | 32 | 16 | Angle | 90 Degrees |
| 32 | 16 | 41 | 33 | 19 | Size Range | 20mm to 315mm (custom sizes available) |
| 40 | 16 | 52 | 43 | 23 | Temperature Range | -40°C to +140°C |
| 50 | 16 | 63 | 51 | 27 | Pressure Rating | Up to 16 bar (depends on size & type) |
| 63 | 16 | 77 | 61 | 34 | Connection Types | Socket weld, threaded, or flanged |
| 75 | 16 | 92 | 73 | 42 | Color | Natural White or Translucent |
| 90 | 16 | 110 | 83 | 47 | Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| 110 | 16 | 133 | 99 | 58 | Applications | Chemical plants, water treatment, semiconductors, pharmaceuticals |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
