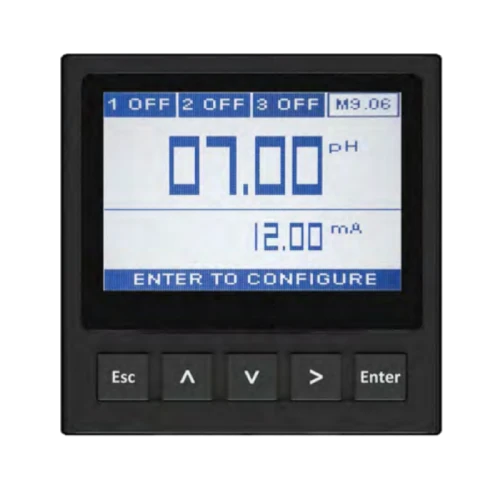

pH/ORP Monitor & Transmitter – FLS M9.06
The FLS M9.06 is a high-performance pH/ORP monitor and transmitter engineered to meet the requirements of diverse industrial applications. Featuring a 4” full graphic multicolor display with bright backlight, it ensures clear visibility of measurements and status even from a long distance. An intuitive tutorial software enables quick, mistake-free setup of all parameters, while automatic buffer recognition and in-line adjustment provide precise and reliable calibration under any condition. The device also offers electrode condition diagnostics with practical tips to optimize probe performance, extending service life. A rear USB port supports simple software upgrades and customization services, both standard and tailored to specific needs. With its accuracy, reliability, and user-friendly design, the M9.06 is an ideal choice for process monitoring.
pH/ORP Monitor & Transmitter – FLS M9.06
Key Features Of pH/ORP Monitor & Transmitter – FLS M9.06
- Wide full graphic display
- Multicolor backlight visualization
- Help on board
- Automatic recognition of pH buffers
- In line adjustment
- Analog output for temperature remoting
- Mechanical relay for external device control
- Solid State Relays for programmable alarms
- USB port for software upgrading
Technical Details of pH/ORP Monitor & Transmitter – FLS M9.06
| Specification | Details |
|---|---|
| Associated sensors | FLS pH/ORP electrodes and FLS temperature sensors |
| Materials | Case: ABS; Display window: PC; Panel & Wall gasket: silicone rubber; Keypad: 5-button silicone rubber |
| Display | LC full graphic display; Backlight version: 3-colours; Backlight activation: User adjustable with 5 levels of timing |
| Update rate | 1 second |
| Enclosure | IP65 front |
| pH input range | -2÷16pH (according to the pH electrode applied) |
| pH measurement resolution | ± 0.01 pH |
| ORP input range | -2000÷ +2000mV (according to the ORP probe applied) |
| ORP measurement resolution | ± 1 mV |
| Temperature input range | -50÷150°C (-58÷302°F) (with Pt100-Pt1000) |
| Temperature measurement resolution | 0.1°C/°F (Pt1000); 0.5°C/°F (Pt100) |
| Supply Voltage | 12 to 24 VDC ± 10% regulated |
| Max Power Consumption | <300mA |
| Current Output | 2*; 4-20 mA, isolated, fully adjustable and reversible; Max loop impedance: 800 Ω @ 24 VDC – 250 Ω @ 12 VDC |
| Solid State Relay Output | 2*; User selectable as ON-OFF, Proportional frequency output, Proportional Pulse, Timed Pulse, Off; Optically isolated, 50 mA MAX sink, 24 VDC MAX pull-up voltage; Max pulse/min: 300; Hysteresis: User selectable |
| Relay Output | 2*; User selectable as ON-OFF, Proportional frequency output, Proportional Pulse, Timed Pulse, Off; Mechanical SPDT contact; Expected mechanical life (min. operations): 10⁷; Expected electrical life (min. operations): 10⁵ N.O./N.C.; Switching capacity: 5A/240VAC; Max pulse/min: 60; Hysteresis: User selectable |
| Operating temperature | -10 to +70°C (+14 to +158°F) |
| Storage temperature | -30 to +80°C (-22 to +176°F) |
| Relative humidity | 0 to 95% not condensing |
| Manufactured under | ISO 9001, ISO 14001 |
| Compliance | CE, RoHS Compliant, EAC |
| Part No. | Description / Name | Power Supply | Wire Power Technology | Sensor Input | Output | Weight (gr.) |
|---|---|---|---|---|---|---|
| M9.06.P1 | Panel mount pH/ORP monitor | 12 – 24 VDC | 3/4 wire | pH/ORP | 2*(4-20mA), 2*(S.S.R.), 2*(mech. relay) | 550 |
| M9.06.W1 | Wall mount pH/ORP monitor | 12 – 24 VDC | 3/4 wire | pH/ORP | 2*(4-20mA), 2*(S.S.R.), 2*(mech. relay) | 650 |
| M9.06.W2 | Wall mount pH/ORP monitor | 110 – 230 VAC | 3/4 wire | pH/ORP | 2*(4-20mA), 2*(S.S.R.), 2*(mech. relay) | 750 |
