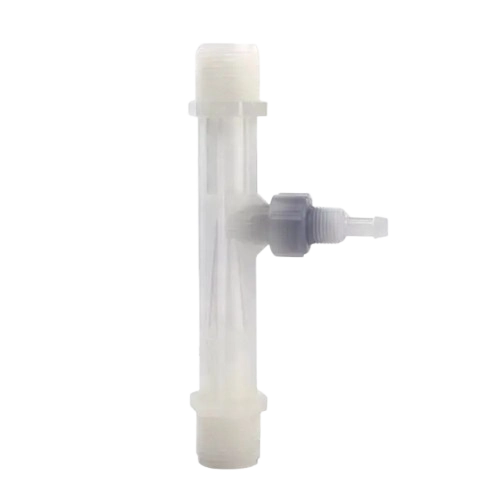

PVDF Venturi Injector
The PVDF Venturi Injector is a high-performance fluid handling device designed to introduce chemicals or gases into a fluid stream using differential pressure. Made from Polyvinylidene Fluoride (PVDF), the injector provides exceptional chemical resistance, making it ideal for aggressive and corrosive environments. Its simple, maintenance-free design uses the Venturi principle to create a vacuum that draws in and mixes additives without the need for moving parts. It is commonly used in water treatment, chemical dosing, agriculture, and industrial fluid systems.
PVDF Venturi Injector
Key Features Of PVDF Venturi Injector
- Highly Chemical-Resistant: Suitable for acids, alkalis, and aggressive chemicals.
- Efficient Mixing: Uses Venturi action to ensure consistent and thorough injection.
- Durable PVDF Construction: Ensures long-term reliability in harsh environments.
- No Moving Parts: Reduces maintenance and operating costs.
- Compact and Lightweight: Easy to install in new or existing pipeline systems.
- High Temperature and Pressure Tolerance: Operates safely in demanding conditions.
- Corrosion-Resistant and UV-Stable: Perfect for outdoor or industrial applications
PVDF Venturi Injector
Technical Specifications of PVDF Venturi Injector
| Specification | Details |
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2” to 2” (custom sizes available) |
| Operating Pressure | Up to 10 bar (145 PSI) |
| Temperature Range | -20°C to +100°C |
| Connection Type | Threaded or socket weld |
| Vacuum Generation | Up to 70% vacuum depending on flow/pressure |
| Flow Rate Range | Varies by size; from 5 LPM to 300 LPM |
| Color | Natural white or translucent |
| Certifications | RoHS, REACH, FDA-compliant on request |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
