UPVC Socket

A UPVC Socket is a straight coupling pipe fitting used to connect two lengths of UPVC pipe in a secure and leak-proof manner. Designed for solvent cement jointing, the UPVC socket ensures a rigid and permanent connection within piping systems. It is widely used in plumbing, irrigation, chemical distribution, and industrial fluid handling applications due to its durability and chemical resistance.

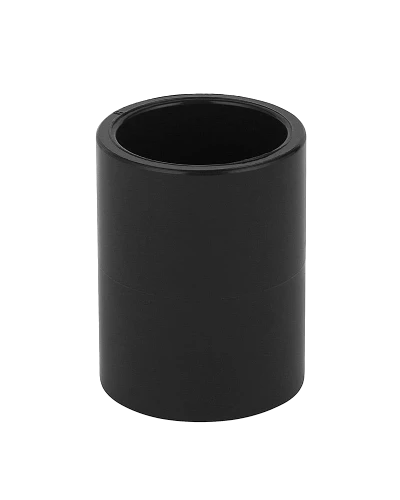

UPVC Socket

Key Features Of UPVC Socket

  • Strong and Durable: Offers a long service life with excellent mechanical strength.
  • Chemical and Corrosion Resistant: Ideal for transporting aggressive fluids.
  • Smooth Inner Surface: Reduces friction loss and supports efficient fluid flow.
  • Lightweight Design: Easy to handle and install.
  • Leak-Proof Connection: Ensures tight bonding when joined with solvent cement.
  • Non-Conductive and Non-Toxic: Suitable for electrical conduits and potable water applications.

Technical Details of UPVC Socket

Parameter Specification
Material UPVC (Unplasticized Polyvinyl Chloride)
Size Range ½” to 12” (15 mm to 315 mm)
Connection Type Solvent Weld Socket Ends
Standard Compliance ASTM D2466 / D1785, DIN, ISO
Operating Pressure Up to 10 bar (150 psi)
Temperature Range 0°C to 60°C (32°F to 140°F)
Color Generally Grey or White
Applications Plumbing, Water Supply, Irrigation, Chemical Processing
Technical Measurement of UPVC Socket

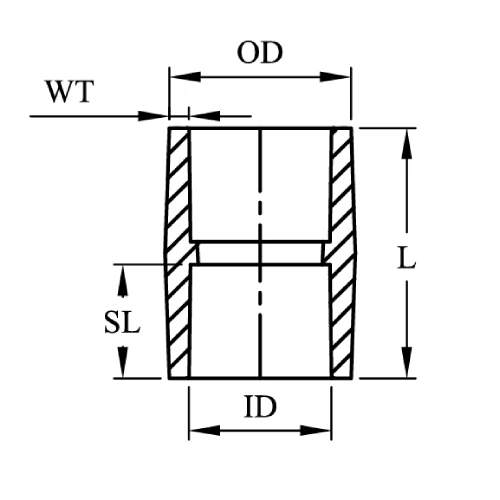

UPVC Socket_Coupler
Size (Inch) ID (mm) OD (mm) WT (mm) SL (mm) L (mm)
½ 21.64 29.10 3.73 22.23 47
¾ 26.97 34.79 3.91 25.40 54
1 33.78 42.88 4.55 28.58 60
1¼ 42.55 52.25 4.85 31.75 67
1½ 48.72 58.88 5.08 34.93 73
2 60.78 71.86 5.54 38.10 80
2½ 73.56 87.58 7.01 44.45 96
3 89.50 113.74 7.62 47.63 102
4 114.99 132.11 8.56 57.15 121
6 153.88 168.10 7.11 77.25 160

  • ID – Inner Diameter

  • OD – Outer Diameter

  • WT – Wall Thickness

  • SL – Socket Length

  • L – Total Length

UPVC Socket

Technical Specifications of UPVC Socket

Parameter Specification
Material UPVC (Unplasticized Polyvinyl Chloride)
Size Range ½” to 12” (15 mm to 315 mm)
Connection Type Solvent Weld Socket Ends
Standard Compliance ASTM D2466 / D1785, DIN, ISO
Operating Pressure Up to 10 bar (150 psi)
Temperature Range 0°C to 60°C (32°F to 140°F)
Color Generally Grey or White
Applications Plumbing, Water Supply, Irrigation, Chemical Processing

Custom Product Manufacturing Available

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
