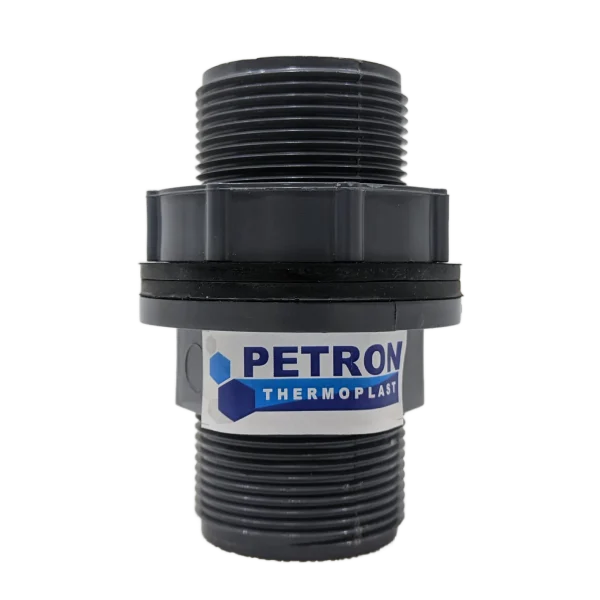

UPVC Tank Connector
The UPVC Tank Connector is a threaded fitting used to create a secure, leak-proof connection between a storage tank and a pipeline system. Made from high-quality Unplasticized Polyvinyl Chloride (UPVC), this connector is ideal for both inlet and outlet applications in tanks used for water, chemicals, or industrial fluids. It provides excellent chemical resistance, durability, and easy installation in a wide range of tank configurations.
UPVC Tank Connector
Key Features Of UPVC Tank Connector
- Leak-Proof Design: Ensures a tight seal between the tank and piping system.
- Durable & Rigid Construction: Offers high strength and long service life.
- Corrosion & Chemical Resistant: Suitable for use with aggressive fluids and corrosive environments.
- Easy Installation: Can be easily mounted on plastic or metal tanks.
- Versatile Use: Supports both inlet and outlet connections.
- Threaded Connection: Provides secure fitment with external or internal threading.
Technical Details of UPVC Tank Connector
| Parameter | Specification |
|---|---|
| Material | UPVC (Unplasticized Polyvinyl Chloride) |
| Connection Type | Threaded / Socket (varies by model) |
| Size Range | ½” to 4” (15 mm to 110 mm) |
| Operating Pressure | Up to 6 bar (90 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Installation Method | Through-tank hole with gasket and locking nut |
| Color | Typically Grey |
| Standards Compliance | ISO, DIN, ASTM |
| Size (Inch) | T (mm) | H (mm) | L (mm) | OD (mm) |
|---|---|---|---|---|
| ½″ | 16 | 12 | 22 | 21.3 |
| ¾″ | 19 | 14 | 25 | 26.7 |
| 1″ | 22 | 16 | 30 | 33.4 |
| 1¼″ | 25 | 18 | 34 | 42.2 |
| 1½″ | 29 | 19 | 38 | 48.3 |
| 2″ | 34 | 22 | 45 | 60.3 |
| 2½″ | 38 | 24 | 52 | 73.0 |
| 3″ | 42 | 26 | 58 | 89.0 |
| 4″ | 48 | 30 | 64 | 114.0 |
-
T – Thread Length
-
H – Nut Thickness
-
L – Socket Depth
-
OD – Outer Diameter
UPVC Tank Connector
Technical Specifications of UPVC Tank Connector
| Parameter | Specification |
| Material | UPVC (Unplasticized Polyvinyl Chloride) |
| Connection Type | Threaded / Socket (varies by model) |
| Size Range | ½” to 4” (15 mm to 110 mm) |
| Operating Pressure | Up to 6 bar (90 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Installation Method | Through-tank hole with gasket and locking nut |
| Color | Typically Grey |
| Standards Compliance | ISO, DIN, ASTM |
Custom Product Manufacturing Available
If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
