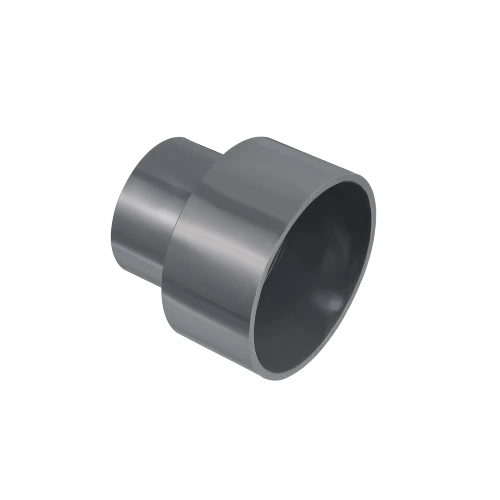

UPVC Vitroling Reducer Coupler

The UPVC Vitroling Reducer Coupler is a high-performance pipe fitting designed to connect two pipes of different diameters while maintaining a straight-line flow. Manufactured from durable Unplasticized Polyvinyl Chloride (UPVC), this reducer coupler is engineered for precision and strength in demanding fluid systems. It is ideal for applications in water supply, irrigation, chemical transport, and industrial piping networks where corrosion resistance and dimensional accuracy are critical.

UPVC Vitroling Reducer Coupler

Key Features Of UPVC Vitroling Reducer Coupler

  • Efficient Pipe Size Transition: Joins different pipe sizes seamlessly in a straight direction.
  • Rigid & Durable Structure: Withstands mechanical stress and high flow conditions.
  • Chemical & Corrosion Resistant: Suitable for aggressive chemicals and fluids.
  • Smooth Internal Surface: Reduces pressure loss and ensures smooth flow.
  • Leak-Proof Jointing: Compatible with solvent cement welding for secure connections.
  • Low Maintenance: Non-reactive material resists scaling and biofouling.

Technical Details of UPVC Vitroling Reducer Coupler

Parameter Specification
Material UPVC (Unplasticized Polyvinyl Chloride)
Type Reducer Coupler (Vitroling)
Size Range ½” × ¾” to 6” × 4” (15 mm × 20 mm to 160 mm × 110 mm)
Connection Type Solvent Weld Socket Ends
Operating Pressure Up to 10 bar (150 psi)
Temperature Range 0°C to 60°C (32°F to 140°F)
Color Typically Grey
Standards Compliance ASTM D2467, ISO, DIN
Technical Measurement of UPVC Vitroling Reducer Coupler
UPVC Reducer Coupler Diagram
Size (Inch) ID-1 (mm) OD-1 (mm) WT-1 (mm) SL-1 (mm) ID-2 (mm) OD-2 (mm) WT-2 (mm) SL-2 (mm) H (mm)
¾ x ½ 26.97 34.79 3.91 25.40 21.64 29.10 3.73 22.23 56
1 x ½ 33.78 42.88 4.55 28.58 21.64 29.10 3.73 22.23 66
1 x ¾ 33.78 42.88 4.55 28.58 26.97 34.79 3.91 25.40 65
1¼ x ½ 42.55 52.25 4.85 31.75 21.64 29.10 3.73 22.23 69
1¼ x ¾ 42.55 52.25 4.85 31.75 26.97 34.79 3.91 25.40 68
1¼ x 1 42.55 52.25 4.85 31.75 33.78 42.88 4.55 28.58 68
1½ x ½ 48.72 58.88 5.08 34.93 21.64 29.10 3.73 22.23 74
1½ x ¾ 48.72 58.88 5.08 34.93 26.97 34.79 3.91 25.40 76
1½ x 1 48.72 58.88 5.08 34.93 33.78 42.88 4.55 28.58 75
1½ x 1¼ 48.72 58.88 5.08 34.93 42.55 52.25 4.85 31.75 74
2 x ½ 60.78 71.86 5.54 38.10 21.64 29.10 3.73 22.23 85
2 x ¾ 60.78 71.86 5.54 38.10 26.97 34.43 3.73 25.40 85
2 x 1 60.78 71.86 5.54 38.10 33.78 42.88 4.55 28.58 85
2 x 1¼ 60.78 71.86 5.54 38.10 42.55 52.25 4.85 31.75 83
2 x 1½ 60.78 71.86 5.54 38.10 48.72 58.88 5.08 34.93 83
2½ x 2 73.56 87.58 7.01 44.45 60.78 71.86 5.54 38.10 104
3 x 2 89.31 105.55 16.24 48.63 60.78 88.54 27.76 48.93 104
3 x 2½ 89.51 104.75 7.62 47.63 73.38 83.70 5.16 44.45 107

  • ID-1 / OD-1 / WT-1 / SL-1 – Larger end dimensions

  • ID-2 / OD-2 / WT-2 / SL-2 – Smaller end dimensions

  • H – Overall Height

UPVC Vitroling Reducer Coupler

Technical Specifications of UPVC Vitroling Reducer Coupler

Parameter Specification
Material UPVC (Unplasticized Polyvinyl Chloride)
Type Reducer Coupler (Vitroling)
Size Range ½” × ¾” to 6” × 4” (15 mm × 20 mm to 160 mm × 110 mm)
Connection Type Solvent Weld Socket Ends
Operating Pressure Up to 10 bar (150 psi)
Temperature Range 0°C to 60°C (32°F to 140°F)
Color Typically Grey
Standards Compliance ASTM D2467, ISO, DIN

Custom Product Manufacturing Available

If you are searching for customized product designs that meet your requirements, don’t worry. Petron Thermoplast also offers custom product manufacturing services to meet the unique needs of various industries. Work with our expert engineers to create custom designs suited for your application.
