High Purity Pipe Fittings
At Petron Thermoplast FZ LLC, we specialize in providing High Purity Pipe Fittings designed for industries where contamination-free flow, chemical resistance, and superior cleanliness are crucial. Our fittings are manufactured using ultra-pure thermoplastic materials such as PVDF (Polyvinylidene Fluoride), PFA (Perfluoroalkoxy), and PTFE (Polytetrafluoroethylene)—ensuring excellent purity, corrosion resistance, and performance stability.
We supply a complete range of high purity fittings used in semiconductor, pharmaceutical, biotechnology, chemical processing, and food industries. All fittings are produced in controlled cleanroom environments and comply with global standards for high purity systems, including USP Class VI, FDA, and ASTM certifications.
High Purity Pipe Fittings are specialized components designed for ultra-clean and contamination-sensitive fluid transfer systems. They ensure particle-free, corrosion-resistant, and sterile flow paths, critical for semiconductor, life sciences, and chemical applications. Made from non-leaching, chemically inert, and thermally stable polymers, these fittings prevent contamination and maintain the integrity of high-purity media, including ultrapure water, acids, and gases.
At Petron Thermoplast FZ LLC, our High Purity Pipe Fittings are manufactured to meet the most demanding cleanliness, performance, and safety standards required in semiconductor, pharmaceutical, and bioprocessing applications. Each fitting undergoes precision manufacturing and cleanroom processing to ensure ultra-low levels of particles, extractables, and organic residues.
Below is the comprehensive technical specification data for our High Purity Fitting range:
| Parameter | Specification / Details |
|---|---|
| Product Name | High Purity Pipe Fittings |
| Material Options | PVDF (Polyvinylidene Fluoride), PFA (Perfluoroalkoxy), PTFE (Polytetrafluoroethylene), PP (Polypropylene), E-CTFE (Halar) |
| Manufacturing Process | Injection Molding / CNC Machining in ISO Class 100–1000 Cleanroom |
| Size Range | 1/4” to 4” (6 mm to 110 mm) |
| Connection Types | Welded, Flared, Threaded, Compression, Socket, or Fusion |
| Operating Pressure | Up to 16 bar (232 psi) depending on size and material |
| Operating Temperature Range | -40°C to +260°C (Material dependent) |
| Surface Roughness (Ra) | ≤ 0.25 µm (ultra-smooth internal finish) |
| Density | 1.78 g/cm³ (PVDF), 2.15 g/cm³ (PFA), 2.2 g/cm³ (PTFE) |
| Tensile Strength | 35–45 MPa (depending on polymer) |
| Melting Point | 170°C (PVDF), 305°C (PFA), 327°C (PTFE) |
| Color Options | Natural White / Translucent |
| Leak Integrity | ≤ 1 × 10⁻⁶ atm·cc/sec (Helium Leak Tested) |
| Electrical Properties | High dielectric strength and low conductivity |
| Chemical Resistance | Inert to acids, alkalis, and solvents |
| Compliance & Standards | ASTM D3222, ASTM F423, SEMI F57, ISO 10993, USP Class VI, FDA 21 CFR 177.1550 |
| Packaging | Cleanroom double-bagged and vacuum-sealed |
| Traceability | Batch-coded and laser-marked for material tracking |
| Quality Assurance | 100% inspected for visual, dimensional, and contamination criteria |
| Property | PVDF | PFA | PTFE |
|---|---|---|---|
| Max. Temperature (°C) | 140 | 260 | 260 |
| Chemical Resistance | Excellent | Outstanding | Outstanding |
| Surface Smoothness | High | Ultra-High | Ultra-High |
| Purity Level | Semiconductor Grade | Semiconductor Grade | Pharmaceutical Grade |
| Transparency | Semi-Transparent | Transparent | Opaque |
| Cost | Medium | High | High |
| Nominal Size (Inch) | OD (mm) | Wall Thickness (mm) |
|---|---|---|
| 1/4" | 6.35 | 1.0 |
| 3/8" | 9.53 | 1.3 |
| 1/2" | 12.7 | 1.6 |
| 3/4" | 19.05 | 2.0 |
| 1" | 25.4 | 2.5 |
| 1-1/2" | 38.1 | 3.0 |
| 2" | 50.8 | 3.5 |
| 3" | 76.2 | 4.5 |
| 4" | 101.6 | 6.0 |
At Petron Thermoplast FZ LLC, our High Purity Pipe Fittings are engineered to deliver exceptional performance, reliability, and cleanliness in ultra-critical fluid handling systems. Designed for applications that demand absolute purity — such as semiconductor, pharmaceutical, food, and biotech industries — our fittings combine advanced materials, precision manufacturing, and cleanroom-grade finishing.
Below are the key features that make our high purity fittings stand out in the global market:
1. Ultra-High Purity Construction
- Manufactured using premium-grade resins such as PFA, PVDF, PTFE, and PP, ensuring zero contamination and ultra-low extractables.
- Suitable for ultrapure water (UPW), acids, solvents, and other high-purity chemicals.
2. Smooth, Non-Contaminating Internal Surfaces
- Achieves surface roughness as low as Ra ≤ 0.25 µm, preventing particle accumulation and bacterial growth.
- Ensures consistent laminar flow and minimal pressure drop.
3. Excellent Chemical & Corrosion Resistance
- Inert to strong acids, alkalis, and organic solvents.
- Ideal for handling highly corrosive fluids in semiconductor and chemical process industries.
4. Precision Engineering & Dimensional Accuracy
- Produced using CNC machining and injection molding under ISO Class 100–1000 cleanroom environments.
- Guarantees precise fit, leak-proof performance, and consistent repeatability in every batch.
5. Superior Thermal and Mechanical Stability
- Withstands temperatures from -40°C to +260°C depending on material type.
- Maintains structural integrity and flexibility even under thermal cycling and pressure variations.
6. Leak-Proof & Reliable Connections
- Available in welded, flared, compression, or threaded end connections.
- 100% tested for leak integrity (≤ 1×10⁻⁶ atm·cc/sec) using helium testing methods.
7. Cleanroom Manufactured & Packaged
- Produced in contamination-controlled cleanroom facilities.
- Each fitting is double-bagged, vacuum-sealed, and traceable for guaranteed purity and compliance.
8. Full Compliance with International Standards
- Conforms to ASTM D3222, SEMI F57, ISO 10993, USP Class VI, and FDA 21 CFR 177.1550 standards.
- Certified for biocompatibility, extractable limits, and particle cleanliness.
9. Wide Range of Configurations

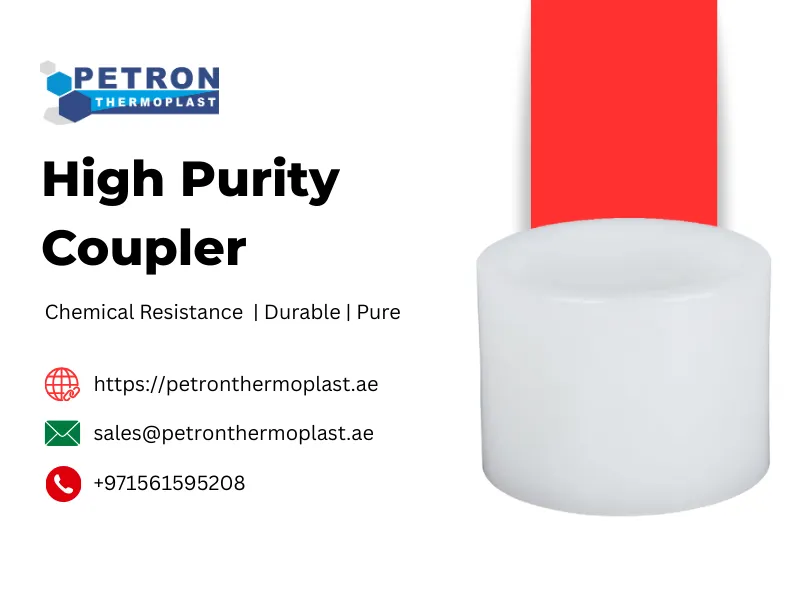

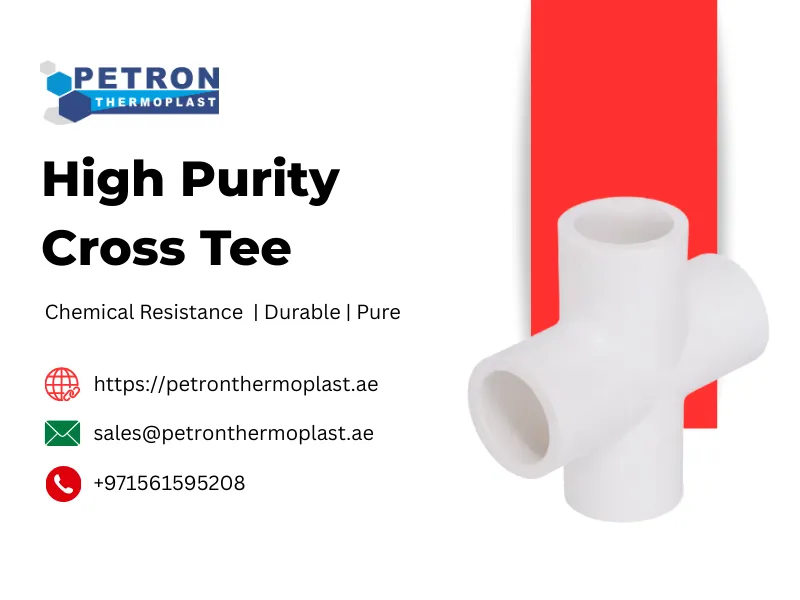

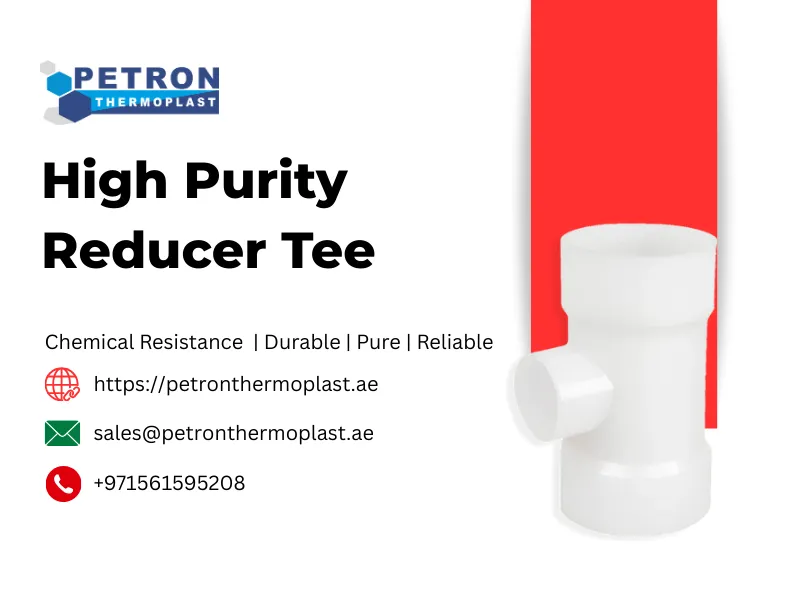

- Available in elbows, tees, unions, reducers, couplings, and customized geometries.
- Supports integration with high-purity piping, valves, and fluid control systems.
High Purity Pipe Fittings are essential components in systems that demand exceptional cleanliness, chemical resistance, and reliability. These fittings are engineered to maintain the integrity of ultra-pure media, ensuring no contamination during transportation or processing. At Petron Thermoplast FZ LLC, our fittings are widely used in industries where purity, safety, and performance are critical to success.
Below are the major application areas of High Purity Pipe Fittings:
1. Semiconductor Manufacturing
- Used extensively in ultrapure water (UPW) systems, chemical distribution, and acid waste drainage.
- Prevents metallic or particulate contamination during chip fabrication processes.
- Ensures compatibility with aggressive chemicals such as HF, HCl, and H₂SO₄.
2. Pharmaceutical & Biotechnology Industry
- Facilitates sterile fluid transfer in drug manufacturing, bioprocessing, and formulation lines.
- Meets strict regulatory standards such as USP Class VI, FDA, and ISO 10993.
- Ensures contamination-free transfer of purified water, WFI (Water for Injection), and buffer solutions.
3. Food & Beverage Processing
- Ideal for conveying process water, flavoring agents, and cleaning solutions without contamination.
- Maintains hygienic standards required by food-grade and sanitary processing systems.
- Resistant to CIP (Cleaning-In-Place) and SIP (Sterilization-In-Place) procedures.
4. Chemical Processing & Acid Handling
- Widely used in the chemical, electroplating, and surface treatment industries.
- Suitable for handling highly corrosive acids, bases, and solvents under high temperature and pressure.
- Provides long-term resistance to chemical degradation and stress cracking.
5. Water Treatment & Ultrapure Water Systems
- Integral to RO (Reverse Osmosis) and DI (Deionized) water systems in laboratories and industrial facilities.
- Ensures consistent water quality and prevents recontamination of purified streams.
6. Laboratory & Analytical Equipment
- Used in analytical instrumentation, gas chromatography, and chemical testing systems.
- Provides leak-free, contamination-free flow paths for precise measurements and results.
7. Solar & Microelectronics Industry
- Applied in thin-film solar cell production and LED manufacturing systems.
- Ensures pure fluid and gas transfer in sensitive production environments.
8. Medical Device Manufacturing
- Facilitates clean, inert fluid handling in medical component assembly and sterile packaging lines.
- Compliant with medical-grade purity and biocompatibility requirements.
9. Aerospace and Defense
- Used in precision fluid transfer and cooling systems for aircraft, spacecraft, and defense electronics.
- Offers reliability under extreme pressure, temperature, and vibration conditions.
10. Research & Development Laboratories
- Supports high-accuracy testing setups requiring pure, inert flow paths for chemical and material research.
High Purity Pipe Fittings are designed to deliver unmatched cleanliness, chemical resistance, and mechanical integrity, making them indispensable for industries that demand ultra-clean fluid handling systems. At Petron Thermoplast FZ LLC, our fittings are manufactured from premium-grade materials like PVDF, PFA, PTFE, and PP-Natural, ensuring exceptional reliability and purity performance in every application.
Below are the major advantages of High Purity Pipe Fittings supplied by Petron Thermoplast:
1. Superior Chemical Resistance
High Purity Fittings are compatible with a wide range of acids, bases, and solvents, making them ideal for semiconductor, chemical processing, and pharmaceutical applications.
They resist degradation even when exposed to aggressive chemicals such as HF, H₂SO₄, HCl, and NaOH, ensuring longer service life and reduced maintenance.
2. Ultra-Clean and Contamination-Free Flow
Manufactured under controlled cleanroom environments, these fittings ensure zero contamination during fluid transfer.
Their smooth, polished internal surfaces prevent bacterial growth, leaching, or particle shedding, maintaining ultra-pure fluid integrity in sensitive processes.
3. Excellent Thermal Stability
High Purity Pipe Fittings can withstand a broad temperature range — from cryogenic conditions to high-heat applications.
This makes them suitable for processes involving hot acids, solvents, and ultrapure water systems.
4. High Corrosion and Erosion Resistance
The fittings are non-metallic and inert to corrosive chemicals, ensuring they do not rust or corrode like metal components.
This advantage provides a longer lifespan and lower total cost of ownership.
5. Smooth Interior Surface Finish
The mirror-smooth internal surface minimizes friction loss and prevents build-up of contaminants or residue.
This results in enhanced fluid velocity, efficient flow, and easy cleaning, critical for ultrapure and sanitary systems.
6. Lightweight and Easy Installation
High Purity Fittings are lightweight, allowing for easy handling, transportation, and installation compared to stainless steel systems. They also offer fast welding, joining, or flanging options, saving time and labor costs.
7. Excellent Mechanical Strength and Pressure Rating
Despite their lightweight nature, these fittings offer superior strength, rigidity, and burst pressure capacity, ensuring durability even under demanding operating conditions.
8. Compliant with International Standards
All High Purity Pipe Fittings from Petron Thermoplast meet or exceed standards like:
- ASTM D3222, ISO 10993, FDA, and USP Class VI
- Ensuring global compatibility and regulatory compliance for high-purity applications.
9. Cost-Effective and Long-Lasting Solution
Their low maintenance, resistance to scaling, and non-corrosive nature make High Purity Fittings highly economical over the long term. They reduce downtime, extend system lifespan, and minimize replacement frequency.
10. Customizable Design Options
Petron Thermoplast offers custom-designed fittings based on project requirements — including size, wall thickness, shape, and connection type — ensuring seamless integration into your process systems.
11. Environmentally Friendly and Recyclable
Made from eco-safe, recyclable polymers, High Purity Fittings align with sustainable engineering practices, reducing the environmental footprint of industrial operations.
12. Proven Performance Across Critical Industries
Used successfully in semiconductors, biopharmaceuticals, food processing, and water treatment, these fittings deliver reliability and performance even in the most demanding environments.
We are a leading industrial plastics supplier in the UAE, committed to delivering excellence in product quality and customer satisfaction.
Wide range of metal
Custom cut-to-size
and fabrication services
Certified quality
ISO and FDA-approved materials
Ready stock available
for quick supply
On-time delivery
across UAE, GCC, and Africa
Expert technical support
for material selection
Customization & Processing Options
Petron Thermoplast LLC offers full customization options to suit your exact project needs
- CNC machining and turning
- Laser cutting and routing
- Precision milling and drilling
- Thermoforming and bending
- Edge finishing and polishing
- Custom sheet thickness and dimensions
- Prototype and batch production services
All our high purity fittings undergo rigorous testing procedures:
- Visual & Dimensional Inspection
- Surface Roughness & Particle Testing
- Hydrostatic Pressure Test (per ASTM D1599)
- Chemical Compatibility Test
- Leak & Stress Crack Resistance Test
- Cleanroom Packaging Validation
Semiconductor & Electronics Manufacturing
Pharmaceutical & Biotech Facilities
Food & Beverage Processing Plants
Chemical & Petrochemical Industries
Water & Wastewater Treatment Plants
Laboratories & Cleanroom Facilities
Solar Panel & Renewable Energy Production
Serving All Emirates in the UAE
We supply and deliver PVDF material solutions to all major regions across the UAE, including:
- Dubai
- Abu Dhabi
- Sharjah
- Ajman
- Fujairah
- Ras Al Khaimah
- Umm Al Quwain
No matter your location or project size, we ensure on-time delivery and consistent product quality.
Conclusion
High Purity Pipe Fittings from Petron Thermoplast FZ LLC are engineered for maximum cleanliness, corrosion resistance, and reliability. Whether you require fittings for semiconductor process lines, ultrapure water systems, or pharmaceutical applications, our products ensure zero contamination and long-term performance.
As a leading supplier in the UAE, we provide superior quality, fast delivery, and expert engineering support—making us your trusted partner for high-purity piping systems across diverse industries.
A: Common materials include PVDF, PFA, and PTFE, offering chemical resistance and ultra-pure performance.
A: Yes, all fittings are SEMI F57 and ASTM compliant, suitable for ultrapure water and chemical systems.
A: Absolutely. We provide CNC-machined and cleanroom-molded custom fittings based on client specifications.
A: Yes, depending on the material, fittings can handle up to 260°C and 16 bar pressure.
A: Yes. Petron Thermoplast FZ LLC supplies high purity fittings globally, with fast delivery to the Middle East, Africa, and Asia.
