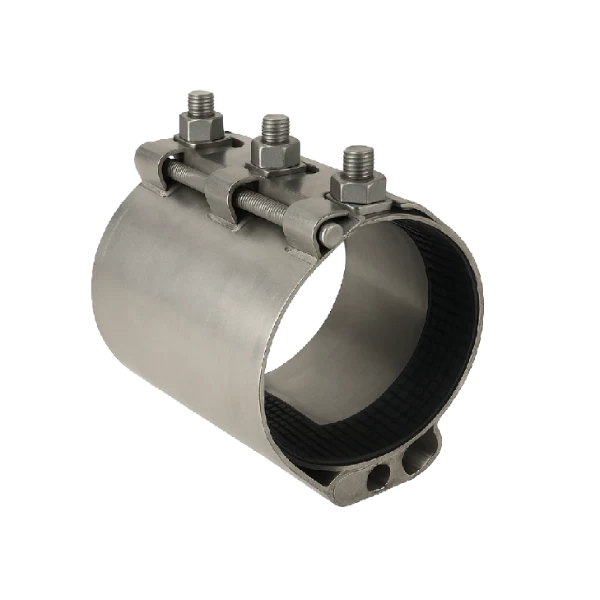

GRIP-L Clamp – Axial Restraint Pipe Coupling Clamp
The GRIP-L Clamp, technically known as an Axial Restraint Pipe Coupling Clamp, is a stainless steel pipe repair and coupling solution designed for high-pressure and critical applications. Unlike standard pipe repair clamps that only provide sealing, the GRIP-L Clamp delivers both leak-proof sealing and axial restraint, ensuring the pipe ends are securely gripped and prevented from axial movement. This dual functionality makes the GRIP-L Clamp a preferred choice in oil & gas, water supply, chemical processing, marine, and power plant industries, where pipeline safety and reliability are essential.
Features of Clamps
- Dual function design: Provides sealing + axial restraint
- High strength SS304/SS316 body for durability and corrosion resistance
- 360° leak-proof sealing with EPDM/NBR gaskets
- Withstands surge pressure and mechanical loads
- Quick bolt-on installation without welding or hot work
- Reusable and long-lasting, service life up to 25 years
Additional Data
| Parameter | Details |
|---|---|
| Technical Name | Axial Restraint Pipe Coupling Clamp |
| Body Material | Stainless Steel SS304 / SS316 |
| Sealing Element | EPDM / NBR Rubber Gasket |
| Design Feature | Axial restraint with gripping teeth / rings to prevent pipe pull-out |
| Pressure Rating | Up to 25 bar (depending on size & application) |
| Temperature Range | -20°C to +120°C |
| Pipe Compatibility | Steel, Ductile Iron, PVC, GRP, HDPE pipes |
| Installation | Bolt-on type, no welding required |
| Corrosion Resistance | High, suitable for marine & chemical applications |

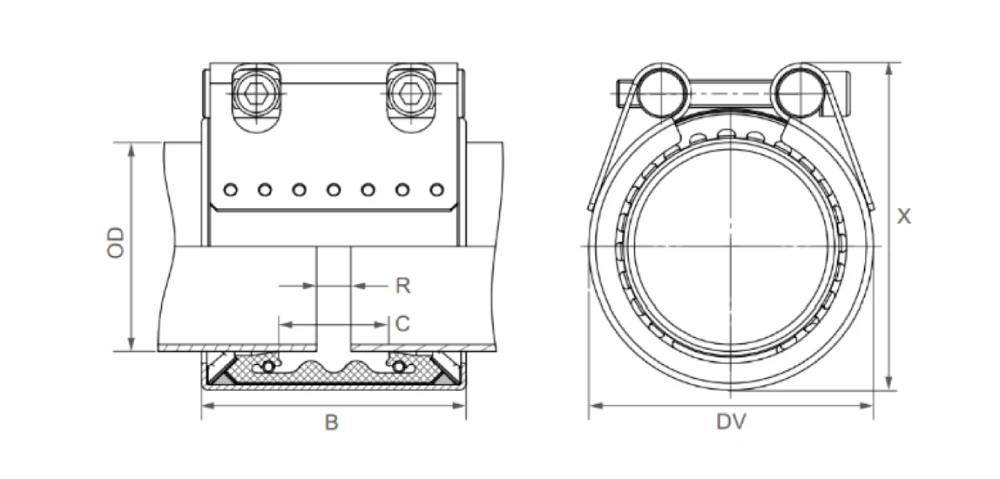

Engineering Data
| Pipe OD (mm) | Clamping Range (mm) | Max Pressure PN (bar) | Constant PN (bar) | Clamp Width B (mm) | Body Height C (mm) | Distance DV (mm) | Length X (mm) | Radial Tolerance (mm) | Torque (Nm) | Allen Key Size (mm) | Thread (Metric) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30.0 | 29.5 – 30.5 | 67 | 16 | 46/67 | 18 | 47 | 56 | 5 | 10 | 6 | M8 |
| 33.7 | 33.2 – 34.2 | 62 | 16 | 46/67 | 18 | 52 | 63 | 5 | 10 | 6 | M8 |
| 38.0 | 37.5 – 38.5 | 58 | 16 | 61 | 19 | 58 | 73 | 5–10 | 15 | 6 | M8 |
| 42.4 | 41.9 – 42.9 | 53 | 16 | 61 | 20 | 62 | 76 | 5–10 | 15 | 6 | M8 |
| 48.3 | 47.8 – 48.8 | 44 | 16 | 77 | 32 | 77 | 92 | 5–10 | 15 | 6 | M8 |
| 60.3 | 59.7 – 60.9 | 37 | 16 | 77 | 32 | 82 | 95 | 5–25 | 15 | 6 | M8 |
| 73.0 | 72.2 – 73.8 | 56 | 16 | 94 | 39 | 95 | 117 | 5–25 | 35 | 8 | M10 |
| 88.9 | 88.0 – 89.8 | 41 | 16 | 94 | 39 | 117 | 123 | 5–25 | 35 | 8 | M10 |
| 104.0 | 103.0 – 105.0 | 37 | 16 | 94 | 39 | 133 | 151 | 5–25 | 35 | 8 | M10 |
| 114.3 | 113.2 – 115.4 | 34 | 16 | 94 | 39 | 139 | 157 | 5–10 | 35 | 8 | M10 |
| 129.0 | 127.7 – 130.3 | 33 | 16 | 108 | 43 | 160 | 182 | 5–15 | 60 | 10 | M12 |
| 139.7 | 138.3 – 141.1 | 32 | 16 | 109 | 43 | 168 | 191 | 5–15 | 60 | 10 | M12 |
| 154.0 | 152.5 – 155.5 | 32 | 16 | 109 | 51 | 186 | 210 | 5–15 | 60 | 10 | M12 |
| 168.3 | 166.6 – 170.0 | 29 | 16 | 109 | 43 | 200 | 220 | 5–15 | 60 | 10 | M12 |
| 219.1 | 216.9 – 221.3 | 26 | 16 | 150 | 60 | 259 | 288 | 5–35 | 100 | 14 | M16 |
Applications
The Axial Restraint Pipe Coupling Clamp is used in pipelines where pressure, vibration, or thermal expansion demand both secure coupling and leak prevention:
Water Supply & Wastewater
- Repairing and restraining water mains and distribution pipelines
- Suitable for underground and above-ground water lines
Oil & Gas Industry
- Emergency coupling of onshore/offshore oil pipelines
- Prevents pull-out in gas distribution networks under high pressure
Chemical & Petrochemical Plants
- Resistant to acids, alkalis, and solvents
- Secures pipelines in hazardous chemical environments
Food & Beverage Industry
- Hygienic stainless steel design for dairy, beverage, and potable water lines
- Leak-proof repair while maintaining product purity
5. Marine & Offshore Industry
- Repairs for seawater intake pipes, ballast systems, and offshore platforms.
- Designed for harsh saltwater environments.
- 316L stainless steel ensures long-term resistance to chloride attack.
Power Plants & Marine Applications
- Used in steam, cooling water, and fuel lines
- Marine-grade clamps ensure reliability in seawater and ballast systems
Benifits of Clamps
Sealing + Restraint in One Clamp
prevents leaks and pipe pull-out
Handles High Pressure (up to 25 bar)
suitable for critical pipelines
No Welding Required
safe and easy installation
Corrosion Resistant
ideal for marine and chemical environments
Universal Fit
works with metal and plastic pipes
Cost-Effective & Reliable
minimizes downtime, extends pipeline life
