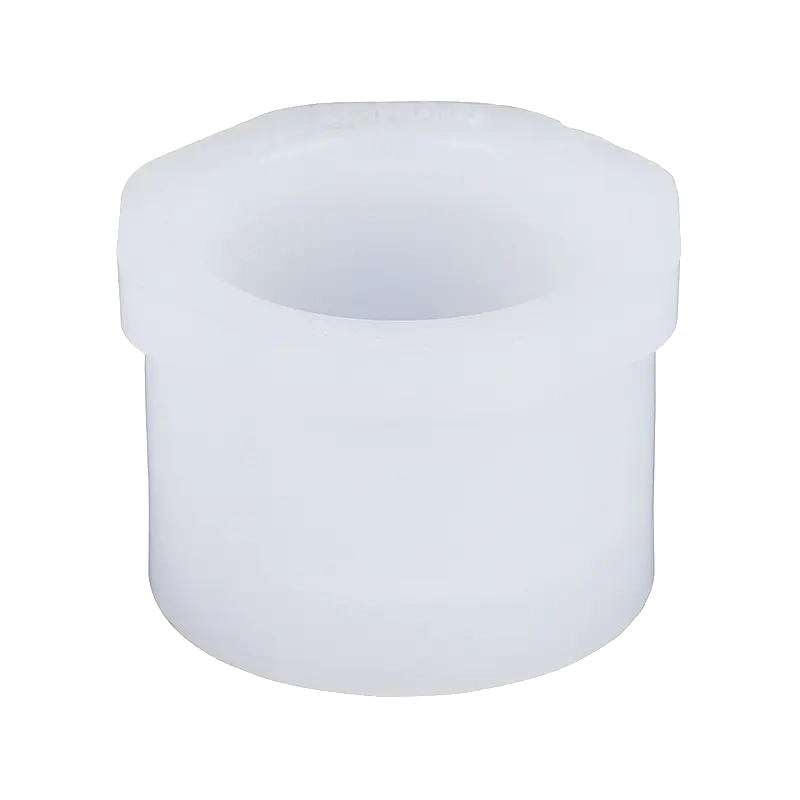

PVDF Reducer Bush
The PVDF Reducer Bush is a high-performance fitting used to reduce the diameter between two different-sized pipes or fittings in PVDF piping systems. Manufactured from Polyvinylidene Fluoride (PVDF), this reducer bush is engineered for use in highly corrosive environments where purity, chemical resistance, and mechanical durability are critical. Its compact design allows for space-saving installations while maintaining secure, leak-proof connections
PVDF Reducer Bush
Key Feature of PVDF Reducer Bush
- Superior Chemical Resistance: Withstands harsh acids, alkalis, and solvents.
- High-Purity Material: Made from virgin-grade PVDF for contamination-sensitive applications.
- Thermally Stable: Performs reliably in high-temperature fluid systems (up to 120°C).
- Strong and Durable: Resistant to impact, corrosion, and mechanical wear.
- Compact Design: Facilitates easy transitions between pipe sizes without taking up much space.
- UV and Weather Resistant: Suitable for both indoor and outdoor installations.
- Ease of Installation: Lightweight and easy to handle during assembly.
| Specification | Details |
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2″ × 3/8″ to 4″ × 2″ (custom sizes available) |
| Connection Type | Socket weld, threaded options (BSP/NPT) |
| Operating Pressure | Up to 16 bar (232 PSI) |
| Temperature Range | -20°C to +120°C |
| Color | Natural white / translucent |
| Compliance Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |
Customization & Processing Options
Customizations Option Available for PVDF Reducer Bush
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
