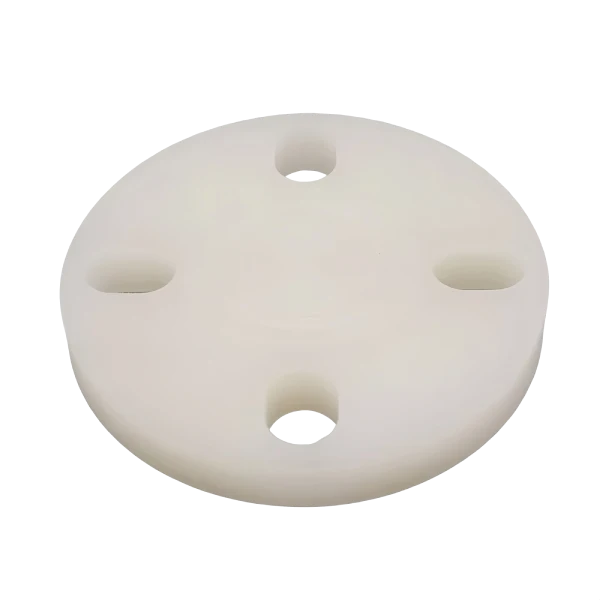

PVDF Stub Flange
The PVDF Stub Flange is a specialized pipe fitting used in conjunction with a backing ring to create a secure and leak-proof flanged connection in a PVDF piping system. Made from Polyvinylidene Fluoride (PVDF), this component is designed for applications that demand exceptional chemical resistance, high purity, and long-term durability. PVDF stub flanges are ideal for corrosive fluid systems and ultrapure applications across industries such as chemical processing, pharmaceuticals, semiconductors, and water treatment.
PVDF Stub Flange
Key Feature of PVDF Stub Flange
- High Chemical Resistance: Resistant to aggressive chemicals, acids, and solvents.
- High-Purity Material: Manufactured using virgin-grade PVDF, suitable for cleanroom and ultrapure systems.
- Secure Flanged Connection: Designed for use with a backing ring to provide a robust and leak-free joint.
- Thermal Stability: Performs reliably in temperatures up to 120°C.
- UV and Weather Resistant: Excellent resistance to UV rays and outdoor environments.
- Durable Construction: Withstands mechanical stress, corrosion, and thermal cycling.
- Easy Installation: Compatible with standard PVDF pipes and fittings for seamless integration.
Technical Details of PVDF Stub Flange
| Specification | Details |
|---|---|
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2″ to 12″ (DN15 to DN300) |
| Connection Type | Stub end for backing ring/flange joint |
| Temperature Range | -20°C to +120°C |
| Operating Pressure | Up to 16 bar (232 PSI) |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Color | Natural (translucent white) |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |
Technical Measurement of PVDF Stub Flange
| d | DN | PN | d3 | b | H | Z | d5 |
|---|---|---|---|---|---|---|---|
| 20 | 15 | 16 | 27 | 7 | 20 | 6 | 45 |
| 25 | 20 | 16 | 34 | 9 | 22 | 6 | 58 |
| 32 | 25 | 16 | 41 | 10 | 25 | 6 | 68 |
| 40 | 32 | 16 | 50 | 11 | 27 | 6 | 78 |
| 50 | 40 | 16 | 61 | 12 | 30 | 6 | 88 |
| 63 | 50 | 16 | 76 | 14 | 34 | 6 | 102 |
| 75 | 65 | 16 | 90 | 16 | 38 | 7 | 122 |
| 90 | 80 | 16 | 108 | 17 | 44 | 8 | 138 |
| 110 | 100 | 16 | 131 | 18 | 50 | 8 | 158 |
- d – Outer Diameter of Pipe (mm)
- DN – Nominal Diameter (in mm)
- PN – Pressure Nominal (in bar)
- d3 – Bolt Circle Diameter (PCD)
- b – Flange Thickness
- H – Total Height of the Flange
- Z – Thread Depth or Socket Depth
- d5 – Outer Diameter of the Flange
| Specification | Details |
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2″ to 12″ (DN15 to DN300) |
| Connection Type | Stub end for backing ring/flange joint |
| Temperature Range | -20°C to +120°C |
| Operating Pressure | Up to 16 bar (232 PSI) |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Color | Natural (translucent white) |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |
Customization & Processing Options
Customizations Option Available for PVDF Stub Flange
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
