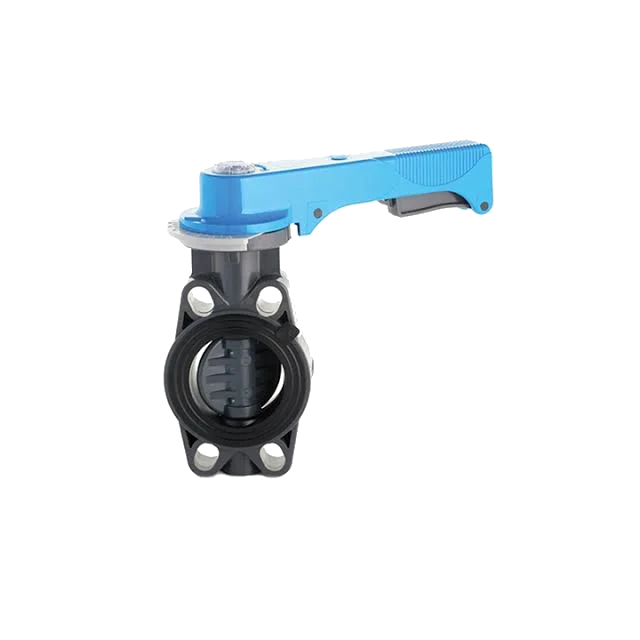

UPVC Butterfly Valve
A UPVC Butterfly Valve is a quarter-turn rotational motion valve used to regulate or isolate the flow of liquids in a piping system. Constructed from Unplasticized Polyvinyl Chloride (UPVC), this valve is highly resistant to corrosion and chemicals, making it ideal for use in industrial applications involving aggressive media. The valve features a circular disc mounted on a central shaft, which rotates to open or close the flow path with minimal effort. It is lightweight, easy to install, and suitable for both manual and actuated operations.
UPVC Butterfly Valve
- Corrosion and Chemical Resistance: Suitable for handling acids, alkalis, and other corrosive fluids.
- Compact and Lightweight: Facilitates easy installation and space-saving in pipelines.
- Quick Quarter-Turn Operation: Enables fast shutoff and flow control.
- Tight Sealing: Equipped with high-quality elastomer seals (EPDM or Viton) for reliable leak-proof performance.
- Low Operating Torque: Reduces wear on components and makes manual operation effortless.
- Versatile Installation: Can be mounted between flanges in horizontal or vertical pipelines.
| Parameter | Specification |
| Body Material | UPVC (Unplasticized Polyvinyl Chloride) |
| Disc Material | UPVC |
| Shaft Material | Stainless Steel / UPVC |
| Seal Material | EPDM / Viton |
| Size Range | 1½” to 12” (40 mm to 315 mm) |
| Connection Type | Wafer Type, Flanged |
| Operating Pressure | Up to 10 bar (150 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Operation Method | Manual Lever / Gear Operated / Actuated |
| Standards Compliance | ASTM D1784, ISO, DIN |
Customization & Processing Options
Customizations Option Available for UPVC Butterfly Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
