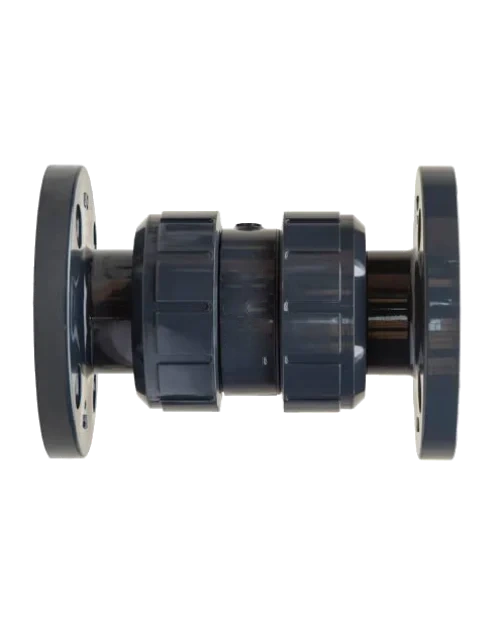

UPVC Flanged Check Valve
The UPVC Flanged Check Valve is a one-way flow control valve designed to prevent backflow in pipeline systems. Made from high-grade Unplasticized Polyvinyl Chloride (UPVC), this valve offers exceptional resistance to chemicals and corrosion, making it ideal for aggressive or corrosive fluid applications. It features a robust flanged end design for secure and leak-free installation in industrial systems. The internal check mechanism ensures smooth operation with minimal pressure drop and reliable sealing under all flow conditions.
UPVC Flanged Check Valve
Key Feature of UPVC Flanged Check Valve
- Backflow Prevention: Automatically stops reverse flow to protect pumps and equipment.
- Flanged Ends: Secure and easy connection to flanged pipelines with standard drilling patterns.
- Chemical Resistant: UPVC body withstands corrosive media including acids and alkalis.
- Low Pressure Drop: Streamlined internal design for efficient flow with minimal resistance.
- Durable & Lightweight: High mechanical strength combined with easy handling and installation.
- Maintenance-Free: Non-metallic, corrosion-resistant components reduce wear and servicing needs.
- Quiet Operation: Spring or gravity-assisted closing reduces water hammer and noise.
| Specification | Details |
| Body Material | UPVC (Unplasticized Polyvinyl Chloride) |
| Seal Material | EPDM / FKM (Viton) |
| End Connection | Flanged (DIN / ANSI / JIS standard drilling) |
| Valve Type | Swing or Lift Check Valve |
| Pressure Rating | PN10 (10 bar / 150 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Size Range | 1½” to 8” (40 mm to 200 mm) |
| Flow Direction | Unidirectional |
| Standard Compliance | ASTM D1784, ISO 9393, DIN/ANSI Standards |
| Applications | Chemical processing, water treatment plants, industrial piping systems, irrigation, and wastewater management |
Customization & Processing Options
Customizations Option Available for UPVC Flanged Check Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
