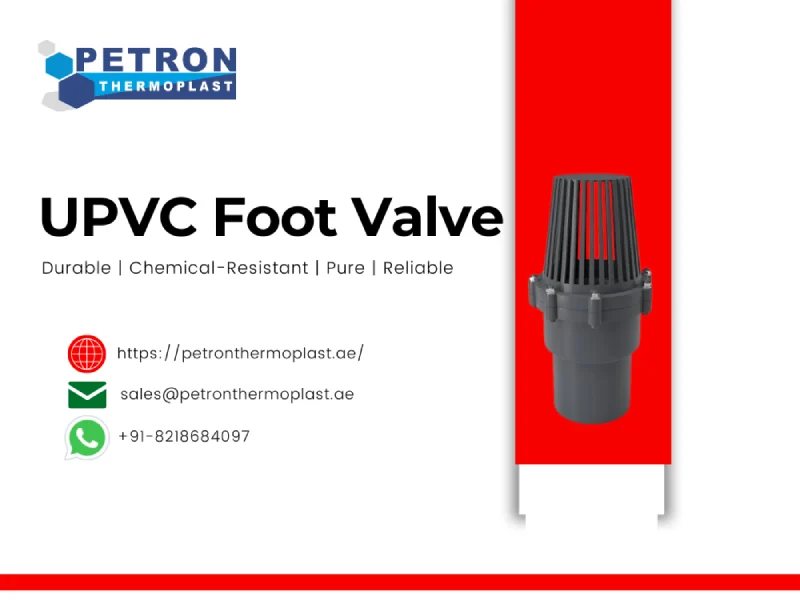

UPVC Foot Valve
The UPVC Foot Valve is a non-return valve installed at the inlet of suction lines to prevent backflow and maintain pump priming. Designed with a strainer at the bottom to filter debris, it ensures that only clean fluid enters the pipeline. Constructed from high-quality Unplasticized Polyvinyl Chloride (UPVC), this valve is ideal for use in water supply, irrigation, and chemical handling systems requiring durability and corrosion resistance.
UPVC Foot Valve
Key Feature of UPVC Foot Valve
- One-Way Flow Control: Prevents reverse flow and keeps the pump primed.
- Integrated Strainer: Filters out large particles and prevents debris entry.
- Corrosion Resistant: Suitable for aggressive and corrosive fluid applications.
- Lightweight & Durable: Easy to install and designed for long-term performance.
- Low Maintenance: Smooth operation with minimal wear and tear.
- Reliable Sealing: Ensures tight closure under backpressure conditions.
| Parameter | Specification |
| Material | Body: UPVC / Seal: EPDM or FPM / Screen: UPVC |
| Size Range | ½” to 6” (15 mm to 160 mm) |
| Connection Type | Solvent Weld Socket or Threaded End |
| Design | Vertical installation with bottom strainer |
| Operating Pressure | Up to 10 bar (150 psi) |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Color | Typically Grey |
| Standards Compliance | ISO, ASTM, DIN |
Customization & Processing Options
Customizations Option Available for UPVC Foot Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
