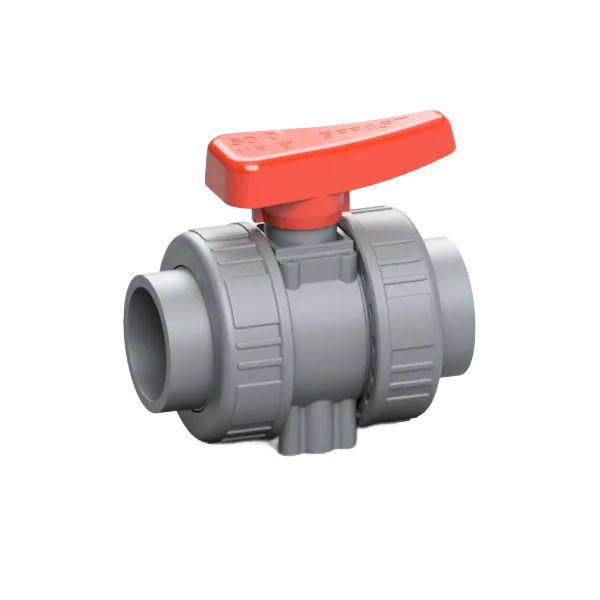

ABS Ball Valve Double Union
The ABS Ball Valve Double Union is a high-performance, corrosion-resistant valve designed for easy installation, maintenance, and reliable flow control in both industrial and commercial piping systems. Manufactured from premium Acrylonitrile Butadiene Styrene (ABS), it provides excellent impact strength, chemical resistance, and dimensional stability, even under varying pressure and temperature conditions.
The double union design allows the valve to be easily removed or replaced without disturbing the entire pipeline — making it ideal for systems that require regular maintenance or component replacement. Its full-bore design ensures maximum flow efficiency with minimal pressure loss, while the smooth-operating ball mechanism guarantees tight shut-off and leak-free performance.
Lightweight yet durable, the ABS Double Union Ball Valve is suitable for water supply, chemical dosing, cooling systems, irrigation, and wastewater management. Each valve supplied by Petron Thermoplast FZ LLC meets international standards (ISO, DIN, ASTM), ensuring reliable and long-lasting performance in diverse applications.
ABS Ball Valve Double Union
- Double Union Design: Allows quick removal and reinstallation without cutting the pipeline.
- Corrosion-Resistant ABS Body: Ideal for water, mild chemicals, and saline environments.
- Full Bore Flow Path: Ensures maximum flow with minimal pressure drop.
- Low Torque Operation: Smooth quarter-turn lever for easy manual control.
- Excellent Chemical Compatibility: Resistant to diluted acids, alkalis, and non-aromatic hydrocarbons.
- Maintenance-Friendly: Removable end unions enable easy servicing and cleaning.
- Safe for Potable Water: Made from non-toxic, lead-free ABS materials.
- Lightweight & Easy Installation: Reduces load on pipeline supports and simplifies setup.
- Temperature Range: Reliable performance between –40°C and +70°C.
- UV-Stabilized Construction: Suitable for outdoor and industrial environments.
Technical Details of ABS Ball Valve Double Union
| Parameter | Specification |
|---|---|
| Product Name | ABS Ball Valve Double Union |
| Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Valve Type | Full Bore Ball Valve – Double Union |
| Connection Type | Socket Weld / Threaded (BSP/NPT) |
| Size Range | ½” to 4” (DN15 – DN100) |
| Pressure Rating | PN10 (10 Bar at 20°C) |
| Temperature Range | –40°C to +70°C |
| Seal Material (O-Rings) | EPDM or FPM (Viton) |
| Seat Material | PTFE |
| Ball Material | ABS (Precision-Machined) |
| Handle Material | ABS / Reinforced Polypropylene (PP) |
| End Connection Standard | DIN / ISO / ASTM Thread Standards |
| Operation | Manual (Quarter-Turn Lever) |
| Flow Characteristics | Full bore for minimal pressure drop |
| Color | Light Grey / Black |
| Applications | Water supply, chemical handling, irrigation, HVAC, and wastewater systems |
| Standards Complied | ISO 9393, DIN 8063, ASTM D2464 |
Customization & Processing Options
Customizations Option Available for ABS Ball Valve Double Union
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
