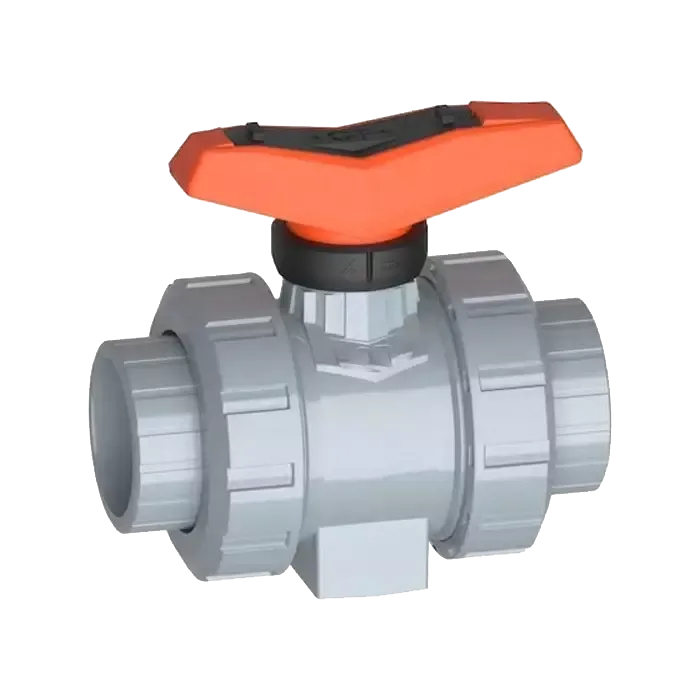

ABS Ball Valve
The ABS Ball Valve is a durable, lightweight, and corrosion-resistant flow control component designed for use in low to medium-pressure piping systems. Manufactured from Acrylonitrile Butadiene Styrene (ABS), this valve offers excellent mechanical strength, impact resistance, and long-term stability under cold and ambient temperature conditions.
Ideal for water distribution, irrigation, cooling, and chemical processing systems, ABS Ball Valves ensure leak-proof shut-off and smooth operation even in demanding environments. Their non-toxic material composition makes them suitable for potable water applications, while their precision-molded ball mechanism allows low-torque operation and tight sealing performance. Petron Thermoplast FZ LLC supplies high-quality ABS Ball Valves in a wide range of sizes, pressure ratings, and configurations, engineered to meet international standards (ISO, DIN, ASTM) for industrial reliability and performance.
ABS Ball Valve
- High Chemical Resistance: Suitable for mild acids, alkalis, and diluted chemicals.
- Corrosion-Free Construction: Does not rust or degrade in water or humid environments.
- Lightweight & Easy Installation: Reduces installation time and overall system weight.
- Low Operating Torque: Ensures smooth manual or automated operation.
- Leak-Proof Sealing: Precision-engineered ball and seats for 100% shut-off.
- Non-Toxic & Safe for Potable Water: Conforms to international drinking water standards.
- Excellent Impact Strength: Withstands physical stress and vibration in pipelines.
- UV & Weather Resistant: Suitable for outdoor and industrial environments.
- Temperature Range: Ideal for applications from –40°C to +70°C.
- Maintenance-Free Design: Long service life with minimal servicing required.
Technical Details of ABS Ball Valve
| Parameter | Specification |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Valve Type | Full Bore Ball Valve – Manual (Lever Operated) |
| Connection Type | Socket Weld / Threaded (BSP / NPT) / Flanged (on request) |
| Size Range | ½” to 4” (DN15 to DN100) |
| Pressure Rating | PN10 / 10 Bar at 20°C |
| Temperature Range | –40°C to +70°C |
| Seal Material (O-Rings) | EPDM or FPM (Viton) |
| Ball Material | ABS (Precision Machined) |
| Handle Material | ABS / Reinforced Polypropylene (PP) |
| End Connection Standard | ISO / DIN / BS Thread Standards |
| Flow Characteristics | Full Bore – Minimal Pressure Drop |
| Operation | Manual (Quarter Turn – 90° Rotation) |
| Color | Light Grey / Black |
| Applications | Water supply, cooling systems, chemical processing, irrigation, and general industrial flow control |
| Standards Complied | DIN 8063, ISO 9393, ASTM D2464 |
Customization & Processing Options
Customizations Option Available for ABS Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
