ABS Blind Flange
The ABS Blind Flange is a robust, disc-shaped fitting designed to close the end of a piping system or pressure vessel securely. Manufactured from Acrylonitrile Butadiene Styrene (ABS), it offers a lightweight yet durable solution for non-corrosive, low-pressure industrial applications. Ideal for systems that require periodic inspection, maintenance, or future expansion, this blind flange ensures a reliable, leak-proof seal when paired with the correct gasket and bolts. Resistant to corrosion, impact, and a wide range of chemicals, ABS blind flanges are widely used in water treatment, marine, cooling systems, food and beverage, and chemical handling industries.
ABS Blind Flange
- Material: Strong, lightweight ABS (Acrylonitrile Butadiene Styrene)
- Function: Securely closes the end of a piping system
- Corrosion Resistant: No rusting or scaling in water and many chemical environments
- High Strength: Excellent tensile and impact resistance
- Lightweight: Easy to transport, handle, and install
- Full Sealing Surface: Leak-free closure with proper gasket and bolts
- Temperature Range: Performs reliably from -40°C to +70°C
- Pressure Rating: Matches pipe system rating (typically PN 10–PN 15)
- Standards: Available drilled to ANSI, DIN, BS, or ISO flange patterns
- Applications: Ideal for temporary or permanent pipeline closure in water supply, cooling systems, marine, aquaculture, food & beverage, and chemical handling installations
Technical Details of ABS Blind Flange
| Category | Specification |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) plastic |
| Standards | ANSI B16.5 / DIN 2501 / BS 4504 / ISO 7005 (as required) |
| Size Range | ½" to 12" (20 mm to 315 mm) |
| Pressure Rating | PN 10 – PN 15 (up to ~150 PSI at 20°C) |
| Temperature Range | -40°C to +70°C (continuous service) |
| Color | Grey or Black |
| Density | ~1.05 g/cm³ |
| Tensile Strength | ~45 MPa |
| Drilling | Pre-drilled bolt holes as per flange standard (when required) |
| Surface Finish | Smooth sealing surface for gasket contact |
| Function | Closes the end of a pipeline or isolates a section |
| Chemical Resistance | Resistant to dilute acids, alkalis, salts; not suitable for strong solvents or hydrocarbons |

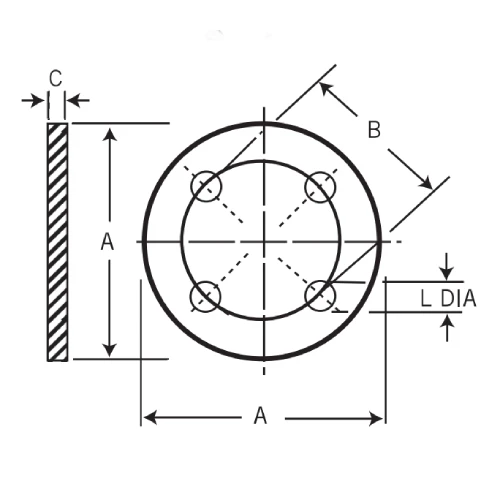

| Nom. Pipe Size | A | B | C | L | Holes |
|---|---|---|---|---|---|
| 3 | 7.76 | 5.98 | 0.750 | 0.71 | 4 |
| 4 | 8.43 | 7.18 | 0.750 | 0.71 | 8 |
| 6 | 11.26 | 9.49 | 1.02 | 0.875 | 8 |
| 8 | 13.27 | 11.73 | 1.02 | 0.875 | 8 |
| *10 | - | - | - | - | - |
| *12 | - | - | - | - | - |
- A – Outside Diameter (O.D.) or Bolt Circle Diameter (depending on flange context)
- B – Inside Diameter (I.D.) or Hub Diameter (depending on flange context)
- C – Thickness (or Flange Thickness)
- L – Length (or Hub Length/Height)
- Holes – Number of Bolt Holes
Customization & Processing Options
Customizations Option Available for ABS Blind Flange
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
