ABS Elbow 90 Degree
At Petron Thermoplast FZ LLC, UAE, we provide a wide range of ABS (Acrylonitrile Butadiene Styrene) pipe fittings engineered for superior performance, chemical resistance, and easy installation. Renowned for their durability, lightweight design, and excellent impact strength, our ABS fittings are well-suited for diverse applications such as industrial piping systems, water treatment facilities, drainage networks, ventilation systems, and chemical handling operations.
Whether you are overseeing a large-scale industrial project or a commercial plumbing installation, our ABS pipe fittings are designed to ensure long-lasting efficiency, reliability, and corrosion resistance, even in the most demanding environments across the UAE and beyond.
ABS Elbow 90 Degree
- Material: Strong, lightweight ABS plastic (Acrylonitrile Butadiene Styrene)
- Corrosion Resistant: Will not rust or degrade in most water and chemical environments
- Impact Resistant: Retains strength even at low temperatures
- Lightweight: Easy to handle and install
- Smooth Bore: Provides minimal friction loss for better flow efficiency
- Temperature Range: Performs reliably from -40°C to +70°C
- Pressure Rating: Suitable for PN 10–15 (up to ~150 PSI at 20°C)
- Connection Types: Socket (solvent cement), threaded, or spigot ends
- Standards Compliance: Manufactured to ASTM, ISO, and BS standards
- Applications: Water supply, cooling systems, marine, aquaculture, food & beverage, and oil-free compressed air
Technical Details of ABS Elbow 90 Degree
| Category | Specification |
|---|---|
| Material | ABS plastic (Acrylonitrile Butadiene Styrene) |
| Standards | ASTM D2466 / ISO 15493 / BS 5391 |
| Size Range | ½" to 12" (20 mm to 315 mm) |
| Pressure Rating | PN 10 – PN 15 (up to 150 PSI at 20°C) |
| Temperature Range | -40°C to +70°C |
| Color | Grey or Black |
| End Type | Socket (solvent cement), threaded, or spigot |

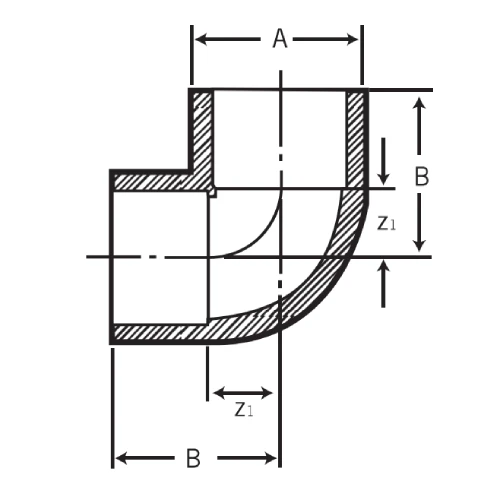

| Nom. Pipe Size | Z1 | A | B |
|---|---|---|---|
| 3/8 | 0.35 | 0.83 | 0.94 |
| 1/2 | 0.47 | 1.02 | 1.14 |
| 3/4 | 0.55 | 1.26 | 1.34 |
| 1 | 0.67 | 1.61 | 1.61 |
| 1-1/4 | 0.83 | 2.05 | 1.93 |
| 1-1/2 | 1.02 | 2.36 | 2.20 |
| 2 | 1.22 | 2.91 | 2.68 |
| 3 | 2.05 | 4.37 | 4.09 |
| 4 | 2.56 | 5.55 | 5.12 |
| 6 | 3.35 | 7.99 | 6.89 |
| 8 | 4.41 | 10.08 | 9.88 |
| *10 | 12.50 | 10.75 | 19.50 |
| *12 | 14.25 | 12.75 | 22.20 |
-
Z₁ → Length of Socket Depth / Insertion Depth
-
A → Outside Diameter (OD)
-
B → Overall Length
Customization & Processing Options
Customizations Option Available for ABS Elbow 90 Degree
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
