ABS Flange Full Face
The ABS Full Face Flange is a reliable and durable fitting designed to provide secure, leak-proof connections in piping systems. Manufactured from high-quality Acrylonitrile Butadiene Styrene (ABS), it combines strength, lightweight handling, and excellent corrosion resistance, making it suitable for diverse applications. Its full-face design ensures even pressure distribution across the gasket, minimizing leakage risk in water, HVAC, chemical handling, marine, and food & beverage systems. Available in sizes from ½” to 12″, the flange is manufactured to international standards (ANSI, DIN, BS, ISO) and operates effectively within -40°C to +70°C and PN 10–PN 15 pressure ratings.
ABS Flange Full Face
- Full Contact Surface: Covers the gasket area completely for even pressure distribution
- Secure Sealing: Minimizes risk of leakage, especially in low-pressure systems
- Material Options: Available in plastics (ABS, PVC, CPVC, PP) and metals (steel, stainless steel)
- Corrosion Resistant: Excellent resistance when made from ABS or coated metals
- International Standards: Designed as per ANSI, DIN, BS, and ISO
- Easy Installation: Pre-drilled bolt holes ensure quick alignment and fitting
- Pressure Rating: Suitable for PN 10, PN 15, or Class 150 systems
- Temperature Range: For ABS, typically -40°C to +70°C
- Applications: Water supply, chemical handling, HVAC, marine, aquaculture, and food & beverage industries
- Durability: Strong, lightweight, and designed for long service life with minimal maintenance
Technical Details of ABS Flange Full Face
| Specification | Details |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | Grey or Black |
| Size Range | ½" to 12" (20 mm to 315 mm) |
| Standard | ANSI, DIN, BS, ISO (as per requirement) |
| Pressure Rating | PN 10 – PN 15 (up to ~150 PSI at 20°C) |
| Temperature Range | -40°C to +70°C |
| Connection Type | Bolt holes as per flange standard, used with stub flange/backing ring |
| Application | Secure joint connection with gasket sealing in piping systems |
| Size | Z1 | B | C | D |
|---|---|---|---|---|
| 1/2 | 0.16 | 3.78 | 0.83 | 0.39 |
| 3/4 | 0.16 | 4.13 | 0.94 | 0.39 |
| 1 | 0.16 | 4.53 | 1.06 | 0.39 |
| 1-1/4 | 0.16 | 5.51 | 1.26 | 0.39 |
| 1-1/2 | 0.20 | 5.91 | 1.42 | 0.39 |
| 2 | 0.24 | 6.50 | 1.77 | 0.43 |
| 3 | 0.31 | 7.83 | 2.36 | 0.43 |
| 4 | 0.24 | 8.66 | 2.87 | 0.55 |
| 6 | 0.31 | 11.18 | 3.90 | 0.87 |

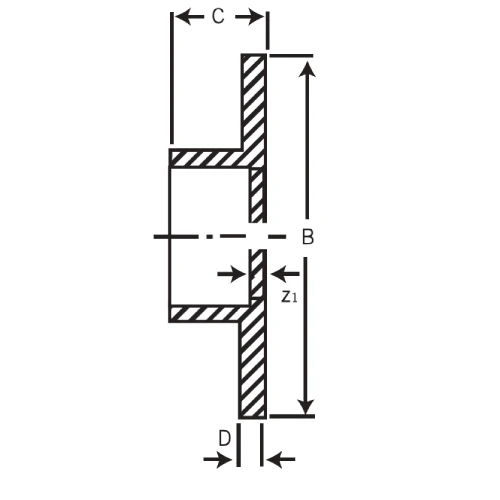

Z1 – Socket Depth
B – Overall Diameter
C – Bolt Circle Diameter
D – Hole Diameter
Customization & Processing Options
Customizations Option Available for ABS Flange Full Face
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
