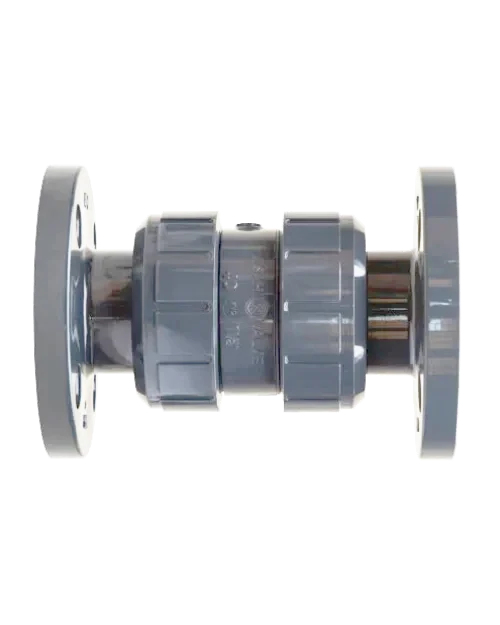

ABS Flanged Check Valve
The ABS Flanged Check Valve is a high-performance, non-return valve designed to prevent backflow in fluid handling systems. Constructed from Acrylonitrile Butadiene Styrene (ABS), this valve offers excellent chemical resistance, lightweight design, and durability, making it ideal for use in industrial water systems, chemical processing, marine, and wastewater treatment applications.
The flanged end connection provides secure and easy installation with other flanged pipeline components, ensuring a tight, leak-proof seal under various pressure conditions. Its spring-loaded or swing-type disc mechanism allows for smooth, silent operation with minimal pressure loss, while automatically preventing reverse flow to protect pumps, meters, and other system equipment.
Manufactured in compliance with international standards (ISO, DIN, ASTM), the ABS Flanged Check Valve delivers long-term reliability, low maintenance, and excellent flow efficiency, even in corrosive or humid environments.
ABS Flanged Check Valve
- Non-Return Design: Prevents reverse flow and protects downstream equipment.
- High-Quality ABS Construction: Corrosion-resistant and suitable for aggressive media.
- Flanged End Connection: Easy to install, align, and maintain in industrial pipelines.
- Smooth Flow Operation: Low head loss and quiet functioning.
- Lightweight & Durable: Easier handling and reduced installation stress.
- Resistant to Chemicals: Suitable for most diluted acids, alkalis, and non-aromatic solvents.
- Maintenance-Free: Simple internal design with minimal moving parts.
- Temperature and Pressure Stability: Performs efficiently across a wide operating range.
- Compliant with Global Standards: Designed to meet ISO, DIN, and ASTM specifications.
- Ideal for Industrial & Commercial Use: Suitable for water supply, treatment plants, and chemical industries.
Technical Details of ABS Flanged Check Valve
| Parameter | Specification |
|---|---|
| Product Name | ABS Flanged Check Valve |
| Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Disc Type | Swing or Spring-Loaded (Optional) |
| Disc Material | ABS / PVC / Polypropylene |
| Seal Material | EPDM or FPM (Viton) |
| Connection Type | Flanged (DIN / ANSI / JIS Standard) |
| Size Range | DN25 – DN300 (1” – 12”) |
| Pressure Rating | PN10 (10 Bar at 20°C) |
| Temperature Range | –40°C to +70°C |
| Flow Direction | Unidirectional (Arrow Indicated on Body) |
| Opening Pressure | 0.2 – 0.3 Bar (Depending on Size) |
| Installation Orientation | Horizontal or Vertical (Flow Upward) |
| Design Type | Full-Bore, Low Head Loss |
| End Connection Standard | DIN 8063 / ANSI B16.5 / JIS 10K |
| Color | Light Grey |
| Applications | Water supply systems, wastewater, chemical processing, irrigation, marine, HVAC |
| Compliance Standards | ISO 9393, DIN 3442, ASTM D2467 |
Customization & Processing Options
Customizations Option Available for ABS Flanged Check Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
