ABS Reducer Coupler
The ABS Reducer Coupler is a durable and lightweight pipe fitting designed to connect two pipes of different diameters in a straight line while ensuring a strong and leak-proof joint. Manufactured from high-quality Acrylonitrile Butadiene Styrene (ABS), it offers excellent tensile strength, impact resistance, and reliable performance across a wide range of applications. With a temperature tolerance from -40°C to +70°C and a pressure rating of PN 10–PN 15, this reducer coupler is ideal for potable water, cooling systems, aquaculture, marine, and light chemical handling. Easy to install using solvent weld sockets, ABS reducer couplers ensure efficient flow, corrosion resistance, and long-lasting service life.
ABS Reducer Coupler
- Material: Strong, lightweight ABS plastic (Acrylonitrile Butadiene Styrene)
- Corrosion Resistant: Will not rust or degrade in most water and chemical environments
- Impact Resistant: Retains strength even at low temperatures
- Lightweight: Easy to handle and install
- Smooth Bore: Provides minimal friction loss for better flow efficiency
- Temperature Range: Performs reliably from -40°C to +70°C
- Pressure Rating: Suitable for PN 10–15 (up to ~150 PSI at 20°C)
- Connection Types: Socket (solvent cement), threaded, or spigot ends
- Standards Compliance: Manufactured to ASTM, ISO, and BS standards
- Applications: Water supply, cooling systems, marine, aquaculture, food & beverage, and oil-free compressed air
Technical Details of ABS Reducer Coupler
| Property | Specification |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Standard | ISO 15493 / BS 5391 / ASTM D2467 |
| Size Range | ½" × ¼" to 12" × 10" (20 mm × 15 mm to 315 mm × 280 mm) |
| Pressure Rating | PN 10–PN 15 (up to ~150 PSI at 20°C) |
| Temperature Range | -40°C to +70°C |
| Color | Grey or Black |
| Density | ~1.05 g/cm³ |
| Tensile Strength | ~45 MPa |
| Connection Type | Solvent weld socket ends (sometimes threaded) |
| Function | Connects two pipes of different diameters in a straight line |
| Chemical Resistance | Resistant to dilute acids, alkalis, and salts; not suitable for strong solvents or hydrocarbons |

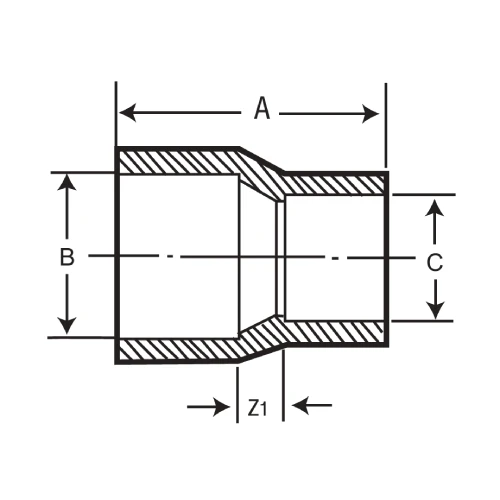

| Nom. Pipe Size | B | C | Z1 | A |
|---|---|---|---|---|
| *1/2 x 3/8 | - | - | - | - |
| 3/4 x 1/2 | 1.26 | 1.02 | 0.28 | 1.73 |
| 1 x 3/4 | 1.61 | 1.30 | 0.35 | 2.09 |
| 1-1/4 x 1 | 2.05 | 1.61 | 0.39 | 2.48 |
| 1-1/2 x 1-1/4 | 2.32 | 2.01 | 0.31 | 2.68 |
| 2 x 1-1/2 | 2.91 | 2.32 | 0.47 | 3.23 |
| 3 x 2 | 4.25 | 2.95 | 1.02 | 4.49 |
| 4 x 3 | 5.35 | 4.25 | 0.79 | 5.35 |
| 6 x 4 | 8.07 | 5.51 | 2.17 | 8.39 |
| 8 x 6 | 10.08 | 7.80 | 1.97 | 10.35 |
| *10 x 8 | 8.63 | 10.75 | 1.00 | 12.25 |
| *12 x 10 | 10.75 | 12.75 | 1.00 | 14.25 |
B – Outside Diameter of Socket, inches
C – Wall Thickness of Socket, inches
Z1 – Socket Depth, inches
A – Socket Inside Diameter, inches
Customization & Processing Options
Customizations Option Available for ABS Reducer Coupler
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
