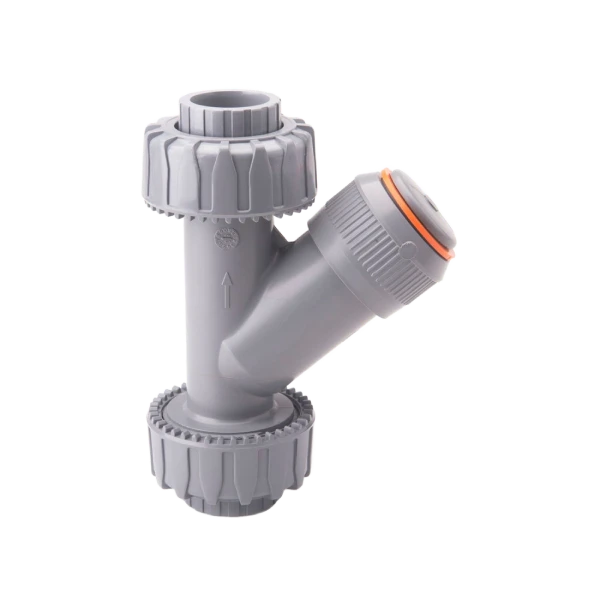

ABS Sediment Strainer
The ABS Sediment Strainer is a precision-engineered filtration component designed to protect piping systems, pumps, and valves from solid impurities and suspended particles present in the flow medium. Manufactured from Acrylonitrile Butadiene Styrene (ABS), this strainer offers superior mechanical strength, excellent chemical resistance, and lightweight durability, making it ideal for both industrial and commercial applications.
This strainer functions as a primary line of defense in fluid systems, efficiently removing sediment, rust, scale, and other debris before they reach critical downstream equipment. It features a removable mesh filter element for easy maintenance and quick cleaning without disrupting the entire system. The transparent or opaque body design allows for easy inspection and monitoring of sediment accumulation.
Engineered to meet international standards (ISO, DIN, ASTM), the ABS Sediment Strainer ensures optimal filtration performance, low pressure drop, and long operational life, making it a cost-effective solution for water treatment, irrigation, and industrial fluid control systems.
ABS Sediment Strainer
- Efficient Filtration: Traps debris and particles to protect pumps, valves, and meters.
- Durable ABS Construction: Strong, lightweight, and resistant to corrosion and chemicals.
- Easy Maintenance: Removable screen for quick cleaning and replacement.
- Low Pressure Loss: Designed for smooth flow with minimal flow resistance.
- Transparent Housing (Optional): Allows visual monitoring of sediment buildup.
- Compact and Lightweight Design: Easy installation and space-efficient setup.
- Customizable Mesh Sizes: Available in multiple micron ratings to suit application needs.
- Corrosion-Resistant Components: Suitable for harsh industrial and chemical environments.
- Extended Service Life: Long-lasting performance with minimal maintenance requirements.
- Compliant with Global Standards: Manufactured as per ISO, DIN, and ASTM quality norms.
Technical Details of ABS Sediment Strainer
| Parameter | Specification |
|---|---|
| Product Name | ABS Sediment Strainer |
| Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Screen Material | Stainless Steel (SS304 / SS316) |
| Seal Material | EPDM or FPM (Viton) |
| Connection Type | Socket Weld / Threaded (BSP/NPT) / Flanged |
| Size Range | DN15 – DN100 (½” – 4”) |
| Pressure Rating | PN10 (10 Bar at 20°C) |
| Temperature Range | –40°C to +70°C |
| Mesh Size Options | 100 µm to 1000 µm (customizable) |
| Flow Direction | Horizontal or Vertical (depending on installation) |
| Filtration Type | Mechanical (Reusable Mesh Filter) |
| Maintenance | Tool-free removal and cleaning of mesh screen |
| Body Color | Light Grey or Transparent (Optional) |
| Compliance Standards | ISO 9393, DIN 3442, ASTM D2467 |
Customization & Processing Options
Customizations Option Available for ABS Sediment Strainer
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
