ABS Wafer Check Valve
The ABS Wafer Check Valve is a compact, lightweight, and highly efficient non-return valve designed to prevent backflow in piping systems. Constructed from Acrylonitrile Butadiene Styrene (ABS), this valve offers exceptional strength, corrosion resistance, and durability, making it ideal for a wide range of industrial, commercial, and water applications.
The valve operates automatically — allowing flow in one direction and instantly closing when reverse flow occurs, thereby protecting pumps, compressors, and piping networks from potential damage. Its wafer-style body allows for easy installation between flanges, minimizing space requirements while ensuring a tight, leak-free seal.
With a spring-assisted disc mechanism, the ABS Wafer Check Valve ensures quick closing to eliminate water hammer and maintain steady system pressure. Designed to ISO, DIN, and ASTM standards, it delivers long-lasting, maintenance-free performance for water treatment, chemical handling, and fluid transport systems.

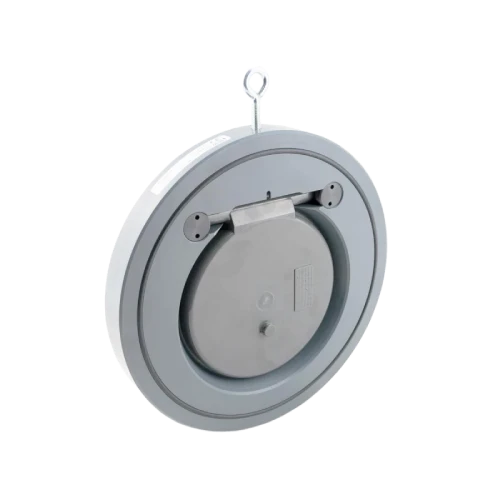

ABS Wafer Check Valve
- One-Way Flow Control: Prevents reverse flow to protect equipment and maintain system integrity.
- Durable ABS Body: Corrosion-resistant and suitable for water, air, and mild chemical applications.
- Compact Wafer Design: Fits easily between flanges, saving space and reducing weight.
- Quick-Closing Disc: Spring-assisted mechanism minimizes water hammer and pressure surges.
- Leak-Proof Performance: Precision-molded components ensure tight sealing and reliable operation.
- Easy Installation: Simple mounting between DIN or ANSI flanges.
- Low Pressure Drop: Full bore design ensures smooth flow with minimal resistance.
- Maintenance-Free Operation: No manual intervention required for long service life.
- Wide Compatibility: Suitable for horizontal and vertical installations.
- Compliant with International Standards: Manufactured as per ISO, DIN, and ASTM norms.
Technical Details of ABS Wafer Check Valve
| Parameter | Specification |
|---|---|
| Product Name | ABS Wafer Check Valve |
| Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Disc Material | ABS / Polypropylene (PP) / PVC |
| Spring Material | Stainless Steel (SS304 / SS316) |
| Seal Material | EPDM / FPM (Viton) |
| Connection Type | Wafer (Flanged Mounting) |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | PN10 (10 Bar at 20°C) |
| Temperature Range | –40°C to +70°C |
| Flow Direction | Unidirectional |
| Operation Type | Automatic (Spring-Loaded Disc) |
| Installation Orientation | Horizontal / Vertical (Upward Flow) |
| Face-to-Face Dimension | Compact Wafer Standard |
| Mounting Standard | DIN PN10 / PN16 or ANSI 150 |
| Body Color | Light Grey |
| Compliance Standards | ISO 9393, DIN 3442, ASTM D2467 |
| Applications | Water supply systems, irrigation, industrial pipelines, wastewater treatment, HVAC, chemical process lines |
| Country of Origin | UAE (Supplied by Petron Thermoplast FZ LLC) |
Customization & Processing Options
Customizations Option Available for ABS Wafer Check Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
