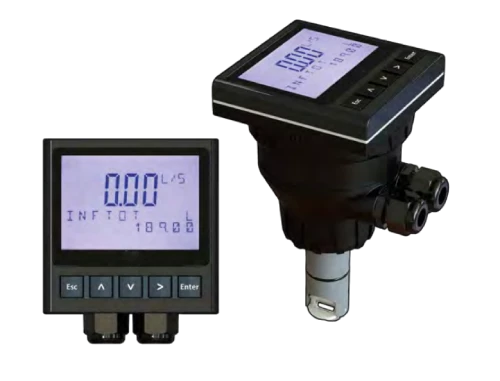

Battery Powered Flow Monitor – FLS M9.20
The FLS M9.20 from Petron Thermoplast FZ LLC is an advanced, battery-powered flow monitor designed to convert the frequency signal from FLS sensors into precise flow rate measurements. Powered by a long-life lithium battery that also supplies energy to the sensor, the M9.20 offers reliable operation without external power requirements.
Its large 4-inch display ensures clear visibility of measured values, while the simple initial setup process makes parameter configuration quick and straightforward. The intuitive in-line calibration feature allows easy recalibration or alignment using a reference flow rate.
A built-in battery replacement alert icon ensures timely maintenance, and all main parameters are stored automatically for added convenience. With a customizable display string, users can easily tailor the information shown to match their specific monitoring needs. The integrated USB port enables fast, user-friendly software updates, ensuring your device remains up to date and fully functional.
Battery Powered Flow Monitor – FLS M9.20
- Wide display
- Long-lasting battery
- Installation flexibility
- No data loss at battery replacement
- Multilanguage menu
- USB port for software updating
Technical Details of Battery Powered Flow Monitor – FLS M9.20
| Feature | Specification |
|---|---|
| Associated Flow Sensor | FLS Coil effect with frequency output, FLS Reed effect |
| Materials – Case | ABS |
| Materials – Display Window | PC |
| Panel & Wall Gasket | Silicone rubber |
| Keypad | 5-button silicone rubber |
| Display | Transflective technology |
| Update Rate | 1 second |
| Enclosure | IP65 front |
| Flow Input Range (frequency) | 0.5 to 500 Hz |
| Flow Input Accuracy | ±0.5% |
| Supply Voltage | 3.6V Lithium Thionylchloride Battery, size C, 8.5 Ahr |
| Max Power Consumption | <400 µA |
| Battery Life | Nominal 5 years |
| Sensor Power | 3.6 Volts (FLS Coil effect flow sensor) |
| Operating Temperature | -5 to +60°C (+23 to +140°F) |
| Storage Temperature | -10 to +80°C (+14 to +176°F) |
| Relative Humidity | 0 to 95%, not condensing |
| ISO Certifications | ISO 9001, ISO 14001 |
| Other Approvals | CE, RoHS Compliant, EAC |
| Special Certification | FDA on request for paddlewheel in C-PVC/EPDM, PVDF/EPDM, SS316L/EPDM |
| Part No. | Description / Name | Power supply | Wire power Technology | Sensor Input | Output | Lenght | Main Wetted Materials | Weight (gr.) |
|---|---|---|---|---|---|---|---|---|
| M9.20.01 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | C-PVC/EPDM | 550 |
| M9.20.02 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | C-PVC/FPM | 550 |
| M9.20.03 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | C-PVC/EPDM | 550 |
| M9.20.04 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | C-PVC/FPM | 550 |
| M9.20.05 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | PVDF/EPDM | 550 |
| M9.20.06 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | PVDF/FPM | 550 |
| M9.20.07 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | PVDF/EPDM | 550 |
| M9.20.08 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | PVDF/FPM | 550 |
| M9.20.09 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | SS316L/EPDM | 600 |
| M9.20.10 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L0 | SS316L/FPM | 600 |
| M9.20.11 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | SS316L/EPDM | 600 |
| M9.20.12 | Field mount Battery Powered Flow Monitor | Battery Powered | - | Flow (Frequency) | - | L1 | SS316L/FPM | 600 |

Customization & Processing Options
Customizations Option Available for Battery Powered Flow Monitor – FLS M9.20
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
