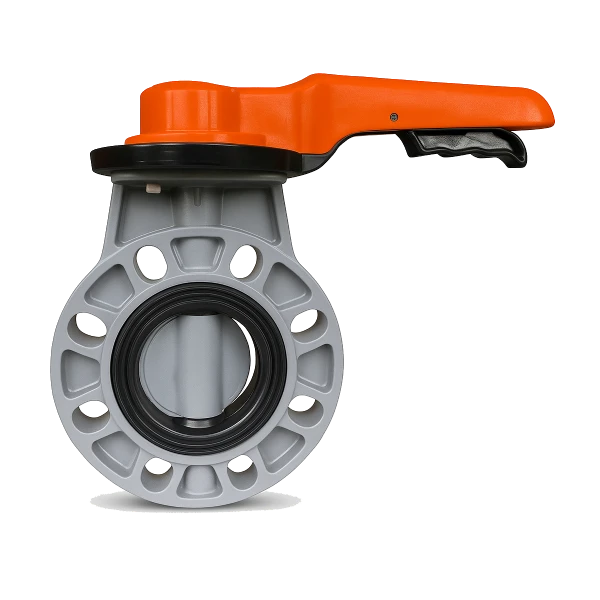

CPVC Butterfly Valve
The CPVC Butterfly Valve is a quarter-turn valve designed to regulate or isolate fluid flow in industrial piping systems. Manufactured from high-grade Chlorinated Polyvinyl Chloride (CPVC), it offers outstanding resistance to corrosion, chemicals, and high temperatures. Its lightweight construction, compact profile, and ease of operation make it suitable for a wide range of industrial applications, especially in chemical processing, water treatment, and fluid handling systems. The valve features a circular disc mounted on a rotating shaft and is typically installed between two pipe flanges.
CPVC Butterfly Valve
- Corrosion-Resistant CPVC Body: Ensures long-term performance in aggressive and corrosive environments.
- Quarter-Turn Operation: Simple and efficient manual control with a lever or gear operator.
- Disc and Seat Design: Provides bubble-tight shutoff with minimal torque.
- Lightweight and Compact: Ideal for installation in systems with space or weight constraints.
- Wafer or Lug Type Body: Compatible with various piping systems and flange standards.
- Low Maintenance: Few moving parts, reducing wear and service needs.
- Available with Actuator Mounting: Can be automated with electric or pneumatic actuators.
| Parameter | Specification |
| Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Disc Material | CPVC or Polypropylene |
| Seal Material | EPDM or FKM (Viton®) |
| Size Range | 1½” to 12″ (40 mm to 315 mm) |
| Connection Type | Wafer or Lug style (fits between ANSI/DIN/BS flanges) |
| Operation | Manual lever, gearbox, or actuator operated |
| Pressure Rating | Up to 150 PSI (10.3 bar) at 23°C |
| Temperature Range | 0°C to 93°C (32°F to 200°F) |
| Flow Control | Bi-directional with throttling capability |
| Applications | Water treatment, chemical processing, industrial piping systems |
| Compliance Standards | ASTM D1784, ISO 9393, NSF/ANSI 61 (optional) |
Customization & Processing Options
Customizations Option Available for CPVC Butterfly Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
