CPVC Solenoid Valve
The CPVC Solenoid Valve is an electrically operated valve designed for precise control of fluid flow in industrial piping systems. Constructed from high-quality Chlorinated Polyvinyl Chloride (CPVC), it offers excellent chemical resistance and thermal stability, making it suitable for aggressive media. The valve opens and closes via an electromagnetic actuator, ensuring rapid response and remote operation. Ideal for chemical dosing, water treatment, and fluid automation applications, the CPVC solenoid valve is compact, reliable, and easy to integrate into control systems.

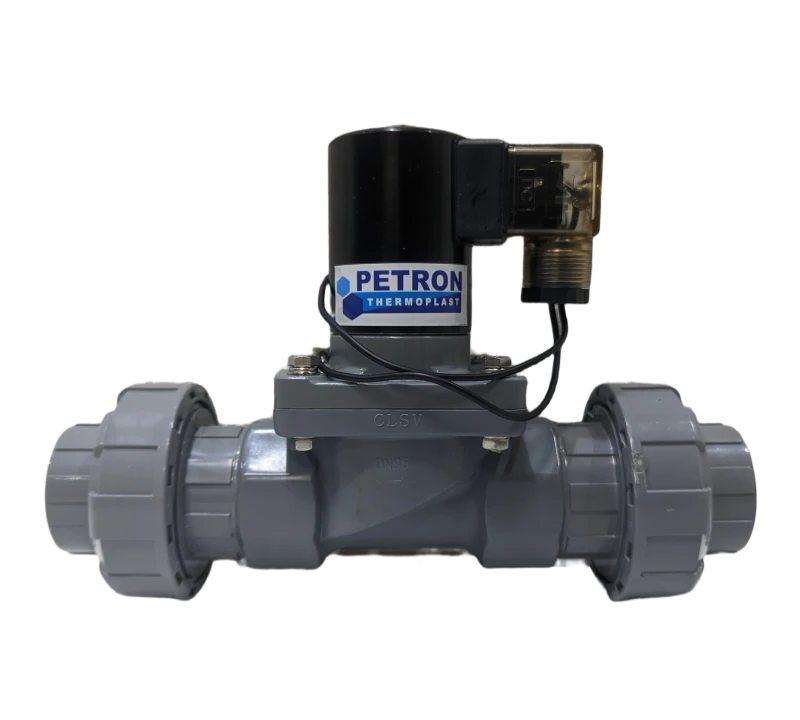

CPVC Solenoid Valve
- Corrosion-Resistant CPVC Body: Provides long service life in harsh chemical environments.
- Electromagnetic Actuation: Enables fast and accurate on/off operation with minimal power consumption.
- Compact Design: Space-efficient, ideal for integrated systems.
- Precise Flow Control: Ensures accurate fluid management in automated processes.
- Low Maintenance: Simple construction with minimal moving parts.
- Multiple Voltages Available: Compatible with various electrical systems (AC/DC).
- Optional Manual Override: Provides emergency manual operation when needed.
- Wide Compatibility: Suitable for a range of industrial and chemical applications.
| Parameter | Specification |
| Body Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Seal Material | EPDM or FKM (Viton®) |
| Orifice Size | Available from ½” to 2″ (15 mm to 63 mm) |
| Operation Type | Normally Closed (NC) / Normally Open (NO) |
| Actuation Type | Electromagnetic (Solenoid) |
| Coil Voltage Options | 24V AC/DC, 110V AC, 220V AC |
| Pressure Rating | Up to 7 bar (101 PSI) |
| Temperature Range | 0°C to 90°C (32°F to 194°F) |
| Response Time | Typically <1 second |
| Connection Types | Threaded (BSP/NPT), Socket Weld, or Flanged |
| Mounting Orientation | Horizontal or vertical (coil upright preferred) |
| Applications | Chemical dosing, water treatment, automation systems, fluid control |
| Compliance Standards | ASTM D1784, IP65 coil protection, ISO 9001 |
Customization & Processing Options
Customizations Option Available for CPVC Solenoid Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
