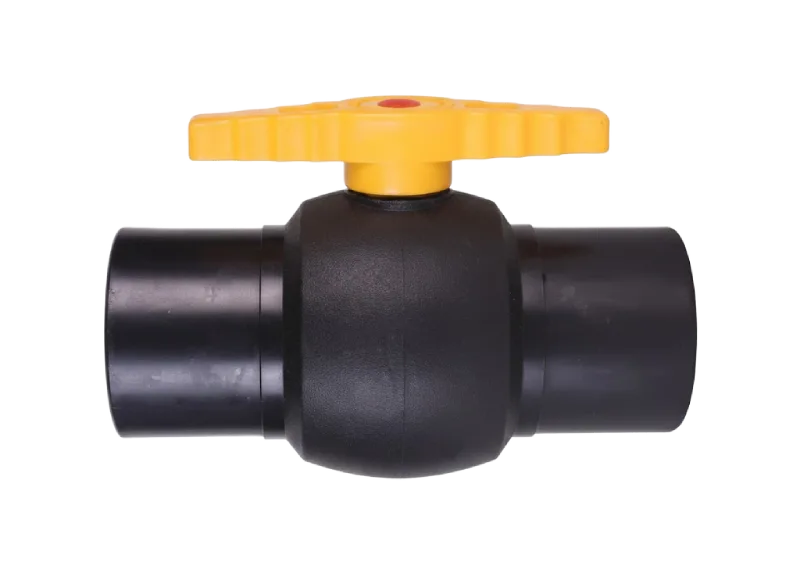

HDPE Ball Valve
The HDPE Ball Valve is a high-performance flow control valve designed to start, stop, and regulate the flow of liquids and gases in HDPE piping systems. Manufactured from premium-grade PE100 high-density polyethylene, this valve provides excellent resistance to corrosion, chemicals, and abrasion, making it ideal for both industrial and water management applications.
Its full-bore design ensures smooth fluid passage with minimal pressure drop, while the precision-engineered ball and seat assembly provides leak-proof performance. The HDPE Ball Valve is lightweight, durable, and easy to install, compatible with butt fusion, electrofusion, or flanged connections for versatile system integration.
Widely used in irrigation networks, water treatment, wastewater systems, and chemical industries, the HDPE Ball Valve from Petron Thermoplast FZ LLC delivers long service life, high operational reliability, and zero corrosion issues, even under aggressive environmental conditions.
HDPE Ball Valve
- Constructed from PE100 HDPE: Ensures superior chemical, corrosion, and abrasion resistance.
- Full-Bore Flow Design: Provides unrestricted flow with minimal pressure loss.
- Leak-Proof Sealing: Precision ball-seat interface prevents leakage under pressure.
- Lightweight & Easy Installation: Ideal for quick and safe field installation.
- Fusion & Flanged End Options: Compatible with HDPE piping systems via butt fusion or flanges.
- Maintenance-Free Operation: No rust, scaling, or internal build-up.
- UV Stabilized Material: Perfect for both indoor and outdoor applications.
- Suitable for High Pressure: Available in PN6, PN10, and PN16 pressure ratings.
- Long Lifespan: Designed for decades of reliable service with minimal wear.
- Meets Global Standards: Manufactured according to ISO 4427, DIN 8077/8078, and ASTM D3350.
Technical Details of HDPE Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | HDPE Ball Valve |
| Material | High-Density Polyethylene (HDPE – PE100) |
| Connection Type | Butt Fusion / Electrofusion / Flanged |
| Valve Type | Quarter Turn – Manual Operation |
| Size Range | DN15 – DN315 (½” – 12”) |
| Pressure Rating | PN6 / PN10 / PN16 |
| Temperature Range | –40°C to +60°C |
| Seal Material | EPDM / NBR / FPM (Viton) |
| Handle Type | Lever or T-Type Handle |
| Flow Type | Full Bore |
| Operation Torque | Low torque, smooth operation |
| Color | Black or Blue (custom available) |
| End Standards | ISO 4427 / DIN 8062 / ASTM D3350 |
| Testing Standards | ISO 9393 / EN 12266 |
| Applications | Water supply, irrigation, wastewater, chemical plants, industrial piping |
| Features | Corrosion-free, leak-proof, lightweight, and easy to operate |
| Country of Origin | UAE (Supplied by Petron Thermoplast FZ LLC) |
Customization & Processing Options
Customizations Option Available for HDPE Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
