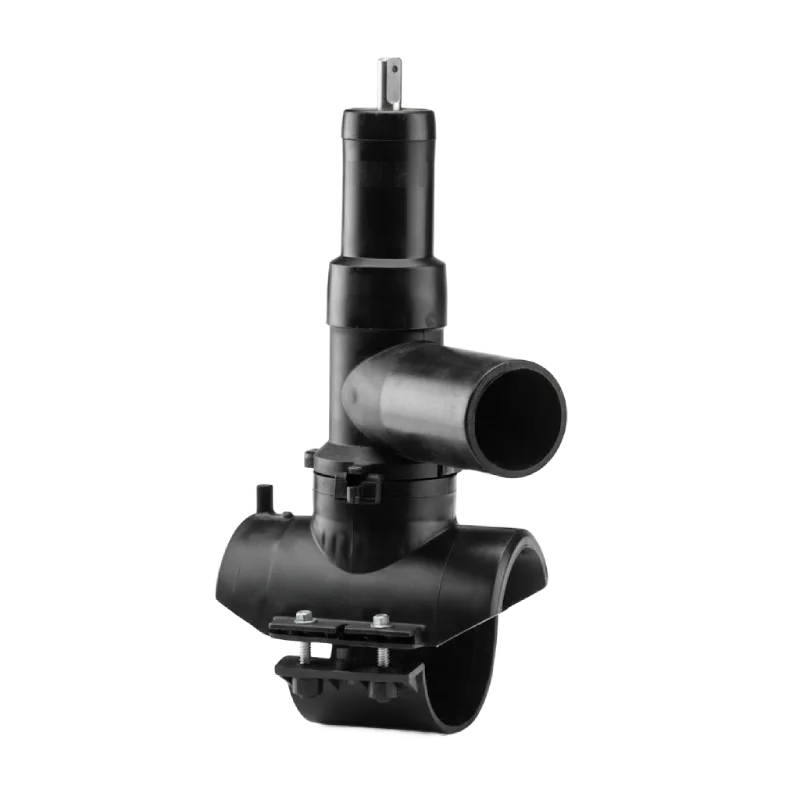

HDPE Electrofusion Pressure Tapping Valve
The HDPE Electrofusion Pressure Tapping Valve is a high-performance valve designed to create controlled branch connections from existing pressurized HDPE pipelines without interrupting the main service. Made from premium PE100 material, this valve ensures strong, reliable, and leak-proof joints using electrofusion welding technology.
It allows tapping, venting, and sampling on live pipelines with ease, eliminating the need for shutdowns or costly downtime. The integrated electrofusion saddle and valve assembly ensure a permanent fusion bond with the pipe, delivering superior structural integrity and pressure resistance.
Supplied by Petron Thermoplast FZ LLC, this valve is widely used in water distribution, gas supply, irrigation, and industrial piping systems requiring efficient live connections under pressure. Its compact design, ease of installation, and maintenance-free operation make it a reliable choice for both new and existing HDPE networks.
HDPE Electrofusion Pressure Tapping Valve
- Live Pressure Tapping Capability: Allows safe and efficient tapping on pressurized HDPE mains.
- High-Quality PE100 Material: Ensures long-term durability and chemical resistance.
- Leak-Free Electrofusion Joint: Provides a permanent, homogeneous bond to the HDPE pipe.
- Compact & Lightweight Design: Easy to install even in confined spaces.
- Integrated Valve System: Simplifies control during tapping and maintenance operations.
- Corrosion & UV Resistant: Suitable for underground and outdoor applications.
- Low Maintenance: No moving metal parts or rust-prone components.
- Compatible with Standard HDPE Pipes: Designed as per ISO 4427 / EN 12201.
- Pressure-Rated for Safety: Withstands high internal pressure without deformation.
- Ideal for Water, Gas & Industrial Applications: Versatile performance across sectors.
Technical Details of HDPE Electrofusion Pressure Tapping Valve
| Parameter | Specification |
|---|---|
| Product Name | HDPE Electrofusion Pressure Tapping Valve |
| Material | High-Density Polyethylene (PE100) |
| Connection Type | Electrofusion Saddle with Integrated Valve |
| Operation Type | Manual / Actuated (Optional) |
| Size Range | DN50 – DN315 (2” – 12”) |
| Main Pipe Compatibility | SDR11, SDR17, SDR17.6, SDR21 |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | –40°C to +60°C |
| Seal Material | NBR / EPDM / FPM (Viton) |
| Valve Type | Ball-Type / Gate-Type (Depending on Design) |
| Tapping Hole Diameter | As per pipe size (Customizable) |
| Fusion Voltage | 39.5V ± 1.5V |
| Fusion Time | As per manufacturer specification (based on size) |
| Testing Standard | ISO 13950 / EN 12201-3 / ASTM D3350 |
| Installation Method | Electrofusion Welding (Live or Non-Live Systems) |
| Color | Black (UV Stabilized) |
| Applications | Water distribution, gas pipelines, irrigation, industrial process lines |
| Country of Origin | UAE (Supplied by Petron Thermoplast FZ LLC) |
Customization & Processing Options
Customizations Option Available for HDPE Electrofusion Pressure Tapping Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
