HDPE Union Ball Valve
The HDPE Union Ball Valve is a precision-engineered valve designed to provide smooth on/off flow control in HDPE piping systems. Manufactured from high-quality PE100 material, this valve offers exceptional chemical resistance, corrosion protection, and long-term reliability. Its union-type design allows easy installation, maintenance, and replacement without disturbing the entire pipeline — making it an ideal choice for water distribution, irrigation, wastewater treatment, and industrial fluid handling systems.
The internal ball mechanism ensures low torque operation and a tight shut-off, preventing leaks even under high pressure. The HDPE body and end connections create a homogeneous, leak-proof system when fused or mechanically joined with HDPE pipes.
Supplied by Petron Thermoplast FZ LLC, this valve complies with international standards (ISO, DIN, ASTM) and delivers outstanding performance in chemical plants, agriculture, and industrial applications.

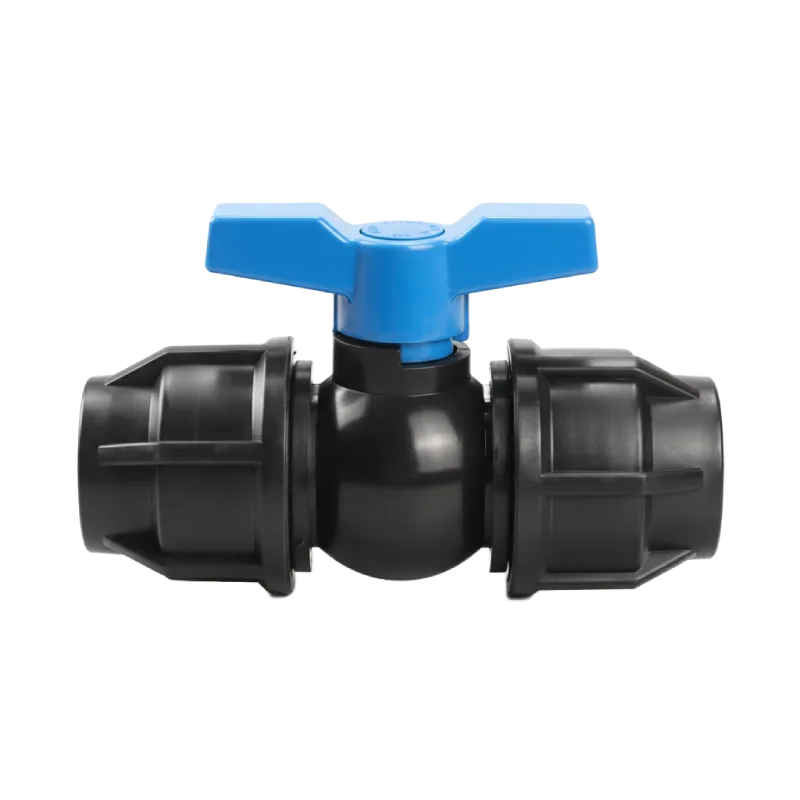

HDPE Union Ball Valve
- Durable PE100 Construction: High strength, corrosion-free, and resistant to most industrial chemicals.
- Union-Type Design: Allows easy removal and maintenance without cutting the pipe.
- Smooth Flow Control: Precision-engineered ball ensures tight shut-off and minimal pressure loss.
- Leak-Proof Sealing: High-quality O-rings provide reliable and long-lasting sealing.
- Lightweight & Easy to Install: Reduces handling effort and installation time.
- Suitable for Various Fluids: Ideal for water, acids, alkalis, and other industrial liquids.
- UV & Weather Resistant: Designed for outdoor and underground installations.
- Low Torque Operation: Ensures easy manual control with minimal effort.
- Complies with International Standards: ISO 4427 / EN 12201 / ASTM D3350.
- Cost-Effective & Maintenance-Free: Offers long-term value and operational efficiency
Technical Details of HDPE Union Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | HDPE Union Ball Valve |
| Material | High-Density Polyethylene (PE100) |
| Design Type | Double Union / Single Union Ball Valve |
| End Connection | Socket / Threaded / Fusion Welded |
| Size Range | DN20 – DN110 (¾” – 4”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | -40°C to +60°C |
| Seal Material | EPDM / NBR / FPM (Viton) |
| Ball Material | HDPE / PP (Precision Machined) |
| Operation Type | Manual Lever Handle / Actuated (Optional) |
| Color | Black (UV Stabilized) |
| Standards Compliance | ISO 4427 / EN 12201 / ASTM D3350 |
| Flow Medium | Water, Chemicals, Irrigation Fluids, Wastewater |
| Installation Method | Union Joint with Gasket Seal |
| Testing Standard | ISO 9393-2 (Valve Performance Testing) |
| Corrosion Resistance | Excellent (Non-Metallic Construction) |
| Maintenance | Minimal; O-ring replacement when required |
| Applications | Water treatment, agriculture, chemical processing, industrial pipelines |
| Country of Origin | UAE (Supplied by Petron Thermoplast FZ LLC) |
Customization & Processing Options
Customizations Option Available for HDPE Union Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
