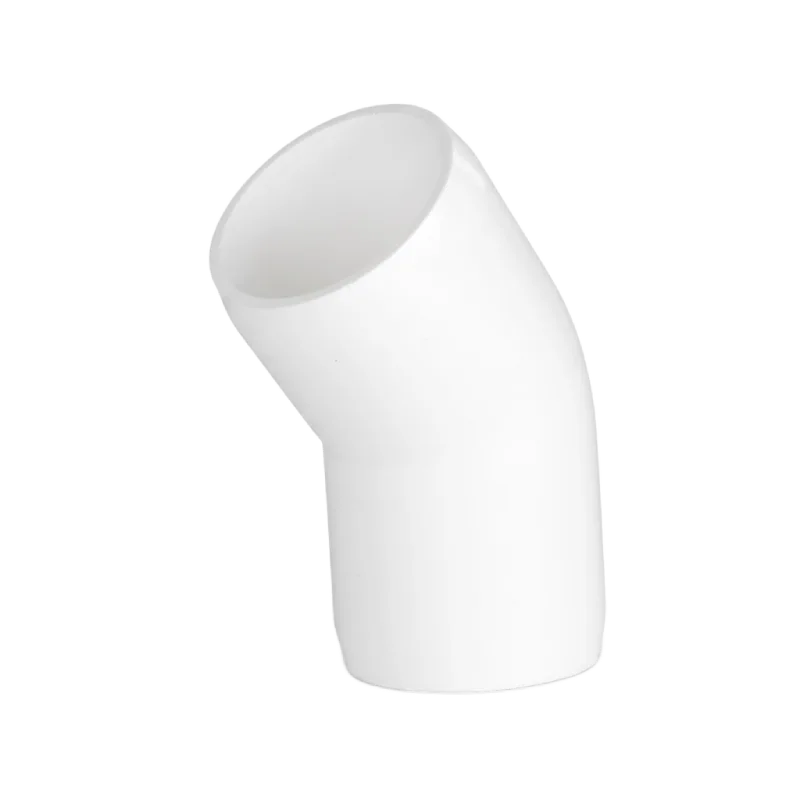

High Purity Short Radius 45° Bend
The High Purity Short Radius 45° Bend is a precision-engineered fitting designed to smoothly redirect the flow in high-purity piping systems with minimal space requirements. Manufactured from ultra-clean materials such as PVDF HP, PFA, PP-H, or High-Purity PE, this bend ensures contamination-free fluid transfer and stable flow characteristics.
Its 45-degree short-radius design reduces pressure losses and turbulence while maintaining compact installation dimensions, making it ideal for semiconductor fabs, pharmaceutical cleanrooms, biotechnology plants, UPW systems, and other high-purity fluid distribution networks.
Smooth inner surfaces, exceptional chemical resistance, and compatibility with high-purity welding techniques make this fitting an essential component in advanced process piping applications.
High Purity Short Radius 45° Bend
- Short-radius 45° bend ideal for compact installations and directional changes.
- Ultra-clean, low particle generation materials ensure contamination-free flow.
- High chemical and thermal resistance suitable for aggressive processing environments.
- Optimized internal geometry to minimize pressure drop and maintain stable flow.
- Seamless fusion compatibility with IR welding, butt welding, and high-purity joining systems.
- Non-leaching and corrosion-resistant for the highest purity applications.
- Tight dimensional tolerances guarantee perfect alignment and weld consistency.
- Complies with SEMI F57, ASTM, DIN, ISO, USP Class VI standards.
Technical Details of High Purity Short Radius 45° Bend
| Parameter | Specification |
|---|---|
| Product Name | High Purity Short Radius 45° Bend |
| Material Options | PVDF HP, PFA, PP-H, High-Purity PE |
| Function | Smooth 45° directional change in clean piping systems |
| Bend Radius | Short Radius (1D) |
| Size Range | 20 mm – 110 mm (varies by material) |
| Wall Thickness (SDR) | SDR 21, SDR 17, SDR 13.5, SDR 11 |
| Operating Temperature | PVDF HP: -40°C to 140°C; PFA: up to 220°C; PP-H: up to 90°C |
| Pressure Rating | PN10 / PN16 |
| Surface Roughness | ≤ 0.5 µm Ra (high-purity finish) |
| Joining Methods | IR Welding, Butt Fusion, Socket Fusion |
| Chemical Resistance | Excellent—UPW, acids, alkalis, solvents |
| Color | Natural/Translucent (material dependent) |
| Applications | Semiconductor, UPW, pharma, biotech, cleanroom piping |
| Standards Compliance | SEMI F57, ASTM, DIN, ISO, USP Class VI |
Customization & Processing Options
Customizations Option Available for High Purity Short Radius 45° Bend
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
