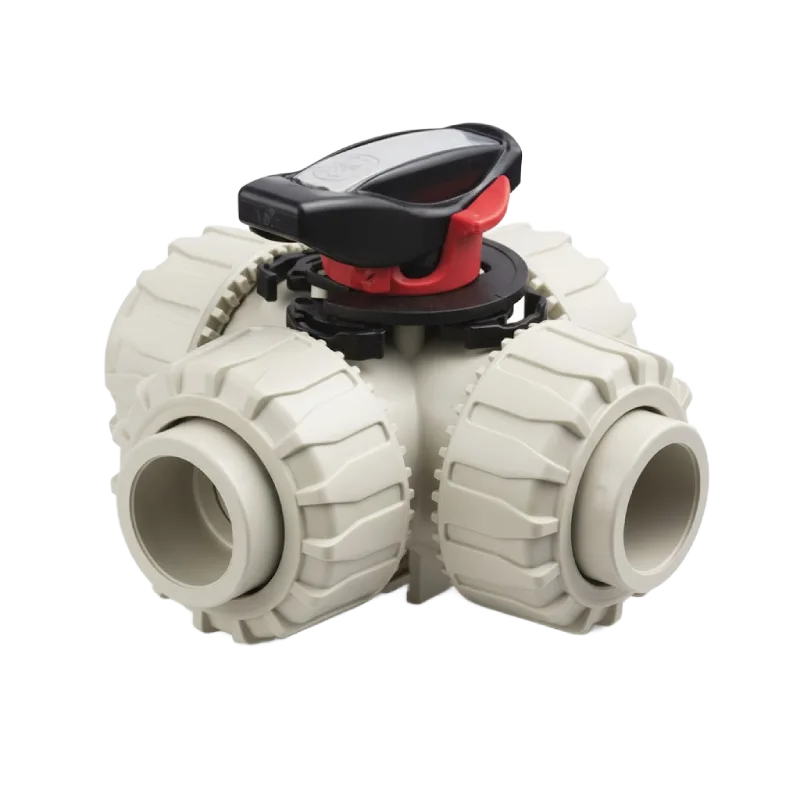

PPH 3 Way Ball Valve L-Port Type
The PPH 3 Way Ball Valve L-Port Type is a highly versatile industrial valve designed for flow diversion and directional control in complex piping systems. Made from Polypropylene Homopolymer (PPH), this valve provides excellent resistance to chemicals, corrosion, and high temperatures. The L-Port configuration allows the valve to direct the flow between two outlet ports while shutting off the third, making it ideal for mixing, bypassing, or diverting fluid streams.
Engineered for durability and reliability, the PPH L-Port 3 Way Ball Valve ensures leak-proof operation, smooth rotation, and low torque handling, even under demanding conditions. It is widely used in chemical processing, water treatment, and industrial fluid transfer systems where corrosion resistance and flow control flexibility are essential.
PPH 3 Way Ball Valve L-Port Type
- L-Port Flow Design: Allows flow direction between two outlets or isolation of one line.
- High Chemical Resistance: Handles aggressive acids, alkalis, and chemical solutions safely.
- Durable PPH Construction: Offers high rigidity and temperature stability up to 95°C.
- Leak-Proof Operation: Precision-molded ball and seals ensure reliable shut-off.
- Lightweight and Non-Corrosive: Easier installation and maintenance compared to metal valves.
- Multiple Operation Modes: Available in manual, pneumatic, or electric actuation options.
- Customizable End Connections: Socket, threaded, or flanged ends for flexible installation.
- Smooth Flow Transition: Full bore design minimizes pressure drop and turbulence.
- UV and Weather Resistant: Suitable for both indoor and outdoor installations.
- Complies with International Standards: Designed and tested as per DIN, ISO, and ASTM norms.
Technical Details of PPH 3 Way Ball Valve L-Port Type
| Parameter | Specification |
|---|---|
| Product Name | PPH 3 Way Ball Valve – L-Port Type |
| Material | Polypropylene Homopolymer (PPH) |
| Design Type | 3-Way Ball, L-Port Configuration |
| End Connections | Socket / Threaded / Flanged |
| Operation | Manual, Electric Actuated, or Pneumatic Actuated |
| Size Range | ½” to 4” (DN15 – DN100) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Seal Material | EPDM / FPM (Viton) |
| Flow Direction | Diverting / Mixing (L-Port Flow Path) |
| Body Color | Light Grey / Beige |
| Standards Compliance | DIN 8077 / 8078, ISO 15493, ASTM D4101 |
| Mounting Options | ISO 5211 Top Flange for Actuator Mounting |
| Applications | Chemical Process Lines, Water Treatment Systems, Acid Handling, Industrial Piping |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
| SIZE (DN) | D | d | b | B1 | H | H1 | L |
|---|---|---|---|---|---|---|---|
| 15 | 54 | 14 | 53 | 30 | 137 | 81 | 22 |
| 20 | 69 | 22 | 65 | 38.5 | 172 | 109 | 24.5 |
| 25 | 82 | 25 | 68 | 46 | 200 | 130 | 28 |
| 32 | 82 | 25 | 68 | 46 | 208 | 130 | 32 |
| 40 | 117 | 38 | 92 | 65 | 240 | 154 | 35 |
| 50 | 117 | 38 | 92 | 65 | 246 | 154 | 38 |
| SIZE (DN) | G (ISO Pattern) | ØC (Stem/Square) | ØE (Bolt Hole Dia) | ||||
| 15 | F03 | 11 | 5.5 | ||||
| 20 | F03 | 11 | 5.5 | ||||
| 25 | F03 | 11 | 5.5 | ||||
| 32 | F03 | 11 | 5.5 | ||||
| 40 | F03 | 14 | 8.5 | ||||
| 50 | F03 | 14 | 8.5 |
SIZE (DN) – Diameter Nominal
D – External Diameter
d – Internal Diameter (Bore)
b – Body Width / Flange Thickness
B1 – Internal Depth / Secondary Width
H – Total Height
H1 – Centerline Height
L – Face-to-Face Length
G (ISO Pattern) – Flange Type Designation
ØC – Stem Diameter / Square Size
ØE – Bolt Hole Diameter
Customization & Processing Options
Customizations Option Available for PPH 3 Way Ball Valve L-Port Type
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
