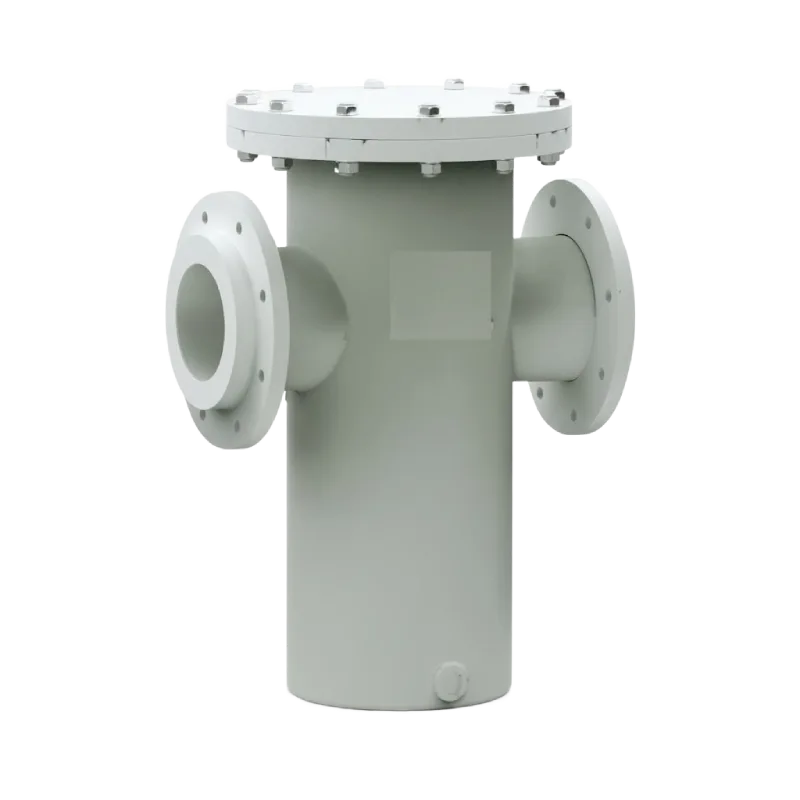

PPH Basket Strainer
The PPH Basket Strainer is a high-performance filtration component designed to remove solid particles and debris from industrial pipelines, ensuring smooth and uninterrupted fluid flow. Manufactured using Polypropylene Homopolymer (PPH), it offers excellent resistance to corrosive chemicals, acids, and high temperatures, making it ideal for demanding chemical and industrial processes.
This basket-type strainer features a large filtration area and easy maintenance design, allowing for efficient particle retention and quick cleaning without disrupting the system. Commonly installed before pumps, valves, and meters, the PPH Basket Strainer helps protect downstream equipment, extend system lifespan, and minimize operational downtime.
PPH Basket Strainer
- Efficient Filtration: Removes suspended solids and impurities from pipelines.
- Corrosion & Chemical Resistant: Made from premium-grade PPH suitable for aggressive fluids.
- High-Temperature Durability: Performs effectively up to +95°C.
- Easy Maintenance: Detachable basket for quick cleaning and reassembly.
- Large Filtration Area: Ensures consistent flow with minimal pressure loss.
- Leak-Proof Design: Precision-molded housing with reliable sealing elements.
- Protects Equipment: Prevents clogging and damage to pumps, valves, and meters.
- Versatile Applications: Ideal for chemical, water treatment, and industrial systems.
- Complies with International Standards: Designed as per DIN and ISO specifications.
Technical Details of PPH Basket Strainer
| Parameter | Specification |
|---|---|
| Product Name | PPH Basket Strainer |
| Material | Polypropylene Homopolymer (PPH) |
| Design Type | Basket-Type Filtration Unit |
| End Connection | Flanged / Socket Weld / Threaded |
| Size Range | ½” to 6” (DN15 – DN150) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Seal Material | EPDM / FPM (Viton) |
| Filter Mesh Material | PPH / Stainless Steel (Optional) |
| Filtration Degree | 100 – 1000 Microns (Customizable) |
| Installation Position | Vertical or Horizontal |
| Body Color | Light Grey / Beige |
| Working Medium | Water, Acids, Alkalis, Industrial Chemicals |
| Standard Compliance | DIN 3441, ISO 15493, ASTM D4101 |
| Applications | Chemical Processing, Water Treatment, Power Generation, Cooling Systems, Industrial Filtration Lines |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Basket Strainer
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
