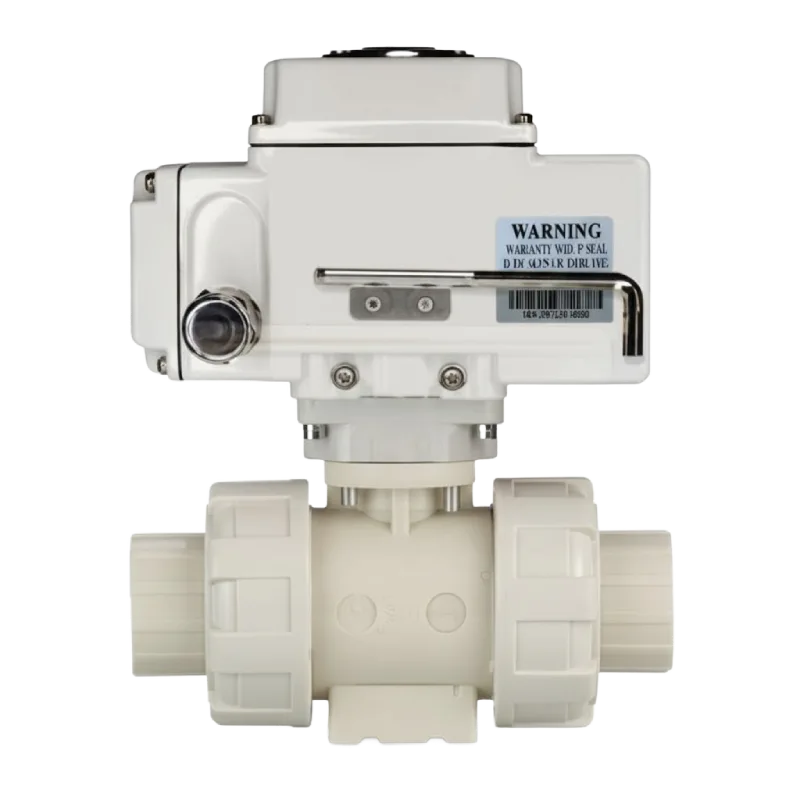

PPH Electric Actuator Ball Valve
The PPH Electric Actuator Ball Valve is a precision-engineered flow control device designed for automated and reliable operation in corrosive and high-demand industrial environments. Manufactured using Polypropylene Homopolymer (PPH), this valve offers excellent chemical resistance, mechanical strength, and thermal stability, making it ideal for applications involving acids, alkalis, and aggressive chemicals.
The electric actuator provides remote and automatic control, allowing seamless integration into industrial automation systems. It enables precise flow regulation with rapid response time and consistent torque. Suitable for on/off or modulating control, this valve is widely used in chemical processing, water treatment plants, semiconductor industries, and fluid transport systems.
PPH Electric Actuator Ball Valve
- Automated Operation: Equipped with a high-performance electric actuator for remote and automatic control.
- Excellent Chemical Resistance: PPH body ensures long-term durability in aggressive fluid environments.
- Full Bore Design: Provides minimal pressure loss and unrestricted fluid flow.
- Reliable Sealing: Fitted with PTFE seats and EPDM/FPM O-rings for superior leak-tight performance.
- Corrosion-Proof Actuator Housing: Designed to withstand harsh industrial conditions.
- Quick and Precise Actuation: Fast opening/closing with accurate torque delivery.
- Multiple Control Options: Available in on/off and modulating (4–20 mA) versions.
- Easy Installation & Maintenance: ISO 5211 mounting pad ensures compatibility with various actuator system
- Temperature & Pressure Stability: Suitable for continuous operation under varying conditions.
Technical Details of PPH Electric Actuator Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Electric Actuator Ball Valve |
| Valve Body Material | Polypropylene Homopolymer (PPH) |
| Actuator Type | Electric (On/Off or Modulating Type) |
| End Connection | Socket / Threaded / Flanged |
| Operation Voltage | 24V DC / 110V AC / 230V AC |
| Control Signal | On/Off / 4–20mA / 0–10V |
| Size Range | ½” to 4” (DN15 – DN100) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Seal Material | EPDM / FPM (Viton) |
| Ball Seat Material | PTFE |
| Torque Output (Actuator) | 20 Nm – 100 Nm (Depending on Size) |
| Protection Class (Actuator) | IP67 (Weatherproof) |
| Mounting Interface | ISO 5211 Standard |
| Cycle Time (Open/Close) | 5–15 seconds (depending on actuator model) |
| Body Color | Light Grey / Beige |
| Working Medium | Water, Acids, Alkalis, Industrial Chemicals |
| Standards Compliance | DIN 3441, ISO 5211, ASTM D4101 |
| Applications | Chemical Processing, Water Treatment, Power Plants, Food & Beverage, Industrial Automation Systems |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Electric Actuator Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
