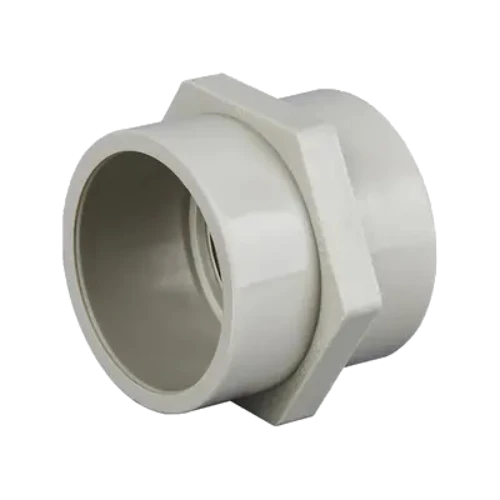

PPH Female Threaded Adaptor
The PPH Female Threaded Adaptor is a durable thermoplastic fitting used to connect PPH pipelines to components with male threaded ends. Manufactured from Polypropylene Homopolymer (PPH), this adaptor provides high resistance to chemical corrosion, excellent thermal stability, and robust mechanical strength.
Designed for industrial piping systems where aggressive chemicals or fluids are handled, this fitting ensures a secure, leak-free transition between a welded PPH pipeline and threaded equipment such as pumps, valves, or instruments. It is widely used in UAE industries including chemical processing, water treatment, marine applications, and wastewater management.
PPH Female Threaded Adaptor
- Excellent Chemical Resistance: Suitable for aggressive chemicals like acids, alkalis, and chlorinated compounds.
- Threaded Interface: Connects easily to standard BSPT or NPT male threaded components.
- Fusion Weldable: Plain end allows for socket or butt welding to PPH pipes.
- Leak-Free Seal: Precisely molded for tight, vibration-resistant connections.
- Non-Corrosive Build: Does not degrade in corrosive or humid environments.
- UV-Resistant Option: Ideal for both indoor and outdoor use in harsh UAE conditions.
- Lightweight & Easy to Install: Reduces installation time and system weight.
Technical Details of PPH Female Threaded Adaptor
| Specification | Details |
|---|---|
| Product Type | PPH Female Threaded Adaptor |
| Material | Polypropylene Homopolymer (PPH) |
| Connection Type | One side plain (for welding), one side female threaded |
| Thread Standards | BSPT or NPT (as required) |
| Standard Sizes | DN15 to DN110 (½” to 4") |
| Pressure Rating | PN10 / PN16 |
| Operating Temperature | 0°C to +100°C (short-term up to 110°C) |
| Color | Light Grey |
| Density at 23°C | ~0.91 g/cm³ |
| Tensile Strength | ≥25 MPa |
| UV Resistance | Optional for outdoor installations |
| Chemical Compatibility | Excellent with acids, bases, solvents, and aggressive media |
| Applications | Chemical dosing units, industrial pipelines, water treatment systems, marine and desalination facilities across the UAE |

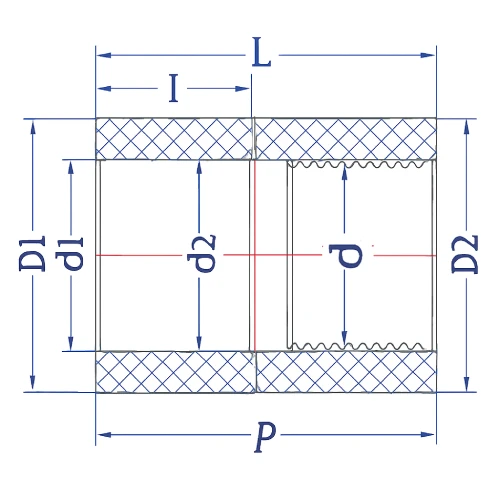

| Nominal Size | d1 (mm) | d2 (mm) | l (mm) | D1 (mm) | D2 (mm) | d (mm) | L (mm) | PT (mm) |
|---|---|---|---|---|---|---|---|---|
| 20×½″ | 22.4 | 21.25 | 30 | 29.5 | 32.5 | 18 | 49 | 14 |
| 25×¾″ | 26.45 | 25.42 | 35 | 34 | 42 | 23.5 | 58 | 14 |
| 32×1″ | 32.55 | 31.37 | 40 | 41 | 50 | 30 | 66 | 11 |
| 40×1¼″ | 38.6 | 37.31 | 44 | 47 | 55 | 36 | 71 | 11 |
| 50×1½″ | 48.7 | 47.21 | 55 | 58 | 63 | 46 | 83 | 11 |
| 63×2″ | 60.8 | 59.1 | 63 | 72 | 77 | 58 | 94 | 11 |
- d1 – Inner Diameter of Socket Side
- d2 – Outer Diameter of Threaded Side
- l – Insertion Length of Socket
- D1 – Outer Diameter near Socket Side
- D2 – Outer Diameter near Threaded Side
- d – Internal Bore Diameter
- L – Total Length of the Adapter
- PT – Thread Length (Pipe Thread Length)
Customization & Processing Options
Customizations Option Available for PPH Female Threaded Adaptor
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
