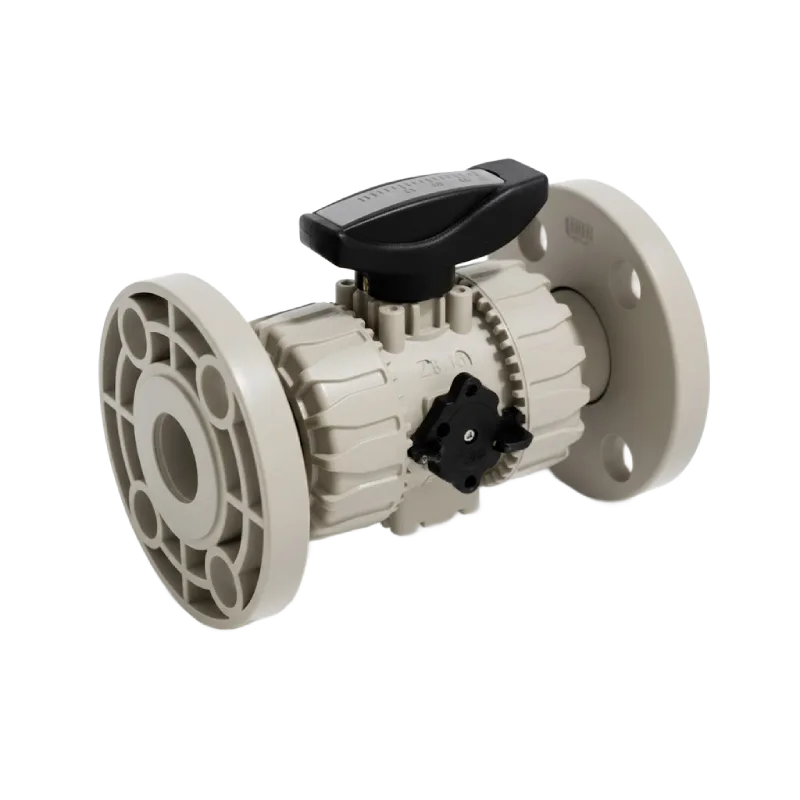

PPH Flanged Ball Valve
The PPH Flanged Ball Valve is a premium-grade industrial valve made from Polypropylene Homopolymer (PPH), engineered to handle corrosive, chemical, and high-temperature applications with superior efficiency. Featuring flanged end connections, this valve ensures easy installation and secure sealing for pipeline systems in industries such as chemical processing, water treatment, and industrial manufacturing.
Its full-bore design allows unrestricted flow, reducing pressure loss and optimizing performance. The precision-engineered ball and PTFE seats ensure tight shutoff, while the PPH construction provides outstanding resistance to acids, alkalis, and other aggressive media. The valve is suitable for both manual and automated actuation, offering versatility for various operational needs.
PPH Flanged Ball Valve
- High Chemical Resistance: PPH body resists strong acids, alkalis, and aggressive chemicals.
- Flanged End Connection: Ensures secure installation and compatibility with standard pipeline systems.
- Full Bore Design: Provides maximum flow with minimal pressure drop.
- Durable Construction: Corrosion-free, UV-resistant, and long service life even in harsh environments.
- Tight Shut-Off: PTFE ball seats guarantee zero leakage and smooth operation.
- High Thermal Stability: Can handle continuous service temperatures up to +95°C.
- Automation Ready: Compatible with electric or pneumatic actuators for advanced flow control.
- Low Maintenance: Simple design allows easy servicing and part replacement.
- Environment-Friendly: Non-toxic, lightweight, and recyclable material.
Technical Details of PPH Flanged Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Flanged Ball Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Ball Material | PPH |
| Seat Material | PTFE (Teflon) |
| Seal Material | EPDM / FPM (Viton) |
| End Connection | Flanged (DIN / ANSI Standard) |
| Operation Type | Manual Lever / Electric / Pneumatic Actuation |
| Size Range | DN15 – DN150 (½” – 6”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Working Medium | Water, Acids, Alkalis, Corrosive Liquids |
| Flow Design | Full Bore |
| Color | Light Grey / Beige |
| Mounting Standard | ISO 5211 (for actuation) |
| Body Design | One-piece / Two-piece construction |
| Leakage Class | Bubble-tight (Class VI) |
| Operating Torque | Low torque for easy manual operation |
| Applicable Standards | DIN 3441, ISO 9393, ASTM D4101 |
| Installation Orientation | Horizontal / Vertical |
| Applications | Chemical Processing, Water Treatment, Pharmaceutical, Food & Beverage, Industrial Piping |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Flanged Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
