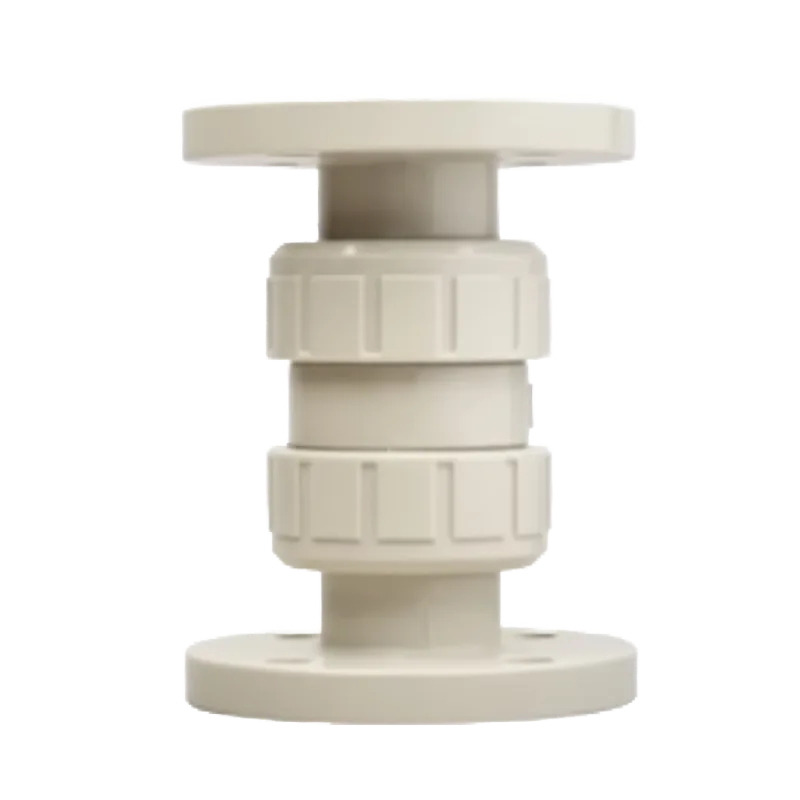

PPH Flanged Check Valve
The PPH Flanged Check Valve is a durable, corrosion-resistant valve designed to prevent backflow in industrial and chemical piping systems. Constructed from Polypropylene Homopolymer (PPH), this valve provides excellent resistance to a wide range of corrosive chemicals, acids, and alkalis. Its flanged end connections ensure secure installation and compatibility with standard pipeline systems, offering superior sealing performance and reliability.
This non-return valve operates automatically, allowing flow in one direction while preventing reverse flow to protect pumps, pipelines, and other critical components. Ideal for use in chemical processing plants, wastewater systems, and marine applications, the PPH Flanged Check Valve guarantees long-term durability, minimal maintenance, and efficient flow control under challenging conditions.
PPH Flanged Check Valve
- Reliable Non-Return Function: Prevents backflow and protects pumps and pipelines.
- Flanged Connection: Easy installation and maintenance with standard flange compatibility (DIN/ANSI).
- Corrosion-Resistant PPH Body: Withstands harsh chemicals and aggressive fluids.
- High Temperature Resistance: Suitable for operating temperatures up to +95°C.
- Excellent Sealing Performance: Features precision sealing with EPDM or FPM O-rings for leak-free operation.
- Automatic Operation: No manual intervention needed — responds to fluid pressure automatically.
- Low Pressure Drop: Streamlined internal design ensures efficient fluid flow.
- Maintenance-Free Design: Simple structure reduces downtime and servicing needs.
- Lightweight & Environmentally Safe: Non-toxic and recyclable PPH material.
Technical Details of PPH Flanged Check Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Flanged Check Valve |
| Valve Type | Non-Return Valve (Swing / Ball Type) |
| Body Material | Polypropylene Homopolymer (PPH) |
| Disc / Ball Material | PPH |
| Seal Material | EPDM / FPM (Viton) |
| End Connection | Flanged (DIN / ANSI Standard) |
| Operation Type | Automatic (Non-Return Function) |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Flow Direction | Uni-Directional |
| Installation Orientation | Horizontal / Vertical |
| Working Medium | Water, Acids, Alkalis, Industrial Chemicals |
| Color | Light Grey / Beige |
| Body Design | One-piece molded body |
| Seal Type | Soft-seated, leak-proof design |
| Applicable Standards | DIN 3441, ISO 9393, ASTM D4101 |
| Mounting Standard | Flange according to DIN/ANSI |
| Maintenance | Low / Maintenance-Free |
| Applications | Chemical Processing, Water Treatment, Marine, Power Generation, Food & Beverage |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Flanged Check Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
