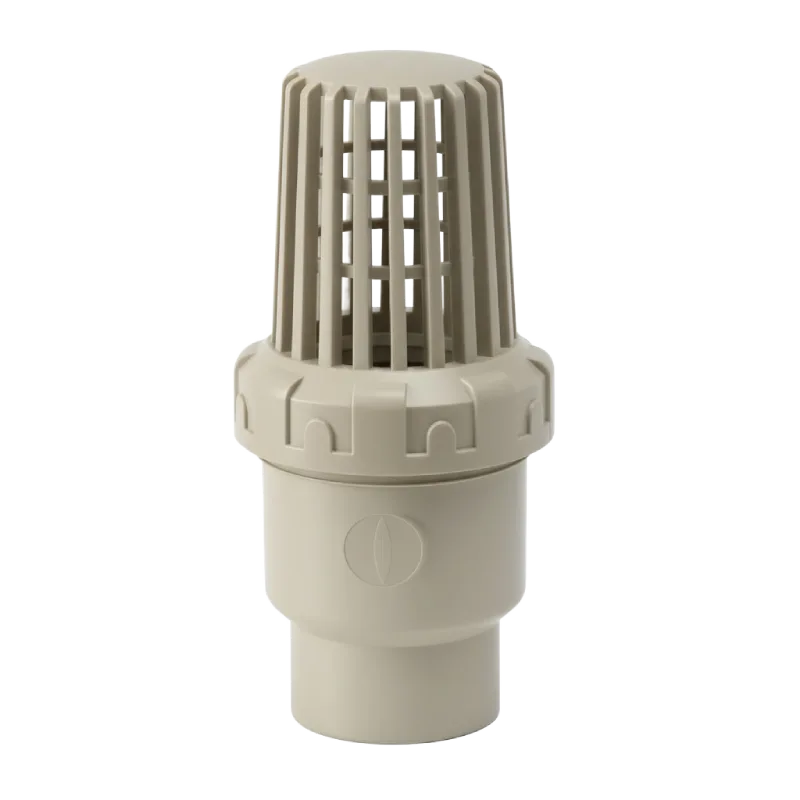

PPH Foot Valve
The PPH Foot Valve is a durable, corrosion-resistant non-return valve designed to be installed at the bottom of suction lines to prevent the reverse flow of liquids and maintain the pump’s prime. Manufactured from Polypropylene Homopolymer (PPH), this valve offers outstanding resistance to chemicals, acids, and alkalis, making it ideal for chemical processing, wastewater management, and industrial fluid systems.
Equipped with a strainer screen, the PPH Foot Valve effectively filters debris, preventing damage to pumps and pipelines. Its lightweight and maintenance-free design, combined with excellent hydraulic performance, ensures reliable operation in even the most demanding fluid handling applications.
PPH Foot Valve
- Non-Return Function: Prevents backflow and maintains pump priming.
- High Chemical Resistance: PPH construction resists corrosion, acids, and alkalis.
- Integrated Strainer Design: Filters out impurities and protects pumping equipment.
- Temperature Resistant: Suitable for operating temperatures up to +95°C.
- Lightweight & Easy to Install: Simple design enables quick assembly and minimal maintenance.
- High Flow Efficiency: Optimized internal design minimizes pressure drop.
- Reliable Sealing: Equipped with EPDM or FPM seals for leak-proof performance.
- UV and Weather Resistant: Suitable for both indoor and outdoor installations.
- Long Service Life: Durable PPH material ensures long-term reliability under continuous use.
Technical Details of PPH Foot Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Foot Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Seat Material | EPDM / FPM (Viton) |
| Strainer Material | PPH |
| End Connection | Socket / Threaded / Flanged (DIN / ANSI Standard) |
| Valve Type | Non-Return (Foot Valve with Strainer) |
| Size Range | DN15 – DN200 (½” – 8”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Flow Direction | Upward (Suction Line) |
| Installation Orientation | Vertical |
| Working Medium | Water, Chemicals, Acids, Alkalis, Corrosive Liquids |
| Color | Light Grey / Beige |
| Seal Type | Soft-Seated, Leak-Proof |
| Applicable Standards | DIN 3441, ISO 9393, ASTM D4101 |
| Maintenance | Low / Easy to Clean Strainer |
| Body Design | One-Piece Moulded with Strainer Base |
| Weight | Lightweight for Easy Handling |
| Applications | Chemical Plants, Water Treatment, Irrigation, Wastewater, Industrial Piping Systems |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Foot Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
