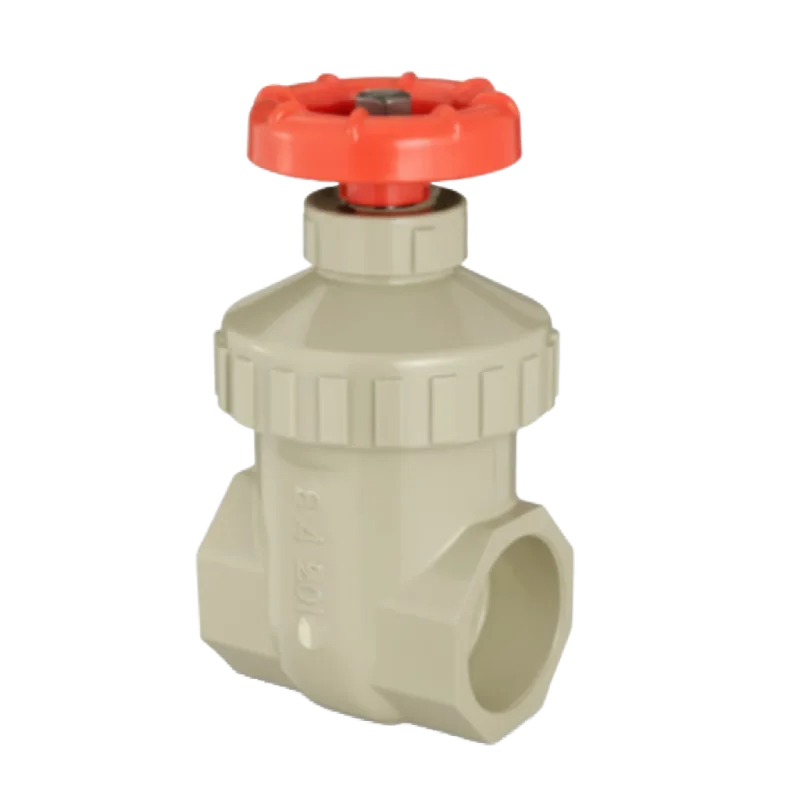

PPH Gate Valve
The PPH Gate Valve is a robust and corrosion-resistant isolation valve designed for on/off control of fluid flow in industrial piping systems. Made from Polypropylene Homopolymer (PPH), it provides superior chemical resistance to a wide range of acids, alkalis, and corrosive media, making it ideal for chemical processing, water treatment, and industrial applications.
The valve operates using a rising or non-rising stem mechanism, allowing smooth and reliable opening or closing of the gate for full bore, unobstructed flow. Its flanged or socket end connections ensure easy installation and maintenance. The PPH Gate Valve delivers long service life, leak-free performance, and dependable operation even under demanding conditions
PPH Gate Valve
- Full Bore Design: Provides unrestricted flow and minimal pressure drop.
- Corrosion-Resistant PPH Construction: Excellent resistance to acids, alkalis, and aggressive chemicals.
- Reliable Sealing System: Features soft-seated EPDM or FPM seals for tight shutoff.
- Smooth Operation: Low operating torque for easy manual control.
- High Temperature Capability: Suitable for service temperatures up to +95°C.
- Strong Mechanical Strength: Withstands high internal pressures without deformation.
- Easy Installation: Available with flanged or socket ends compatible with DIN/ANSI standards.
- Maintenance-Free: Lightweight, durable, and resistant to scaling or corrosion buildup.
- Optional Actuation: Can be fitted with electric or pneumatic actuators for automated systems.
Technical Details of PPH Gate Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Gate Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Gate Material | PPH |
| Seal Material | EPDM / FPM (Viton) |
| End Connection | Flanged / Socket / Threaded (DIN / ANSI Standard) |
| Operation Type | Manual Handwheel / Electric / Pneumatic Actuation |
| Valve Type | Rising or Non-Rising Stem |
| Size Range | DN25 – DN300 (1” – 12”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Flow Direction | Bi-Directional |
| Body Design | Full Bore Straight Flow |
| Color | Light Grey / Beige |
| Working Medium | Water, Acids, Alkalis, Corrosive Chemicals |
| Mounting Standard | ISO 5211 (for actuation) |
| Applicable Standards | DIN 3352, ISO 9393, ASTM D4101 |
| Leakage Class | Class VI (Bubble Tight) |
| Operation Torque | Low – Manual Operation |
| Maintenance | Low / Easy Access for Seal Replacement |
| Installation Orientation | Horizontal / Vertical |
| Applications | Chemical Processing, Water Treatment, Power Generation, Food & Beverage, Industrial Piping Systems |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Gate Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
