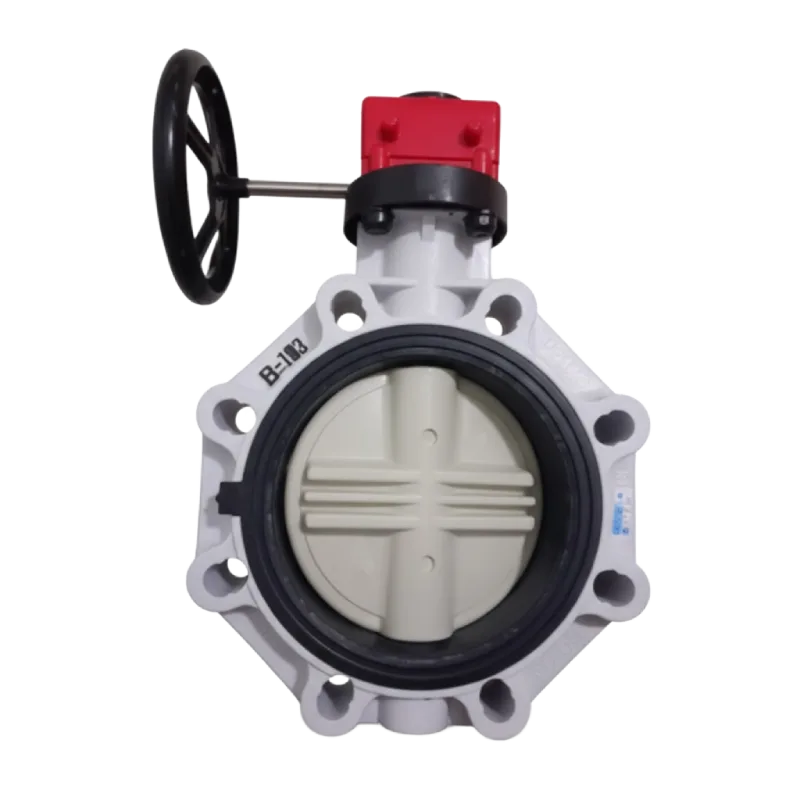

PPH Gear Operated Butterfly Valve
The PPH Gear Operated Butterfly Valve is a heavy-duty flow control valve engineered for precise regulation and reliable shut-off in industrial fluid systems. Constructed from Polypropylene Homopolymer (PPH), this valve offers exceptional resistance to corrosive chemicals, acids, and alkalis, making it ideal for use in chemical processing, water treatment, and marine applications.
The valve features a gear-operated handwheel mechanism, allowing for smooth and controlled operation, especially in larger pipe sizes where manual torque can be significant. Its full-bore disc design ensures minimal pressure drop and maximum flow efficiency. The PPH Gear Operated Butterfly Valve combines mechanical strength, chemical stability, and operational precision, making it suitable for demanding industrial environments.
PPH Gear Operated Butterfly Valve
- Gear Operated Mechanism: Provides effortless operation and precise control, especially for large diameters.
- Excellent Chemical Resistance: PPH body withstands aggressive chemicals, acids, and alkalis.
- Tight Sealing Performance: Equipped with EPDM or FPM liners for leak-proof sealing.
- Full Bore Flow: Optimized disc design reduces pressure loss and supports efficient fluid transfer.
- High Temperature Resistance: Suitable for applications up to +95°C.
- Durable & Maintenance-Free: Strong, lightweight, and corrosion-proof design ensures long service life.
- Easy Installation: Compatible with both DIN and ANSI flanged systems.
- Manual Override: Gearbox includes handwheel for emergency operation.
- Automation Ready: Can be upgraded with electric or pneumatic actuators.
- Versatile Use: Ideal for throttling and isolation applications across industries.
Technical Details of PPH Gear Operated Butterfly Valve
| Product Name | PPH Gear Operated Butterfly Valve |
|---|---|
| Body Material | Polypropylene Homopolymer (PPH) |
| Disc Material | PPH |
| Shaft Material | Stainless Steel / PPH Coated |
| Liner Material | EPDM / FPM (Viton) |
| End Connection | Wafer Type / Flanged (DIN / ANSI Standard) |
| Operation Type | Gear Operated (Manual Handwheel) |
| Gearbox Type | Worm Gear with Position Indicator |
| Size Range | DN50 – DN400 (2” – 16”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Flow Direction | Bi-Directional |
| Operation Torque | Low – Gear Assisted |
| Body Design | Center Disc, Full Bore |
| Color | Light Grey / Beige |
| Mounting Standard | ISO 5211 (Actuation Compatible) |
| Applicable Standards | DIN 3441, ISO 9393, ASTM D4101 |
| Seal Type | Soft-Seated (EPDM / FPM) |
| Leakage Class | Class VI (Bubble Tight) |
| Working Medium | Water, Acids, Alkalis, Industrial Chemicals |
| Installation Orientation | Horizontal / Vertical |
| Maintenance | Low / Easy Gearbox Servicing |
| Applications | Chemical Processing, Water Treatment, Power Generation, Food & Beverage, Marine Systems |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Gear Operated Butterfly Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
