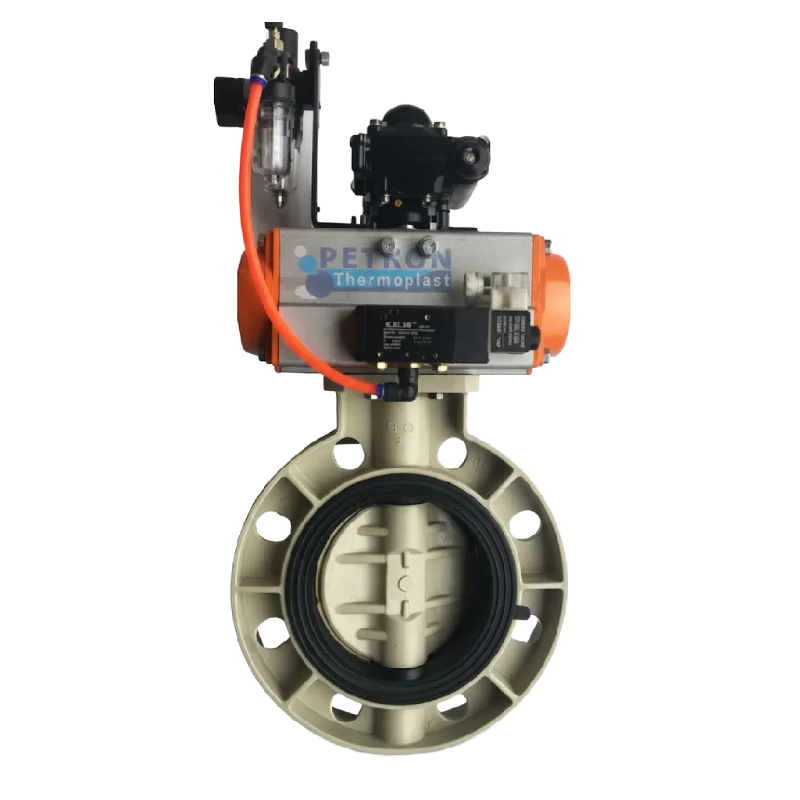

PPH Pneumatic Actuated Butterfly Valve
The PPH Pneumatic Actuated Butterfly Valve is a robust and efficient flow control solution designed for automated regulation of fluids in industrial piping systems. Made from Polypropylene Homopolymer (PPH), this valve offers superior chemical resistance, high mechanical strength, and lightweight durability, making it ideal for applications involving corrosive chemicals, acids, and alkalis.
The pneumatic actuator ensures quick and reliable operation, allowing for remote control of fluid flow with minimal effort. It is designed for both on/off and modulating control and can be configured with single or double acting actuators. The PPH Pneumatic Butterfly Valve is widely used in chemical processing, wastewater treatment, electroplating, and industrial water systems where durability and automation efficiency are crucial.
PPH Pneumatic Actuated Butterfly Valve
- Automated Operation: Equipped with a pneumatic actuator for fast, efficient, and reliable flow control.
- Excellent Chemical Resistance: Ideal for handling aggressive chemicals and corrosive media.
- Compact and Lightweight: Easy to install and maintain, with reduced space requirements.
- Wide Operating Range: Suitable for temperatures up to +95°C and pressures up to PN10.
- Leak-Proof Performance: Advanced sealing with EPDM or FPM gaskets ensures tight shut-off.
- Versatile Control Options: Available in both single acting (spring return) and double acting configurations.
- High Cycle Life: Designed for long-lasting performance with minimal wear and tear.
- Corrosion-Free Construction: 100% plastic body and disc eliminate rust and metal contamination.
- ISO and DIN Compliant: Manufactured according to global industrial standards.
- Low Maintenance: Simple design reduces operational downtime and maintenance costs.
Technical Details of PPH Pneumatic Actuated Butterfly Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Pneumatic Actuated Butterfly Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Disc Material | PPH |
| Seat Material | EPDM / FPM / PTFE |
| Shaft Material | Stainless Steel / PPH-Coated |
| Actuator Type | Pneumatic (Single Acting / Double Acting) |
| End Connection | Wafer Type (Fits Between Flanges) |
| Size Range | DN50 – DN300 (2” – 12”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +95°C |
| Operation | On/Off or Modulating Control |
| Control Signal | 3/2 or 5/2 Solenoid Valve, 4–20mA with Positioner (Optional) |
| Body Design Standard | ISO 5752 / DIN 3202-K2 |
| Flange Compatibility | DIN / ANSI / JIS Standards |
| Mounting Standard | ISO 5211 for Actuator Mounting |
| Flow Direction | Bi-Directional |
| Leakage Class | Class VI (Bubble Tight) |
| Working Medium | Water, Acids, Alkalis, Chemical Solutions |
| Actuator Material | Aluminum Alloy (Hard Anodized) / Polypropylene Casing (Optional) |
| Actuation Time | <2 Seconds for 90° Rotation (Depending on Air Supply) |
| Air Supply Pressure | 4 to 7 bar |
| Color | Light Grey (Valve) / Silver or Black (Actuator) |
| Maintenance | Low (Easy Access to Seat and Seal Replacement) |
| Certifications | ISO 9001:2015, DIN, ASTM D4101 |
| Applications | Chemical Plants, Water Treatment, Industrial Automation, Food & Beverage, Power Plants |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Pneumatic Actuated Butterfly Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
