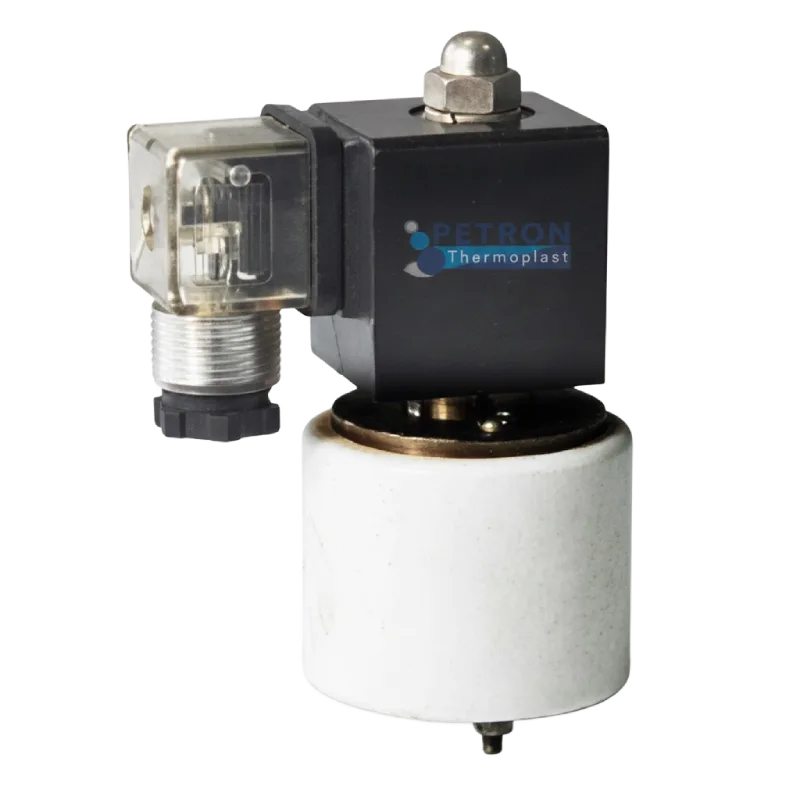

PPH Solenoid Valve
The PPH Solenoid Valve is an electrically operated flow control device designed for automating fluid regulation in chemical and industrial piping systems. Manufactured from Polypropylene Homopolymer (PPH), this valve offers exceptional resistance to corrosive chemicals, acids, and alkalis, making it ideal for harsh industrial environments.
The valve uses an electromagnetic actuator (solenoid coil) to open or close the flow path quickly and precisely. Its compact design, fast response time, and leak-proof operation make it an essential component in automated process systems, including chemical dosing, water treatment, and acid transfer lines. With options for normally closed (NC) or normally open (NO) configurations, the PPH Solenoid Valve ensures reliable performance with minimal maintenance.
PPH Solenoid Valve
- Automatic Operation: Electromagnetically controlled valve ensures precise and quick flow control.
- High Chemical Resistance: PPH body resists acids, alkalis, and aggressive chemicals.
- Leak-Proof Design: Fitted with high-quality seals for tight shutoff and long-term reliability.
- Compact and Lightweight: Space-saving design ideal for integrated system setups.
- Various Configurations: Available in Normally Closed (NC) and Normally Open (NO) types.
- Thermal Stability: Maintains performance from 0°C to +90°C.
- Low Maintenance: Smooth internal surfaces minimize clogging and scaling.
- Wide Voltage Options: Compatible with 24V DC, 110V AC, or 230V AC coils.
- Easy Installation: Suitable for horizontal or vertical mounting.
- Eco-Friendly Material: 100% recyclable PPH with no metallic corrosion.
Technical Details of PPH Solenoid Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Solenoid Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Operation Type | Electromagnetic (Solenoid Actuated) |
| Configuration | Normally Closed (NC) / Normally Open (NO) |
| End Connection | Socket / Threaded / Flanged |
| Size Range | DN15 – DN100 (½” – 4”) |
| Pressure Rating | PN10 |
| Temperature Range | 0°C to +90°C |
| Sealing Material | EPDM / FPM / PTFE |
| Coil Voltage Options | 24V DC / 110V AC / 230V AC |
| Body Color | Light Grey |
| Response Time | <1 Second |
| Flow Direction | Uni-Directional |
| Mounting Position | Horizontal / Vertical |
| Duty Cycle | 100% Continuous |
| Power Consumption | 8–20 Watts (Depending on Coil Type) |
| Protection Class | IP65 (Weather & Dust Resistant) |
| Leakage Class | Class VI (Bubble Tight) |
| Working Medium | Water, Acids, Alkalis, Chemicals, Process Fluids |
| Applicable Standards | ISO 9393 / DIN 3441 / IEC 60529 |
| Testing Pressure | 1.5 × PN (Hydrostatic Test) |
| Certifications | ISO 9001:2015 / CE / RoHS |
| Applications | Chemical Dosing, Water Treatment, Process Automation, Fertilizer Systems, Cooling Systems |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Solenoid Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
