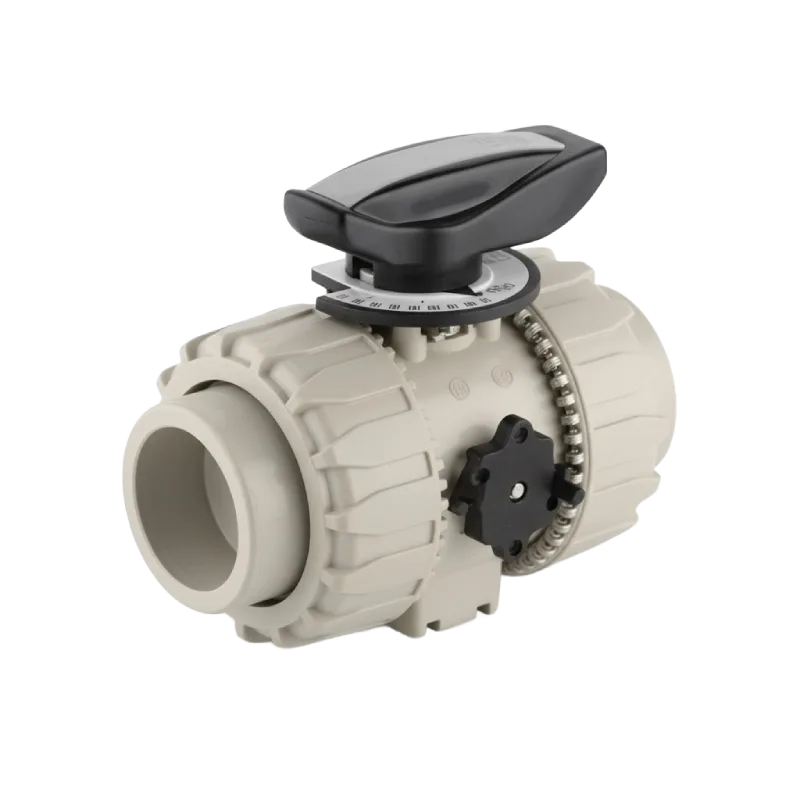

PPH Union Ball Valve
The PPH Union Ball Valve is a premium-grade industrial valve designed for precise control and shut-off of fluid flow in chemical, water treatment, and industrial piping systems. Made from Polypropylene Homopolymer (PPH), this valve offers exceptional chemical resistance, making it ideal for corrosive environments.
Its double union design allows for easy installation and maintenance, enabling the valve body to be removed without disturbing the pipe connections. The full-bore design ensures minimal pressure loss, while the ergonomic handle allows smooth manual operation. Durable and leak-proof, the PPH Union Ball Valve ensures long-lasting performance under demanding industrial conditions.
PPH Union Ball Valve
- Double Union Design: Enables easy installation, removal, and maintenance.
- Full Bore Flow: Ensures high flow efficiency with minimal pressure drop.
- Chemical & Corrosion Resistance: Ideal for handling acids, alkalis, and aggressive chemicals.
- Tight Shut-Off: Precision-molded ball and seats provide leak-proof operation.
- Lightweight & Durable: Strong PPH body with long service life and low maintenance.
- Wide Temperature Tolerance: Suitable for use in environments up to +90°C.
- Ergonomic Handle: Provides smooth, easy manual control.
- Replaceable Seals & Seats: For extended product life and convenient servicing.
- Eco-Friendly Material: Non-toxic and fully recyclable.
Technical Details of PPH Union Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | PPH Union Ball Valve |
| Body Material | Polypropylene Homopolymer (PPH) |
| Design Type | Full Bore, Double Union, Two-Way |
| End Connection | Socket / Threaded / Flanged |
| Size Range | DN15 – DN110 (½” – 4”) |
| Pressure Rating | PN10 |
| Temperature Range | 0°C to +90°C |
| Seal Material | EPDM / FPM (Viton) / PTFE |
| Ball Material | Solid PPH |
| Stem Material | PPH / Stainless Steel |
| Handle Material | Reinforced PP |
| Flow Direction | Bi-Directional |
| Operation | Manual Quarter-Turn |
| Mounting Options | Inline / Horizontal / Vertical |
| Color | Light Grey |
| Working Medium | Water, Acids, Alkalis, Chemicals |
| Leakage Class | Class VI (Bubble Tight) |
| Testing Pressure | 1.5 × PN (Hydrostatic Test) |
| Standards Compliance | ISO 9393 / DIN 3441 |
| Density | 0.9 g/cm³ |
| Weight | Lightweight for Easy Handling |
| Maintenance | Easy – Union Design Enables Quick Service |
| Applications | Chemical Processing, Water Treatment, Industrial Pipelines, Cooling Systems, Wastewater Lines |
| Manufacturer / Supplier | Petron Thermoplast FZ LLC, UAE |
Customization & Processing Options
Customizations Option Available for PPH Union Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
