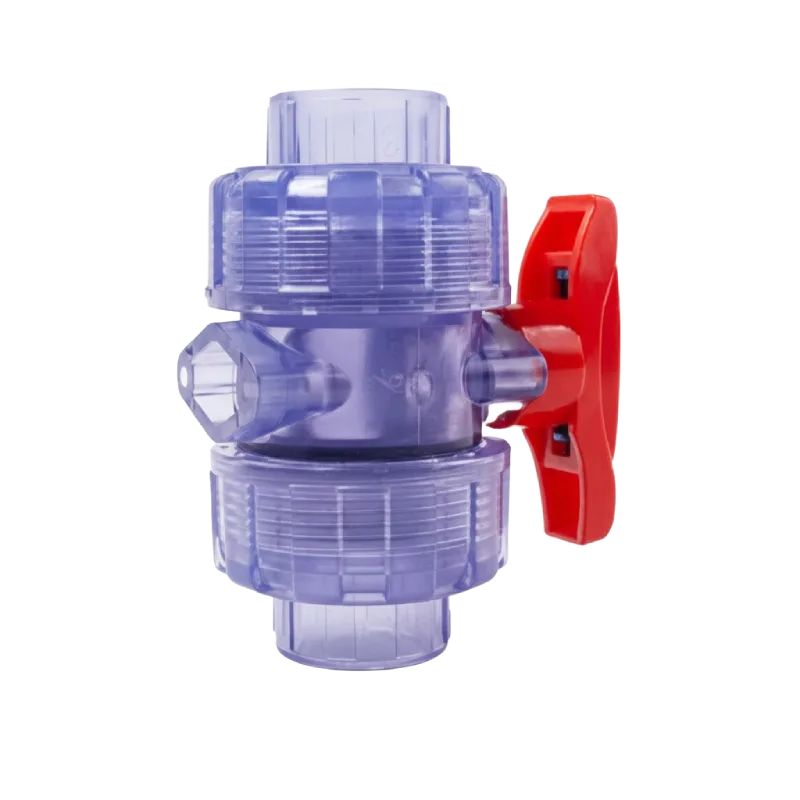

PVC Transparent Ball Valve
The PVC Transparent Ball Valve is specially designed for applications requiring clear visual observation of fluid flow and internal valve operation. Made from high-clarity transparent PVC, this valve allows users to easily monitor flow behavior, detect blockages, observe contamination, and verify open/closed positions without disassembly.
It features a precision-machined ball for smooth operation, corrosion-resistant construction, and a leak-proof sealing system suitable for low-pressure and chemical applications. This valve is ideal for laboratories, water treatment systems, aquaculture, chemical dosing, and any pipeline where inspection and transparency are essential.
PVC Transparent Ball Valve
- Transparent PVC body for complete visibility of flow and ball operation.
- Corrosion-resistant & non-metallic construction suitable for chemicals and clean fluids.
- Smooth-operating ball mechanism ensures low torque and reliable shut-off.
- Double O-ring sealing for leak-proof performance.
- Lightweight and easy to install with socket, threaded, or union ends.
- Chemical-resistant ball and seals for extended service life.
- Ideal for visual inspection, preventing blockages or contamination issues.
- Suitable for low-pressure and laboratory applications.
Technical Details of PVC Transparent Ball Valve
| Parameter | Specification |
|---|---|
| Product Name | PVC Transparent Ball Valve |
| Body Material | High-Clarity Transparent PVC |
| Ball Material | Transparent or Solid PVC (depending on model) |
| Seal Material | EPDM / FKM |
| Connection Type | Socket / Threaded / Union (ASTM, DIN, ISO Standards) |
| Available Sizes | ½" to 2" (DN15 to DN50) |
| Pressure Rating | PN6 – PN10 (Low to Medium Pressure) |
| Temperature Range | 0°C to 55°C |
| Working Medium | Water, light chemicals, lab fluids, low-viscosity liquids |
| Operation Type | Manual quarter-turn handle |
| Transparency Level | Up to 90% light transmission |
| Flow Characteristics | Full-port design for maximum flow |
| Chemical Resistance | Excellent against acids, alkalis & non-organic chemicals |
| Installation Orientation | Horizontal or vertical |
| Standards Compliance | ASTM / DIN / ISO manufacturing standards |
Customization & Processing Options
Customizations Option Available for PVC Transparent Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
