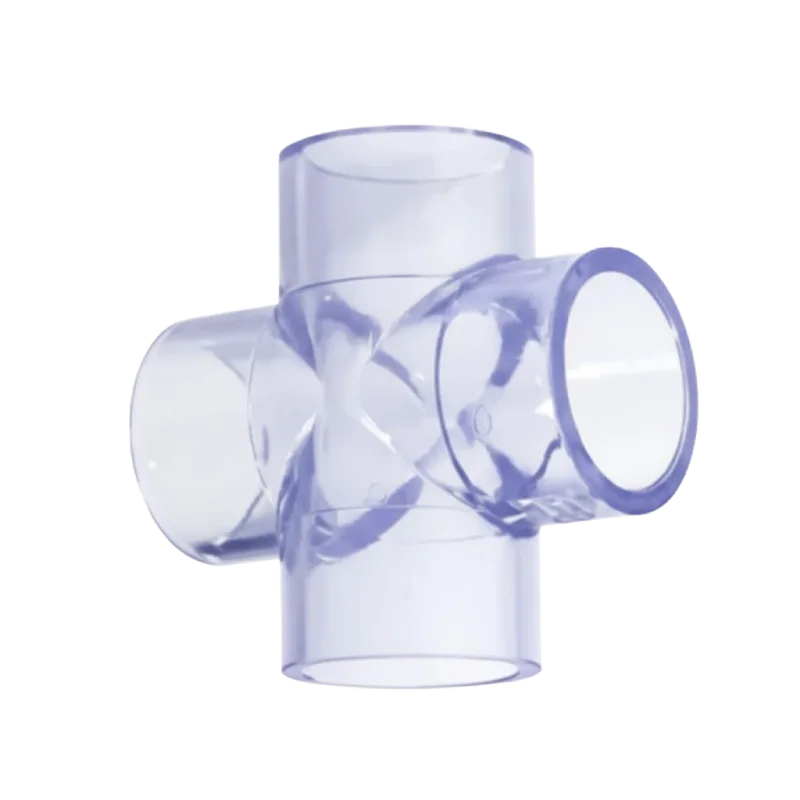

PVC Transparent Cross Tee
The PVC Transparent Cross Tee is a specialized fitting designed for multi-directional flow distribution in piping systems while allowing clear visual monitoring of fluid movement. Manufactured from high-quality transparent PVC material, this fitting provides excellent chemical resistance, impact strength, and long-term durability. Its transparent body enables operators to visually inspect fluid clarity, flow direction, blockages, and contamination without dismantling the system—making it ideal for laboratories, food processing units, water treatment plants, and industrial fluid handling applications.
The cross tee design allows four-way connections, ensuring efficient branching and smooth flow distribution within the pipeline. Lightweight, corrosion-free, and easy to install, the PVC Transparent Cross Tee is a preferred choice for systems requiring high visibility and reliable performance.
PVC Transparent Cross Tee
- Crystal Clear Transparency for easy visual inspection of fluid flow and contamination detection.
- High Chemical Resistance, ideal for acids, alkalis, and various industrial chemicals.
- Four-Way Connection Design enabling efficient distribution to multiple lines.
- Lightweight & Easy to Install, reducing overall system assembly time.
- Leak-Proof Construction with precision-molded dimensions for tight, secure fittings.
- Non-Corrosive & Rust-Free, ensuring long service life even in harsh environments.
- Smooth Internal Surface for minimal pressure loss and reduced flow friction.
- Compatible with Standard PVC Piping Systems for seamless integration.
- Cost-Effective & Low Maintenance, ideal for industrial, commercial, and laboratory applications.
Technical Details of PVC Transparent Cross Tee
| Parameter | Specification |
|---|---|
| Material | Transparent PVC (Polyvinyl Chloride) |
| Design Type | Four-Way Cross Tee |
| Available Sizes | ½”, ¾”, 1”, 1¼”, 1½”, 2” (custom sizes available) |
| Color | Transparent / Clear |
| Working Pressure | Typically 10–16 Bar (varies with size & temperature) |
| Temperature Range | 0°C to 60°C |
| Connection Type | Socket / Solvent Weld |
| Chemical Resistance | Excellent against acids, alkalis, and common industrial chemicals |
| Standards Compliance | ASTM, DIN, ISO (as per customer requirement) |
| Application Areas | Water treatment, laboratories, chemical processing, aquariums, food & beverage lines |
| Installation Method | Solvent cement joining |
| Surface Finish | Smooth internal and external surfaces |
| Leakage Protection | Precision-molded for tight sealing |
Customization & Processing Options
Customizations Option Available for PVC Transparent Cross Tee
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
